33

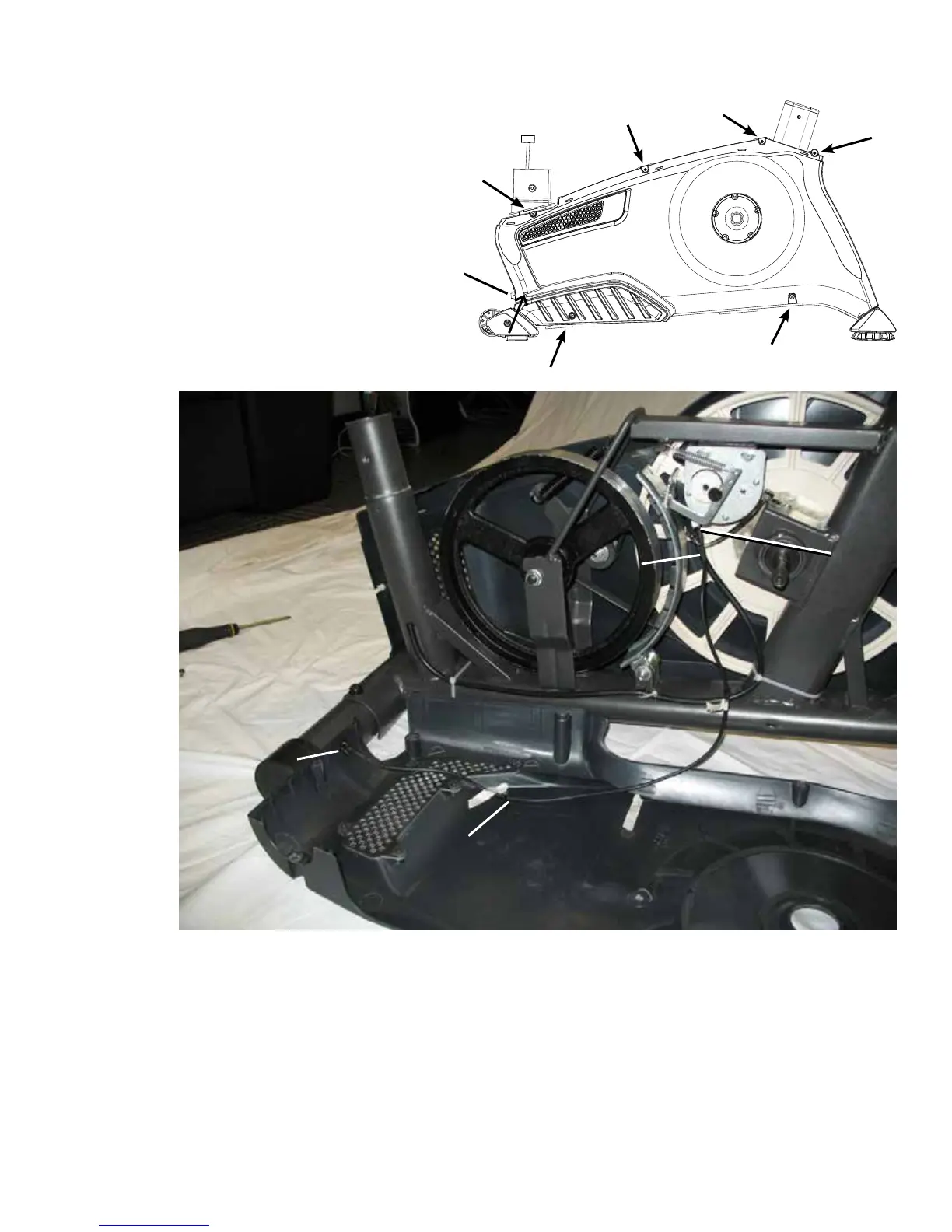

10. Using a #2 Phillips Screwdriver, remove the 6 screws
(indicated) that secure the Left Shroud. Remove the bottom
screwsrst,andthenthetopscrews.SlowlyremovetheLeft
Shroud.
Note: Find the Power Inlet (E) in the Left Shroud.
Disconnect the Power Inlet cable (E1) from the
wiring harness (F).
NOTICE: Be sure not to crimp any cables.
F
E1
E
E1
E
Power Inlet cable connection
