Appendix A: Powered Serial Port Settings

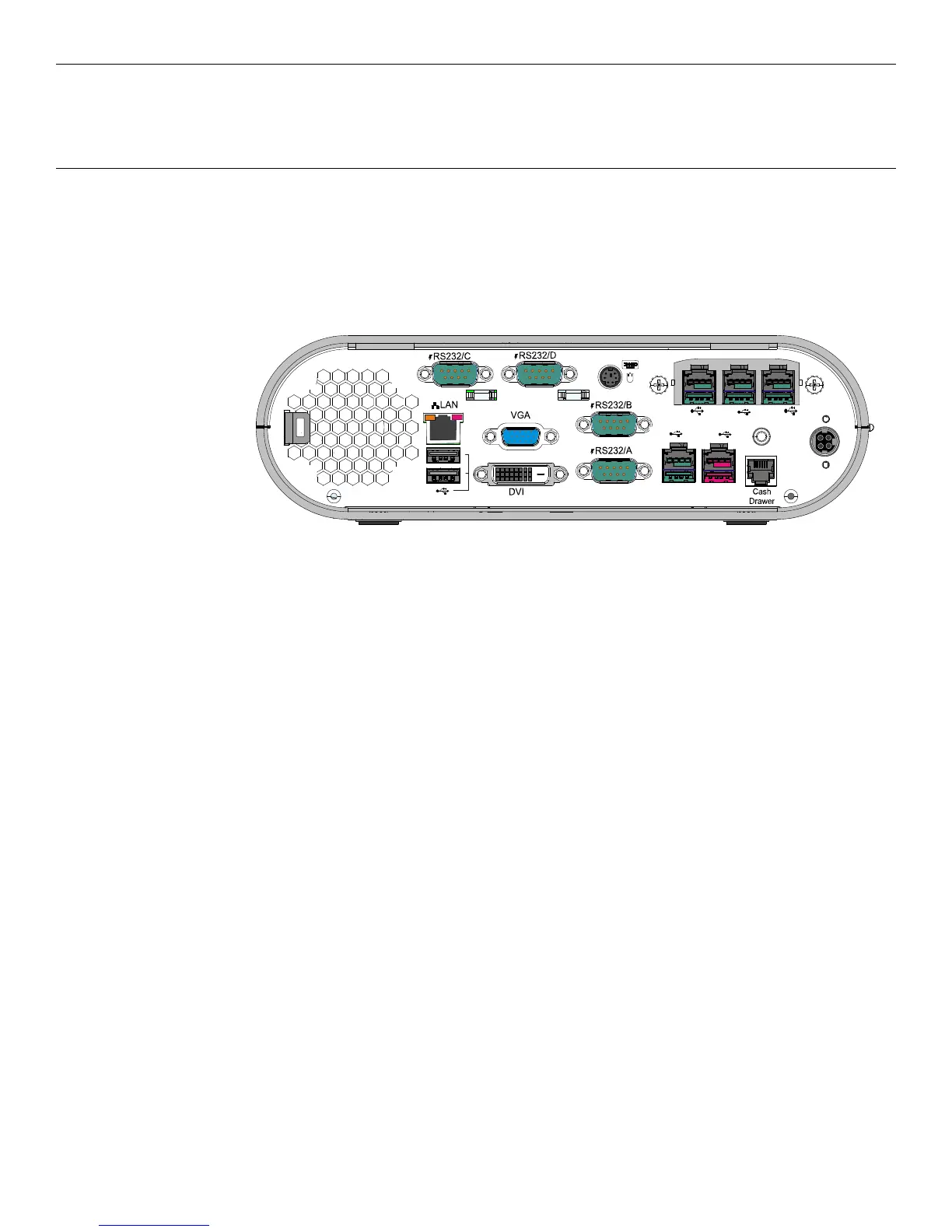

Theserialportsonthe7600canbeconfiguredaspoweredornot.Thedefaultsetting
foralltheportsis12Vpowered.TochangethesettingsopentheTopcoverand
changethejumpersontheMotherboardusingtheillustrationsbelow.
28688
12V
E
12V
F
12V
G
12V
C
24V
D
B
A
24V
