34 7603-K507 Peripheral Integration, Blk7, XR6

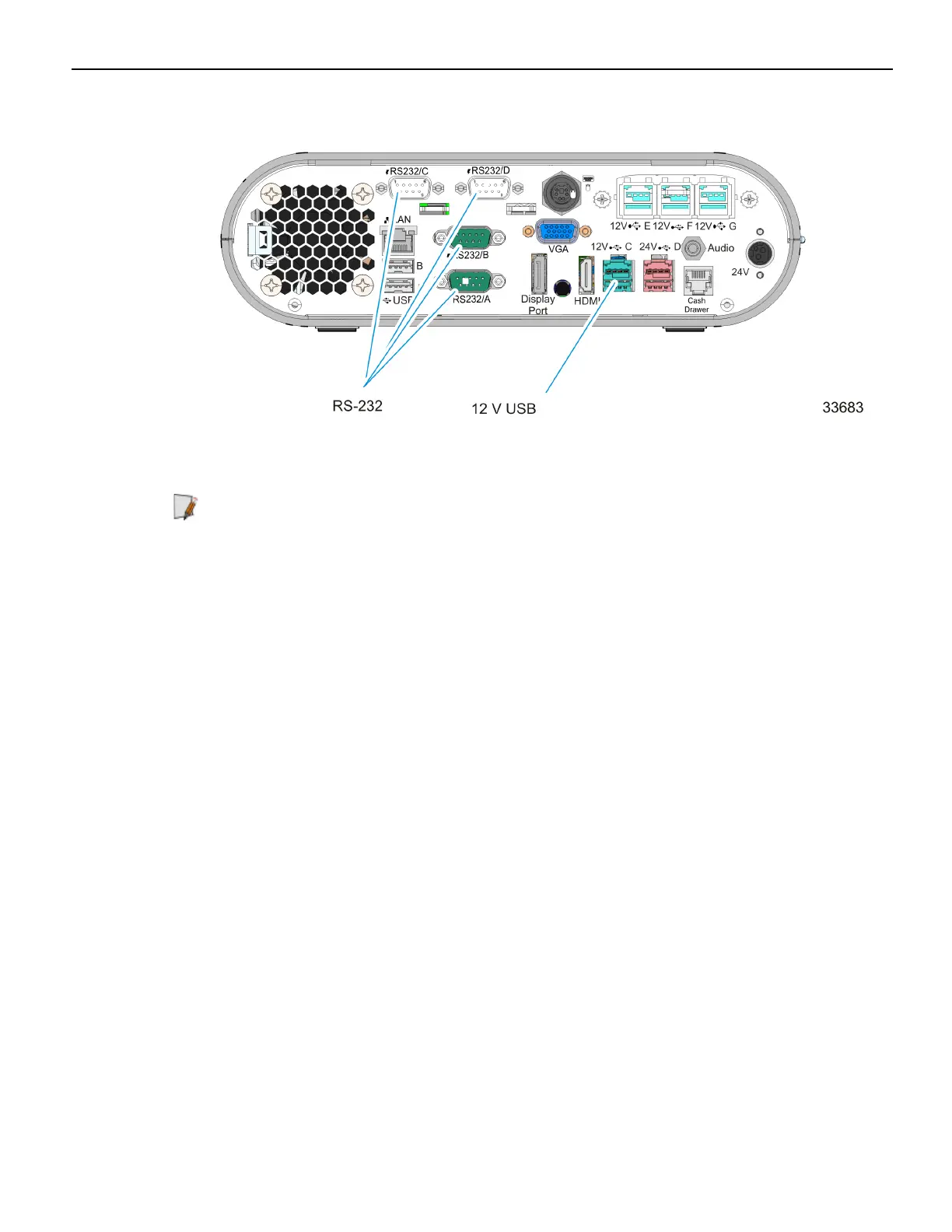

Connecting the Customer Display Cable

RS-232 Interface

Connect the I/F cable to a powered RS-232 connector on the terminal.

Note: The factory default settings for the COM1 and COM2 ports are powered by

default. To change a port to non-powered, refer to Powered Serial Port Settings in the

NCR RealPOS XR6 (7603) User Guide (B005-0000-2400).

Configure the terminal serial port as follows:

9600 baud, 8 data bits, 1 start bit, 1 stop bit, No parity

USB Interface

Connect the I/F cable to the powered 12V Powered USB connector on the terminal.
