1-14 Product Overview
Operator Displays

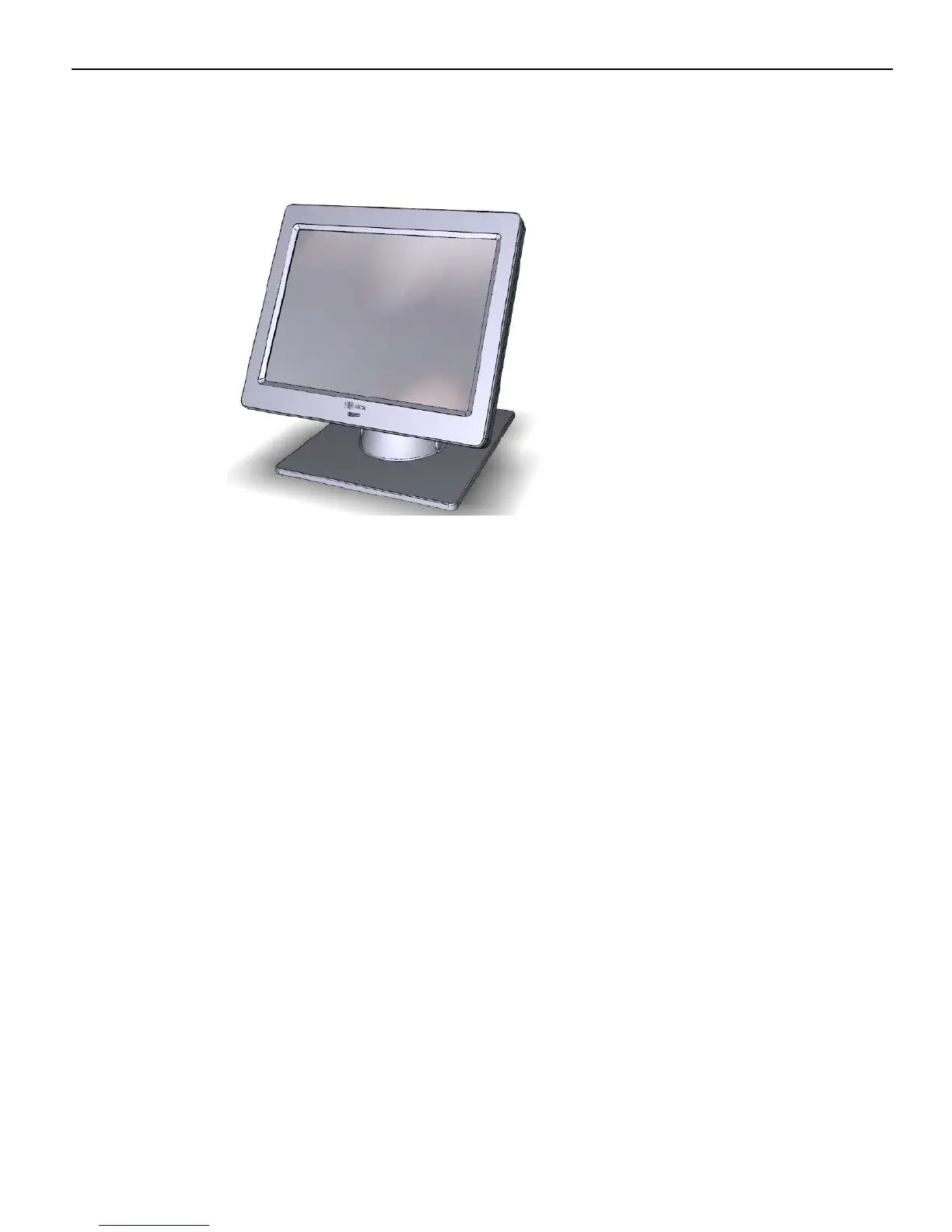

NCR 5943 12.1-Inch LCD
The NCR 5943 LCD is an LED backlit LCD display (XGA, 1024 x 768). The display is
powered by the terminal from a +12V USB Plus Power port. The remote mount must be
ordered separately.
• LCD panel
• Display Size: 12.1-inch
• LCD Technology: TFT, Pixel Configuration: RGBW Rectangle
• LCD Backlit Technology: LED-Backlit
• Native Format: 1024x768, 262,144 colors: (RGB 6bits) color depth or greater
• Viewing Direction: 12 o’clock
• 50K hour minimum backlight ½ life at rated luminance
• VESA & Industry Standards
• Retail hardened display
• Dual video inputs, standard analog (DB15) video interface and DVI interface
• No OSD controls - all SW driven
• Flexible cable length options (compatibility with NCR 1m & 4m external cables)
• Clean (hidden) cable management
• ISO 3-Track/JIS 2-Track MSR (Optional
