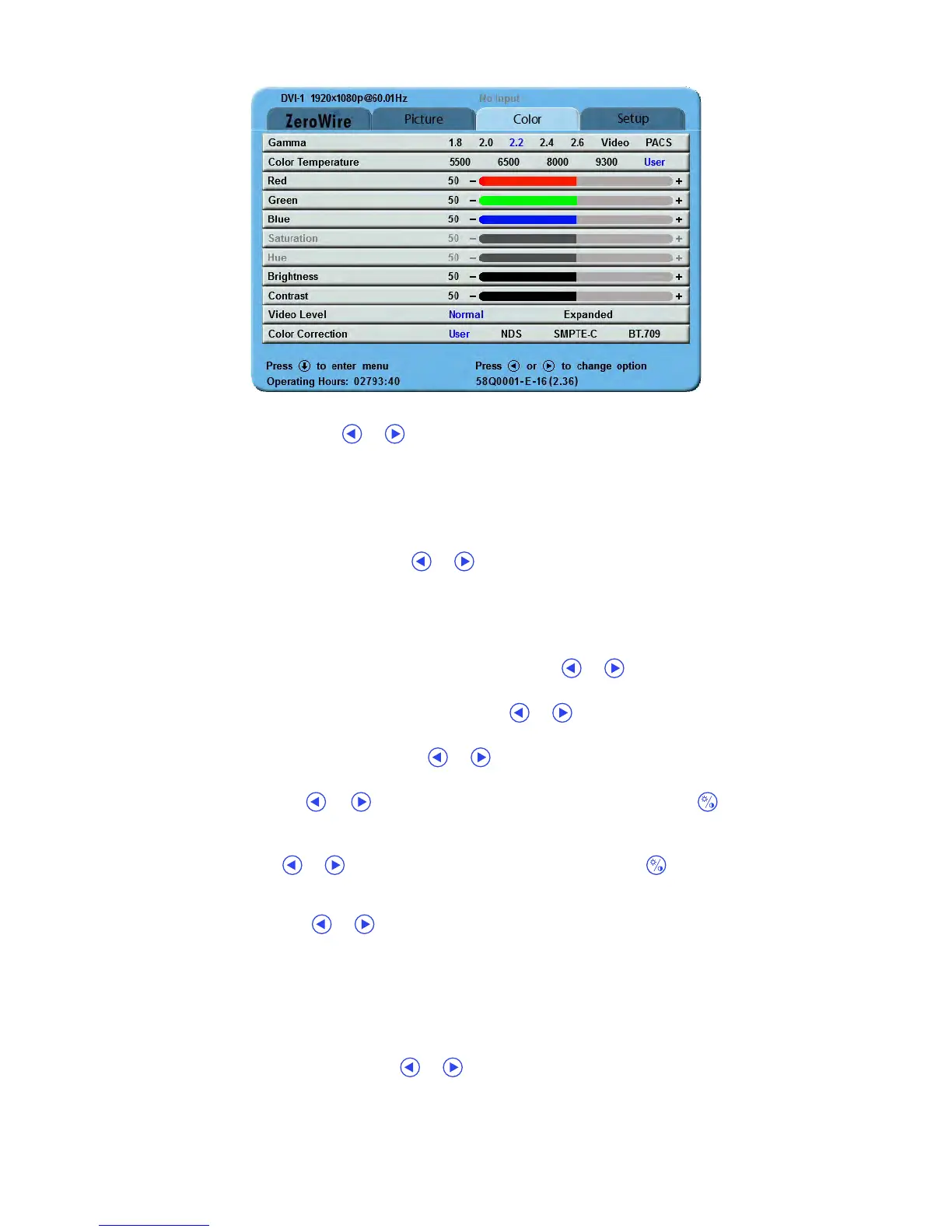

Color Menu
Gamma
To select a gamma setting, tap the or buttons.
1.8, 2.0, 2.2, 2.4 or 2.6: Preset gamma values
Video: Linear gamma Look Up Table (LUT)
PACS: DICOM gamma LUT
This product is capable of displaying Radiology (PACS) images for reference purposes only.
Color Temperature
To select a preset color temperature, tap the or buttons.
5500, 6500, 8000, 9300: Preset color temperatures.
User: If a preset color temperatures is selected, and any other parameter is subsequently changed, the
resulting values are copied to the Color Correction User presets and User is selected.
Red, Green, Blue
To increase or decrease the intensity of the selected color, tap the or buttons.
Saturation
To set the saturation (color intensity) of the image, tap the or buttons.
Hue
To set the hue (color tint) of the image, tap the or buttons.
Brightness
To adjust brightness, tap the or buttons. Brightness is also controlled by the (Brightness/Contrast)
button described on page 13.
Contrast
To adjust contrast, tap the or buttons. Contrast is also controlled by the (Brightness/Contrast) button
described on page 13.
Video Level
To adjust signal range, tap the or buttons.
Normal: Provides a dynamic range equivalent to the incoming signal with no change.
Expanded: Expands the signal level such that an input signal with range 16 (black) to 235 (white) will be
expanded to a range of 0 (black) to 255 (white).
Note: If a signal is already full range (0 to 255), selecting the Expanded setting will cause the signal to “clip” or
“saturate.”
Color Correction
To select a color correction setting, tap the or buttons.
User: Default values replaced by user modified settings.
NDS: Factory calibrated to match NDS specifications of 2.2 gamma/6500K color temperature.
SMPTE-C: Factory calibrated to meet the SPMTE-C standard.
BT-709: Factory calibrated to meet the BT-709 standard.
