NDS Radiance Ultra SERIES User Manual

ZeroWire® Embedded Technology | 29

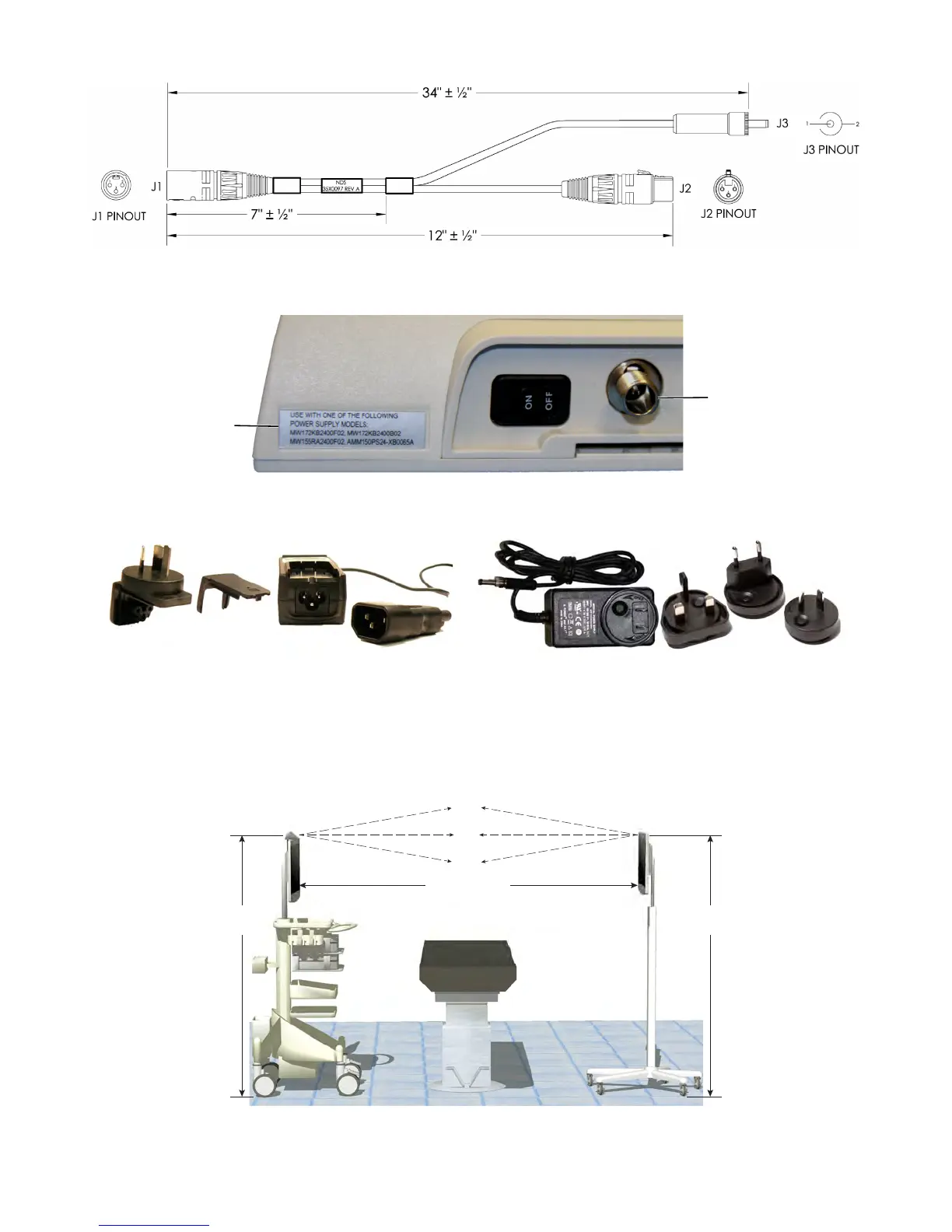

XLR ‘Y’ Adapter Cable (35X0097
ZeroWire G2 Transmitter Power Supplies
ZeroWire Transmitter and Receiver units can be directly powered with the included 24 VDC power supply.
When using a power supply, select and install the plug adapter that matches the power requirement.
Positioning and Orientation
Position the Primary Monitor with mounted ZeroWire Transmitter and the Secondary Monitor with embedded
ZeroWire Receiver at a distance of ≤ 8 feet (2.4 meters), and confirm that both displays are aligned vertically and
horizontally within 10 at heights of ≥ 5 feet (1.5 meters) as shown below.
GlobTek GTM91120-3024-T3A Ault MW172KB2400B02
J3 of the ‘Y’ adapter
or 24 VDC power
supply cable
connects here
Supported 24 VDC
power supply model
numbers
≤ 8 ft. (2.4 m)
0°
+10°
-10°
≥ 5 ft.
(1.5 m)
≥ 5 ft.
(1.5 m)
Primary Monitor
with Mounted
ZeroWire Transmitter
Secondary Monitor
with Embedded
ZeroWire Receiver
