NDS Radiance Ultra SERIES User Manual

Connector Panels Overview | 19

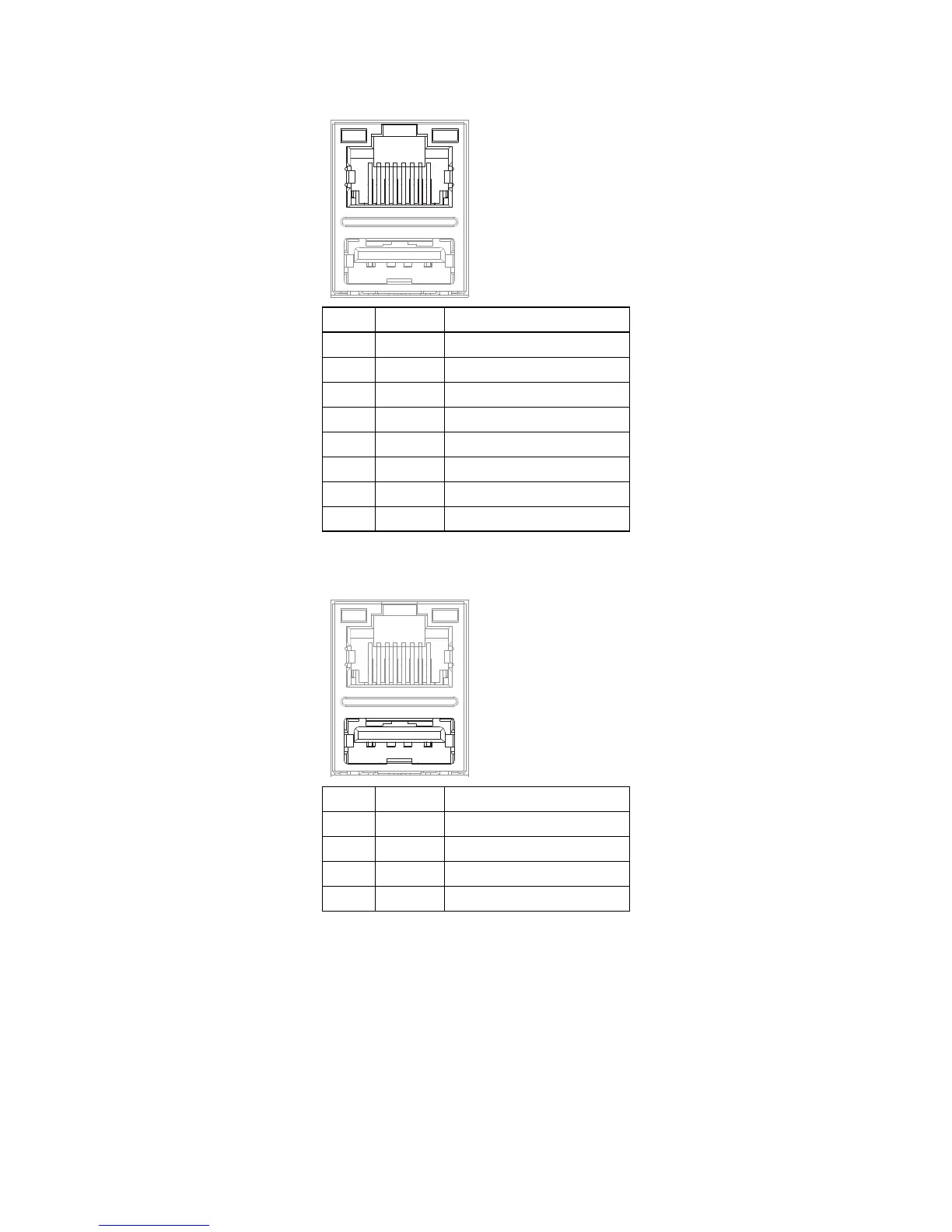

Control Connectors and Pinouts
TCP-IP
USB
Flash Upgrade Cable, part number 35Z0047, is available from NDS.
Pin Signal Description
1 TX+ No Connection
2 TX- Transmit Return
3 RX+ Receive
4 N/C No Connection
5 N/C No Connection
6 RX- Receive Return
7 N/C No Connection
8 N/C No Connection
Pin Name Description
1 VCC +5 VDC
2 D- Data Transmit Return
3 D+ Data Transmit
4 GND Ground
18
14
