Installing the Cabinet
DS2000 Hardware Manual Section 1: Installing the Cabinet ◆ 1-9
1
Removing the Cover
Before wall-mounting, remove the cover on the Main Equipment Cabinet.
To remove the cover (Figure 1-3):
1. Unscrew the two captive screws on the front of the cabinet cover.
2. Lift up slightly on the front of the cover — then gently slide the cover back to remove it.

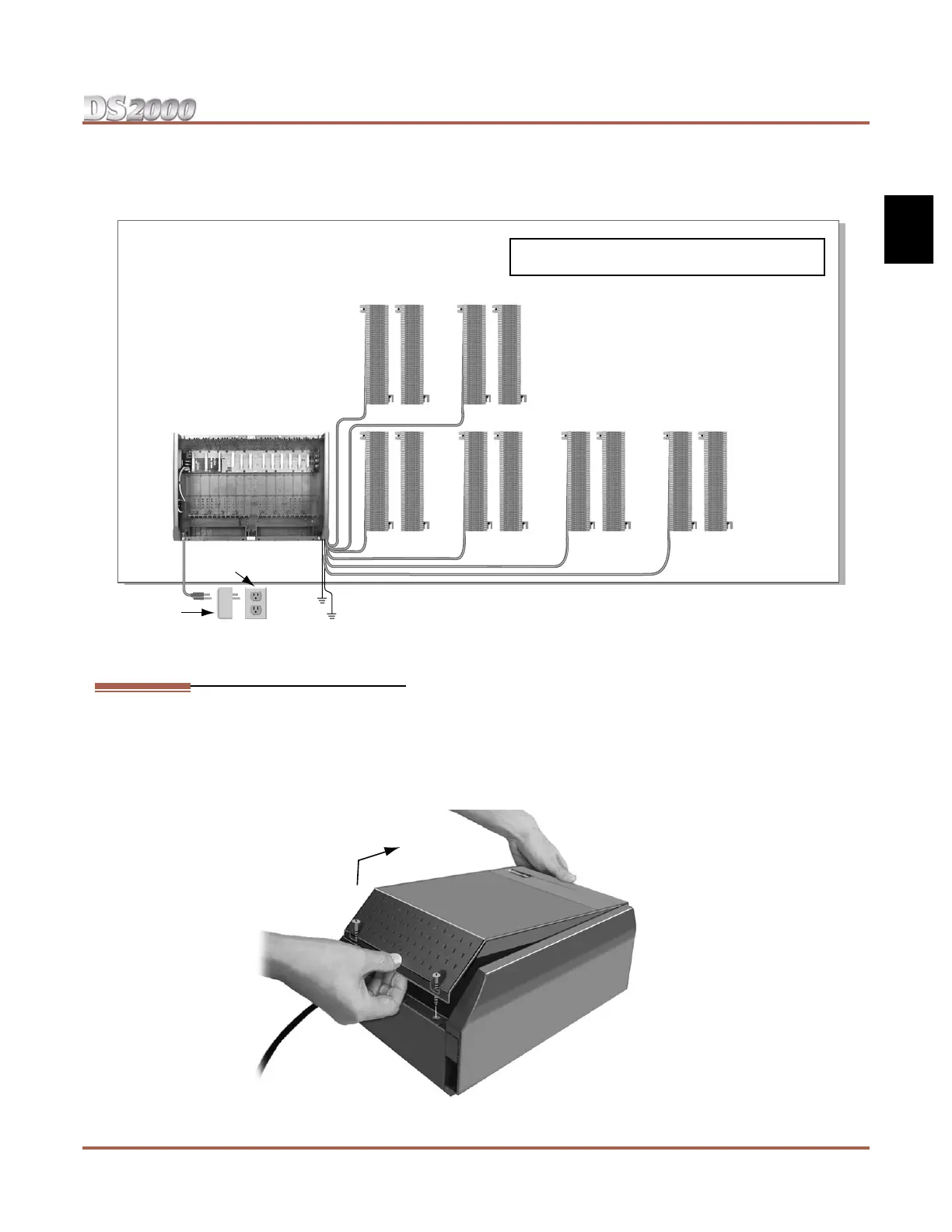

Figure 1-2: 8 Slot Cabinet Installation Layout
Figure 1-3: Removing the Cover
80000 - 61
8’ X 4’ Plywood backboard
Surge
Protector
To earth
ground
To telco
ground
Station
Blocks
Trunk
Blocks
Station
Blocks
Dedicated
AC Outlet
Note: The system will respond to telco ring signal in the
range of 40-130 VAC @ 20 Hz.
80000 - 12
4 Slot Cabinet Shown
