Installing the Cabinet
1-10 ◆ Section 1: Installing the Cabinet DS2000 Hardware Manual
Unpacking the Wall Mount Bracket
The wall mount bracket and screws (see Figure 1-4 Wall Mount Bracket below) are taped to the packing
material in the Main Equipment Cabinet box. Unpack the wall mount bracket and mounting screws.
Mounting the Wall Mount Bracket
Mount the wall mount bracket (see Figure 1-5 Mounting the Wall Mount Bracket below) on the MDF in a
convenient location, about 12” higher than where you want the bottom of the cabinet to line up.

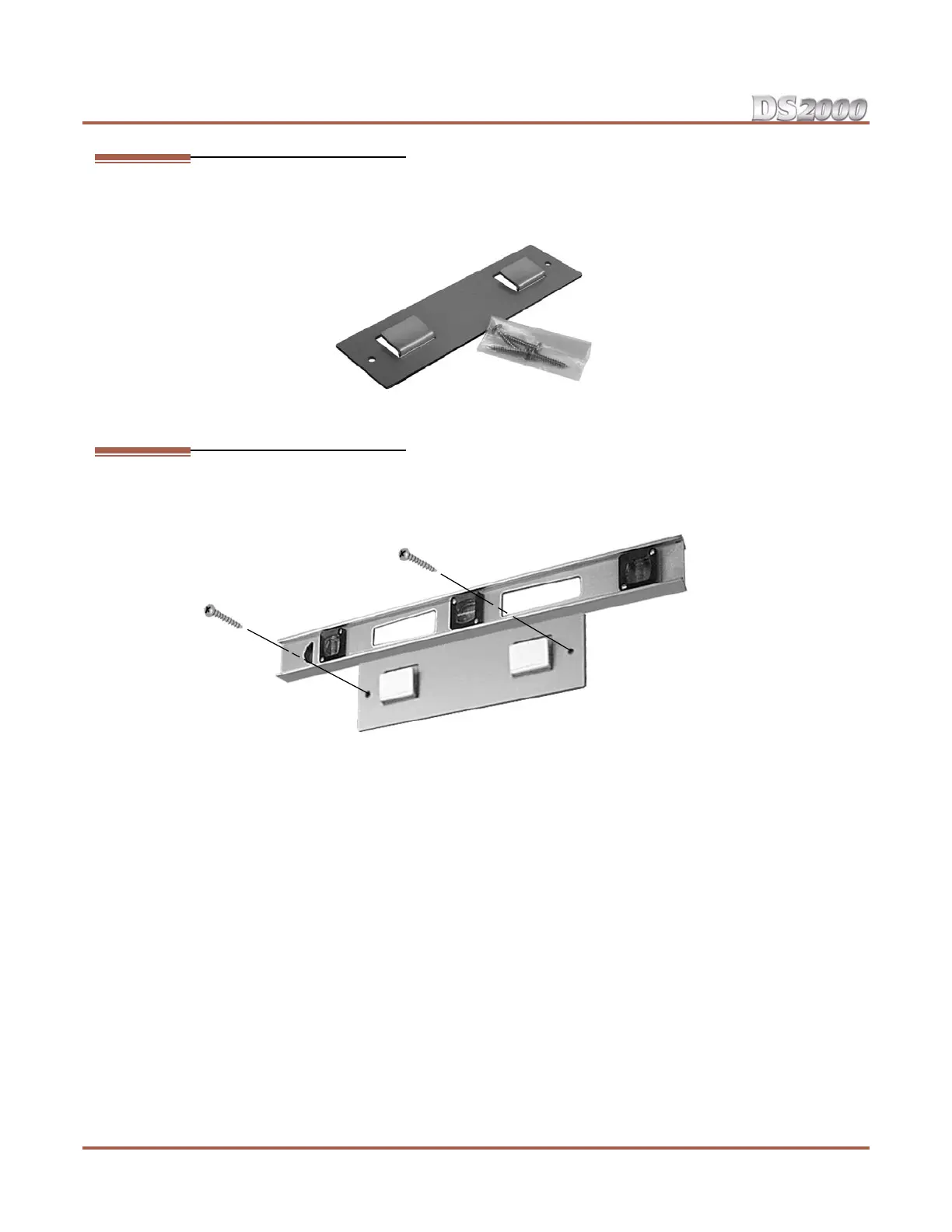

Figure 1-4: Wall Mount Bracket
Figure 1-5: Mounting the Wall Mount Bracket
