NEC DS2000 Hardware Manual

Connecting Trunks
3-2 ◆ Section 3: Installing Extensions and Trunks DS2000 Hardware Manual
Connecting Trunks
Connecting Analog Trunks
Each 8ATRU PCB connects 8 loop start CO trunks. Each 4ATRU PCB connects 4 loop start CO trunks.
To connect analog trunks (Figure 3-2):
1. Using Figure 2-13 Connecting Trunks on page 2-11 as a guide, insert the mod jacks into the appropri-
ate connector on the PCB.
2. For each trunk, run one pair cross-connect wire between the pins on the cross-connect block and the
CPE (customer side) of the telco’s RJ21X.
3. Install bridging clips as required.
Note: To connect T1 trunks, turn to T1 Trunk PCB on page 2-7.

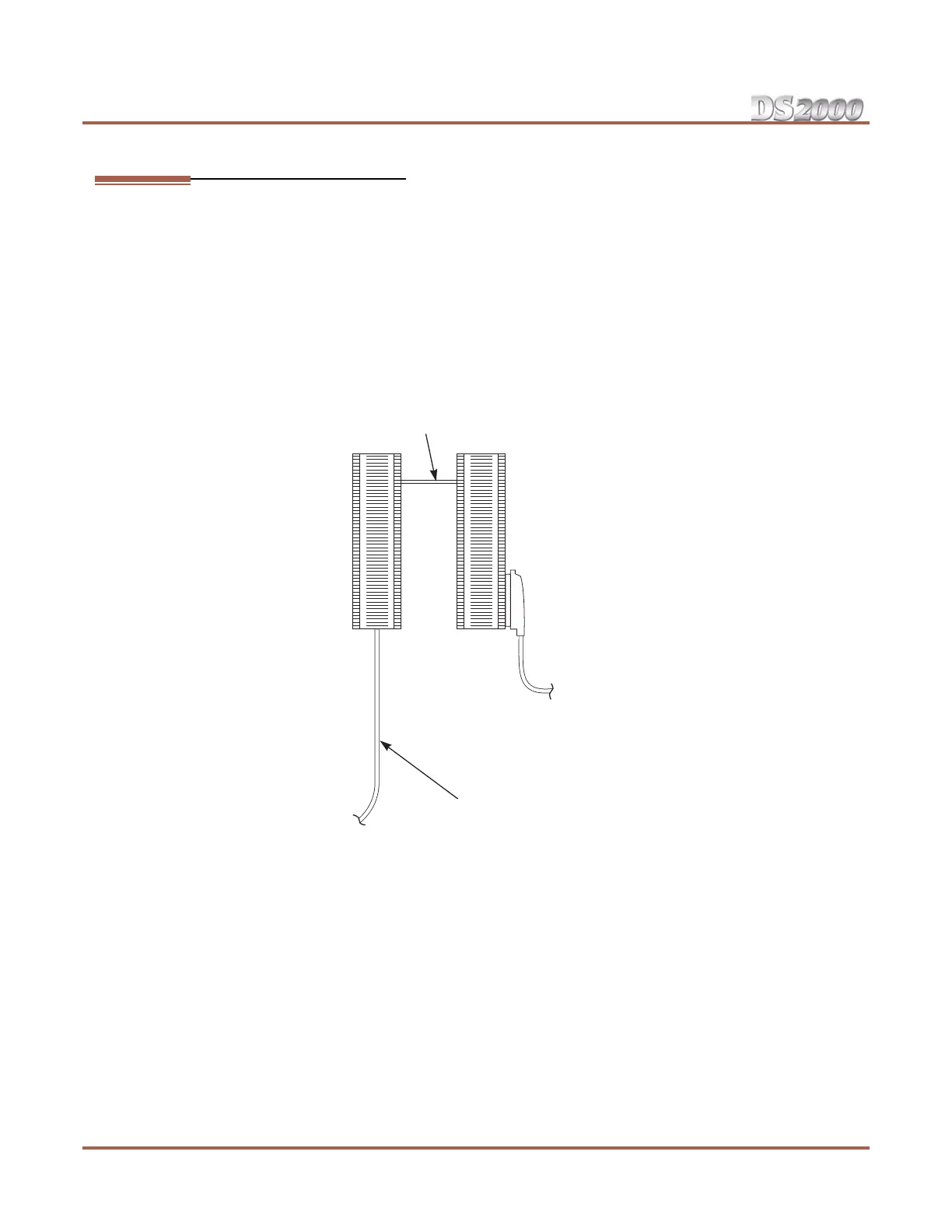

Figure 3-2: Connecting Analog Trunks
25-Pair Cable
to Central Office
25-Pair
Installation Cable
(P/N 80892)
Telco
RJ21X
One-Pair
Cross Connect
"A"
Block
80000 - 37
