SECTION 4USING SAT

When you first begin SAT End-User, all the buttons and menu items are disabled

(grayed out) – except for these menu items:

COMMUNICATIONS/CONNECT/SETUP

1. Select COMMUNICATIONS/SETUP/PC SERIAL PORT.

2. Choose the PC COM Port that is connected to the KTS. The serial cable pro-

vides a direct connection to the KTS, while a modem provides for a remote con-

nection.

3. Set up the baud rate and line settings.

4. For a direct connection, install the serial cable (provided) from the PC serial

port selected in Step 2, to COM1 on the KTS.

For a modem connection, when the KTS is at a remote location, connect a

modem to the SAT PC. See your authorized NEC Dealer for configuration of the

KTS for modem connection.

For IP connection, use the Elite LAN Programming Device connected to the

KSU. See your authorized NEC Dealer for installation of the Elite LAN PC

Programming device.

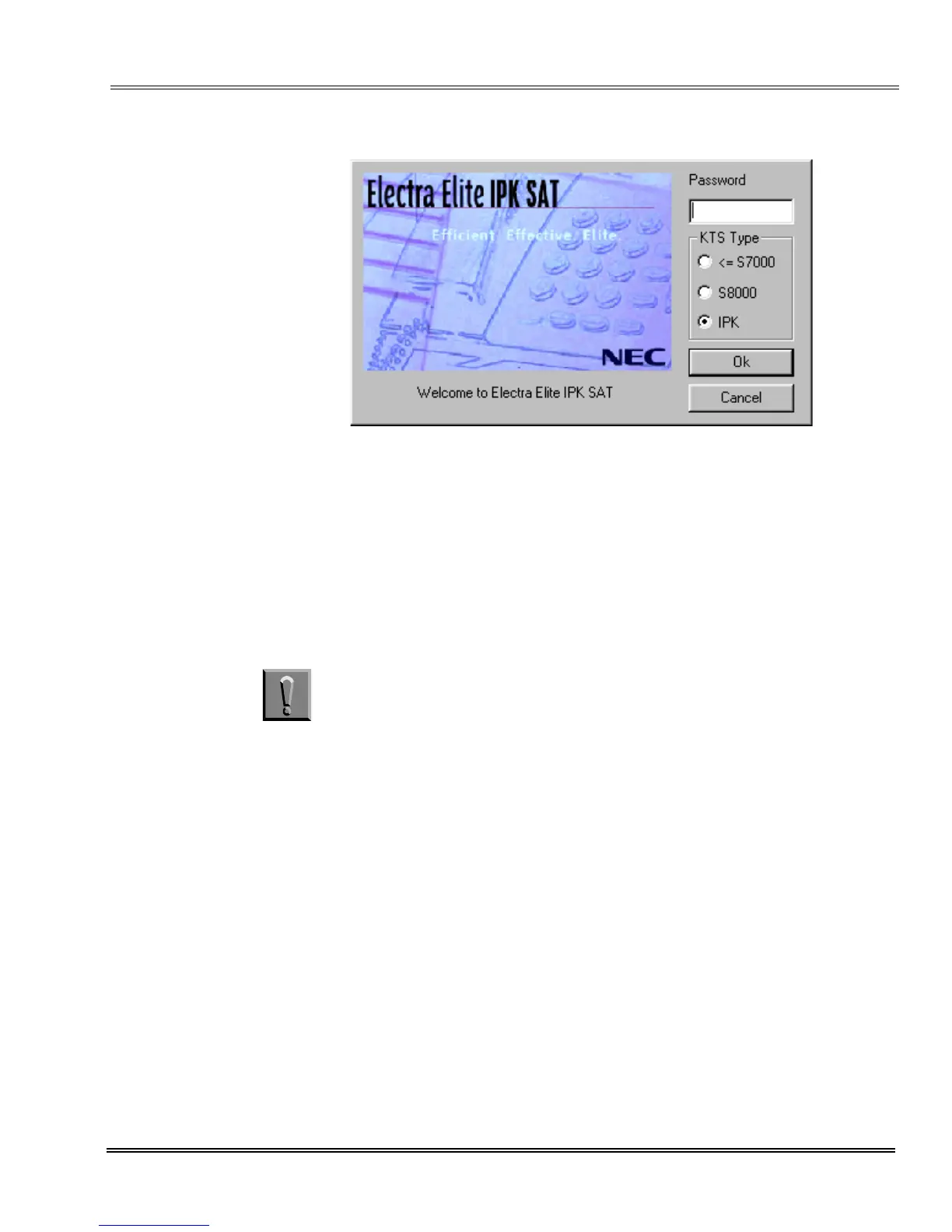

Figure 2-1 Password Screen

Important: To enable the menu items, you must first

connect to the KTS using the following procedure:
