TCP Port Number: type in the assigned TCP port that has
been assigned to the device.
If the device has been contacted previously, the IP
Address will be displayed in the drop down list under
Hostname/IP Address and the TCP port number will be
saved with the IP Address.
J
New Site
When the New Site option is selected, click the Setup button. The IP
Connection Screen will appear. This screen allows the user to
Search/Configure/Update/Ping, and Restore an Elite LAN PC
Programming Device to factory defaults.
H
Select Site: This allows the user to create a profile for each
device that can be connected to, or to Delete a profile.
H
Current Device Setting: This shows the current device’s IP
Address, Subnet Mask, Default Gateway, and TCP Port
Number. If a New Site is selected in the Select Site drop down
list, the Search option can be used to search the Network for
Elite LAN PC Programming Devices in the following Subnets:
Class C and Class B. Once the Search Button is chosen the
following screen will appear.

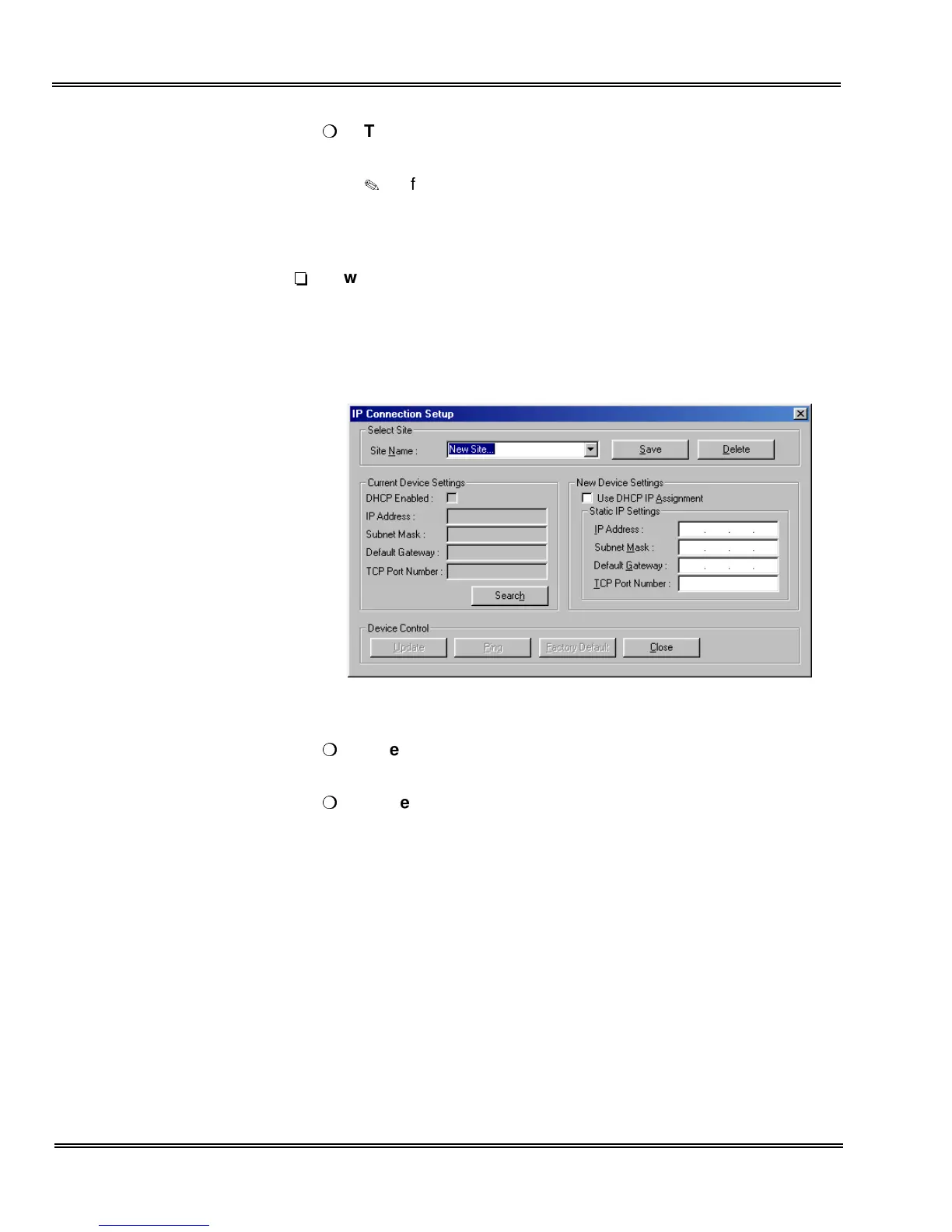

Figure 2-4 IP Connection Setup Screen
To Next Page
