For installing the GT06RLB
Preparation: Tools needed for installation:
A hexagonal driver is supplied with the optional lens.

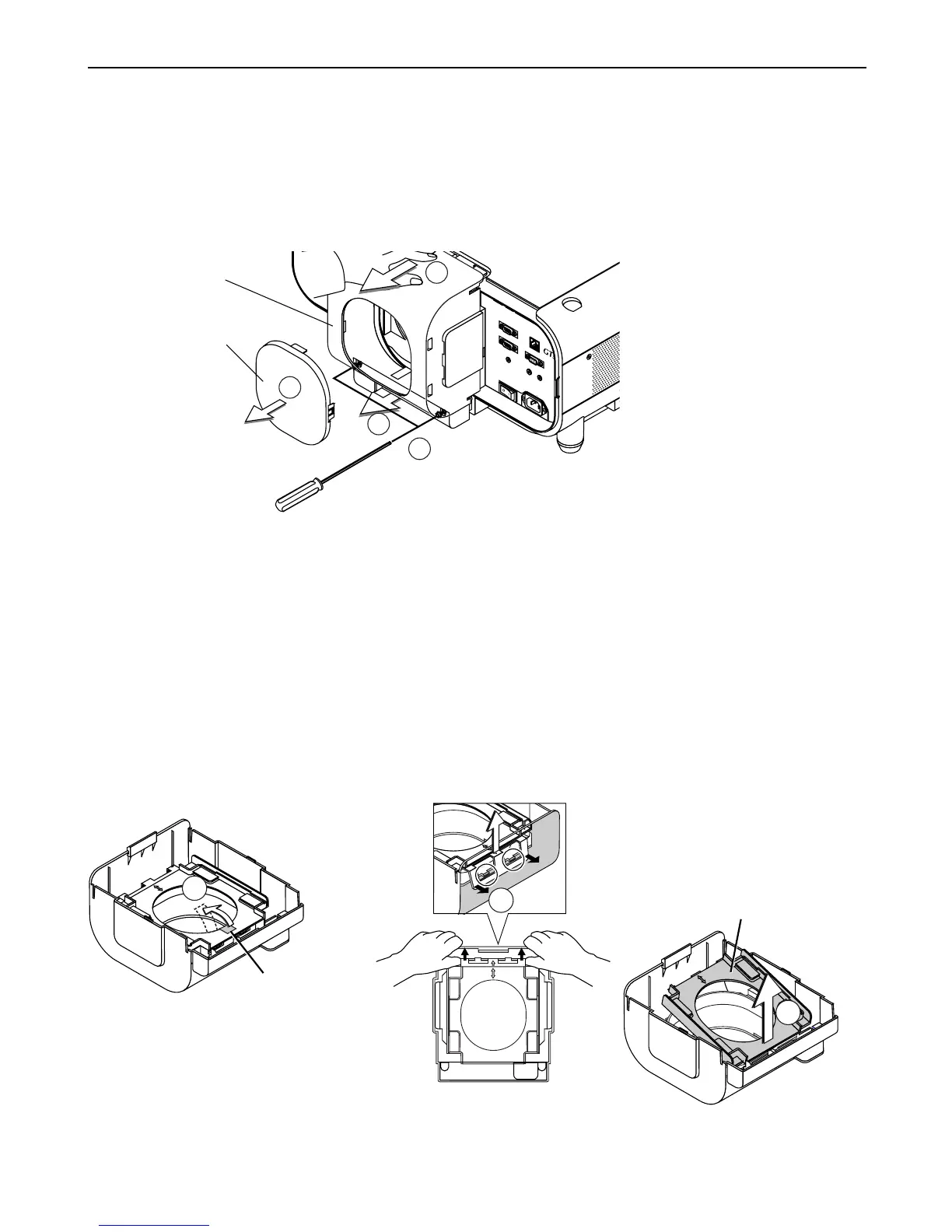

1. Remove the lens hood cap and lens hood.
q Remove the lens hood cap.
w Loosen and remove the 2 screws on the lens hood using the hexagonal driver.
e Remove the lens hood by pushing down and pulling the top toward you.
PC C
AR
D
PC
C
ONTROL
IN
IN
OU
T
OU
T
SC TR
IGGER
R
EM
OTE 2
REM
OT
E 1
LAN
AC IN
USB
(
MOU
SE/HUB
)
USB
(
PC
)
2
1
B
/Cb
V
H/
HV
R
L/MONO
R
L/MONO
-V
ID
E
O
1
2
3
3
Lens hood
Lens hood cap
2. Remove the dust-protective plate.
q Remove the shipping tape on the back of the lens hood.
w Pull on the portion of the dust-protective plate hooked at the two locations at the same time.
e Remove the dust-protective plate from the lens hood.
1
Shipping tape
2. Installation
2
3
Dust-protective plate
To Next Page
