English-10
1. Determine the installation location
CAUTION
Installing your LCD display must be done by a qualified technician.
Contact your dealer for more information.
CAUTION
MOVING OR INSTALLING THE LCD MONITOR MUST BE DONE BY
TWO OR MORE PEOPLE. Failure to follow this caution may result
in injury if the LCD monitor falls.
CAUTION
Do not mount or operate the display upside down, face up, or face
down.
CAUTION
This LCD has a temperature sensor and cooling fan. If the LCD be
-
comes too hot, the cooling fan will turn on automatically. If the LCD
becomes overheated while the cooling fan is running, the “Caution”
menu will appear. If the “Caution” menu appears, discontinue use
and allow the unit to cool. Using the cooling fan will reduce the
likelihood of “Image Persistence”.
If the LCD is used in an enclosed area or if the LCD panel is covered
with a protective screen, please check the inside temperature of
the monitor by using the “HEAT STATUS” control in the OSM (see
page 27). If the temperature is higher than the normal operating
temperature, please turn the cooling fan to ON within the SCREEN
SAVER menu within the OSM (see page 24).
IMPORTANT
Lay the protective sheet, which was wrapped around the LCD moni
-
tor when it was packaged, beneath the LCD monitor so as not to
scratch the panel.
2. Install the remote control batteries
The remote control is powered by 1.5V AA batteries. To install or
replace batteries:
1. Press and slide to open the cover.
2. Align the batteries according to the (+) and (–) indications inside
the case.
3. Replace the cover.
CAUTION
Incorrect usage of batteries can result in leaks or bursting. NEC
recommends the following battery use:
• Place “AA” size batteries matching the + and - signs on each
battery to the + and - signs of the battery compartment.
• Do not mix battery brands.
• Do not combine new and old batteries. This can shorten battery
life or cause liquid leakage of batteries.
• Remove dead batteries immediately to prevent battery acid from
leaking into the battery compartment. Don’t touch exposed bat
-
tery acid, it can damage to your skin.
NOTE: If you do not intend to use the Remote Control for a
long period of time, remove the batteries.
3. Connect external equipment (See pages 12-17)
• To protect the external equipment, turn off the main power before
making connections.
• Refer to your equipment user manual for further information.
Setup Procedure

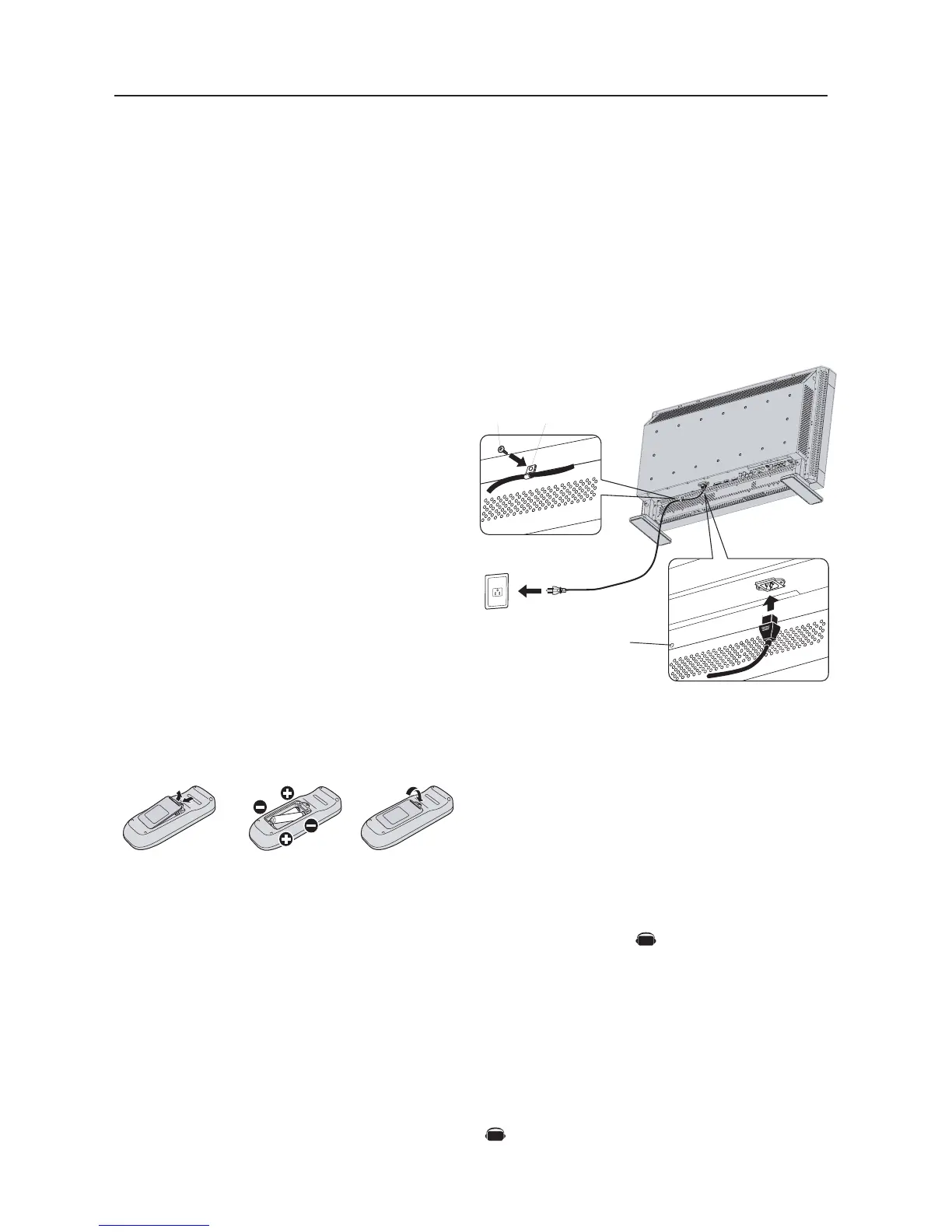

4. Connect the supplied power cord
• The equipment should be installed close to an easily accessible
power outlet.
• Please attach power cord to the LCD monitor by attaching the
screw and clamper.
• Fully insert the prongs into the power outlet socket. Loose con-
nection may cause image degradation.
NOTE: If you use this monitor at AC 220 - 240V, please
refer to “Safety Precautions, Maintenance & Recommended
Use” section of this manual for proper selection of AC power
cord.
5. Switch on the power of all the attached
external equipment
When connected with a computer, switch on the power of the
computer first.
6. Operate the attached external equipment
Display the signal from the desired input source.
7. Adjust the sound
Make volume adjustments as required.
8. Adjust the screen (See pages 20-28)
Make adjustments of the screen display position when necessary.
9. Adjust the image (See pages 20-28)
Make adjustments such as brightness or contrast when required.
Screw hole for clamper
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
To Next Page
