NEC MultiSync LCD3210 User Manual

English-27
English

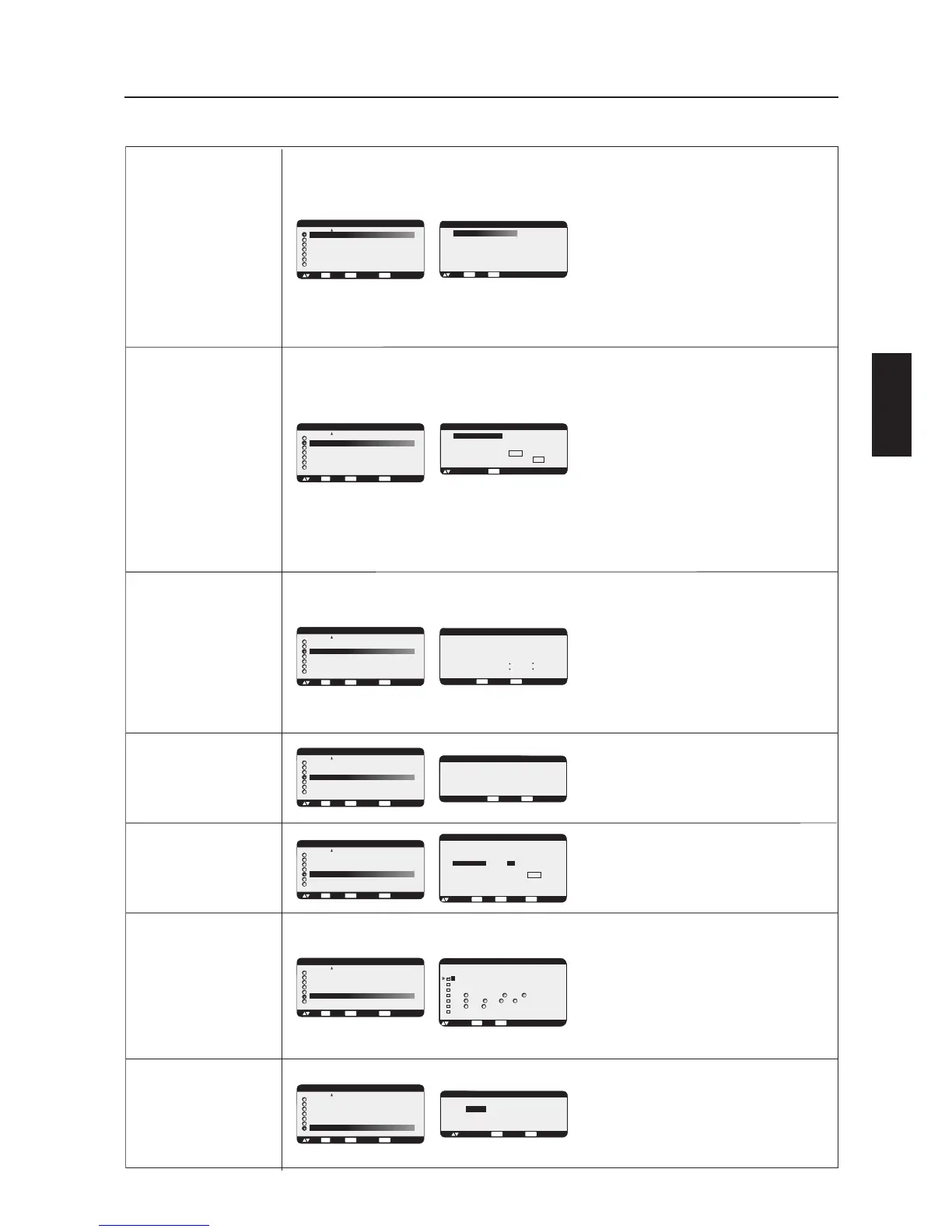

OSM Controls-Advanced option
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED
OPTION RESET
Adjusts the delay time from "standby" to "power on"
mode.
"POWER ON DELAY" can be set between
0 and 50 sec.
Sets the current date and time for internal clock.
You should set this function, when you use "SCHEDULE".
The "TILE MATRIX" feature allows one image to be
displayed on multiple screens. This feature can be used
with up to 16 monitors. (4 horizontal x 4 vertical)
Using the Tile Matrix function requires the PC output
signal to be sent through a distribution amplifier to each
individual monitor.
H MONITORS: Selects the number of horizontal displays.
V MONITORS: Selects the number of vertical displays.
POSITION: Selects a position to expand the screen.
TILE COMP: Works in tandem with "TILE MATRIX" to
compensate for the width of the tiled bezels in order to
accurately display the image.
ENABLE: Select "YES", to expand the signal to the
selected settings.
PIP and DYNAMIC zoom mode will be disabled when the
"TILE MATRIX" is activated.
Displays status of COOLING FAN, BRIGHTNESS and
TEMPERATURE.
COOLING FAN activates when the inside temperature
exceeds highest recommended operating temperature
BRIGHTNESS decreases when inside temperature
exceeds highest recommended operating temperature
with cooling fan running. In this case a warning is
displayed on the screen.
Programs the monitor's working schedule.
Sets the hour and day of the week when the monitor
powers on or off. Also sets the input port.
Select "EXIT" to set schedule.
(see "NOTE 2" on page 28 for further information)
Selecting ADVANCED OPTION RESET allows you to
reset all OSM settings from the ADVANCED OPTION
settings, except for DATE & TIME, and SCHEDULE.
Select "YES" and press "SET" button to restore the
factory preset data.
Press "EXIT" button to cancel and then return the
previous menu.
Selects the infra-red wireless remote controllers mode.
The item in this menu will become effective by pressing
"SET" button on the selected item.
NORMAL: The monitor will be controlled normally by
wireless remote controller.
LOCK: Disable the monitor control by infra-red wireless
remote controller.
Keep pressing "DISPLAY" button for 5 or more seconds,
this setting will return to "NORMAL".
See "NOTE 2" on page 28
EXIT
SET
:RETURN:SET
IR CONTROL
:SEL
NORMAL
LOCK
EXIT
:RETURN
MENU
:EXIT MENU
POWER ON DELAY
3 SEC.
ADVANCED OPTION
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
ADVANCED OPTION
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
ADVANCED OPTION
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
ADVANCED OPTION
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
ADVANCED OPTION
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
ADVANCED OPTION
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
ADVANCED OPTION
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
ADVANCED OPTION RESET
EXIT
:RETURN
MENU
:EXIT MENU
NO
YES
:SEL
HEAT STATUS
COOLING FAN1 ON
COOLING FAN2 ON
BRIGHTNESS NORMAL
TEMPERATURE
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
DATE & TIME
:SEL
YEAR
MONTH
DAY
TIME
DAYLIGHT SAVING YES / NO
CURRENT DATE TIME
JAN. 01. 2004 00 : 00 : 00
2004
JANUARY
01
00
: 00
:SET
+ -:ADJ
SET
EXIT
:RETURN
MENU
:EXIT MENU
DATE & TIME
:SEL
YEAR
MONTH
DAY
HOUR
MINUTE
DAYLIGHT SAVING YES / NO
CURRENT DATE TIME
JAN. 01. 2004 00 : 00 : 00
2004
JANUARY
01
00
00
:SET
+ -:ADJ
SET
EXIT
:RETURN
:SEL
:SET
+ -:ADJ
SET
EXIT
:RETURN
:SEL
:SET
+ -:ADJ
SET
SCHEDULE
TODA Y 2005. 4. 15 F RI 15: 11
ON OFF INP UT
2 08:30 17:15 RGN1
3
4 EVERY DAY M ON TUE
5 WED THU FR I SAT
6 SUN EVERY WE EK
7
1
EXIT
:RETURN
:SEL
H MONITORS
V MONITORS
POSITION
TILE COMP
ENABLE
1
1
1
YES / NO
YES / NO
SENSOR 1 0.0 C / 32.0 F
SENSOR 2 0.0 C / 32.0 F
TILE MATRIX
+ -:ADJ

NEC MultiSync LCD3210 Specifications

General

I/O ports	1 x D-sub 15 pin in/out 5 x BNC 1 x Cinch out 2 x Cinch in
Pixel pitch	0.511 x 0.511 mm
Power requirements	100-120 V/220-240 V; 1.4 A/0.6 A
Vertical scan range	58 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Headphone connectivity	3.5 mm
Operating relative humidity (H-H)	20 - 80 %
Response time	18 ms
Display diagonal	32 \
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	800 mm
Contrast ratio (typical)	600:1
Display number of colors	16.78 million colors
Operating temperature (T-T)	5 - 40 °C
Certification	CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; Ro
RS-232 ports	1
Product color	Silver
Panel mounting interface	600 x 200 mm
Power consumption (typical)	110 W
RMS rated power	14 W
Number of speakers	2

Weight and Dimensions

Depth (with stand)	200 mm
Width (with stand)	789 mm
Height (with stand)	510.3 mm
Weight (with stand)	16400 g
Depth (without stand)	140 mm
Height (without stand)	479 mm
Weight (without stand)	15200 g
