NEC MultiSync LCD3210 User Manual

English-20

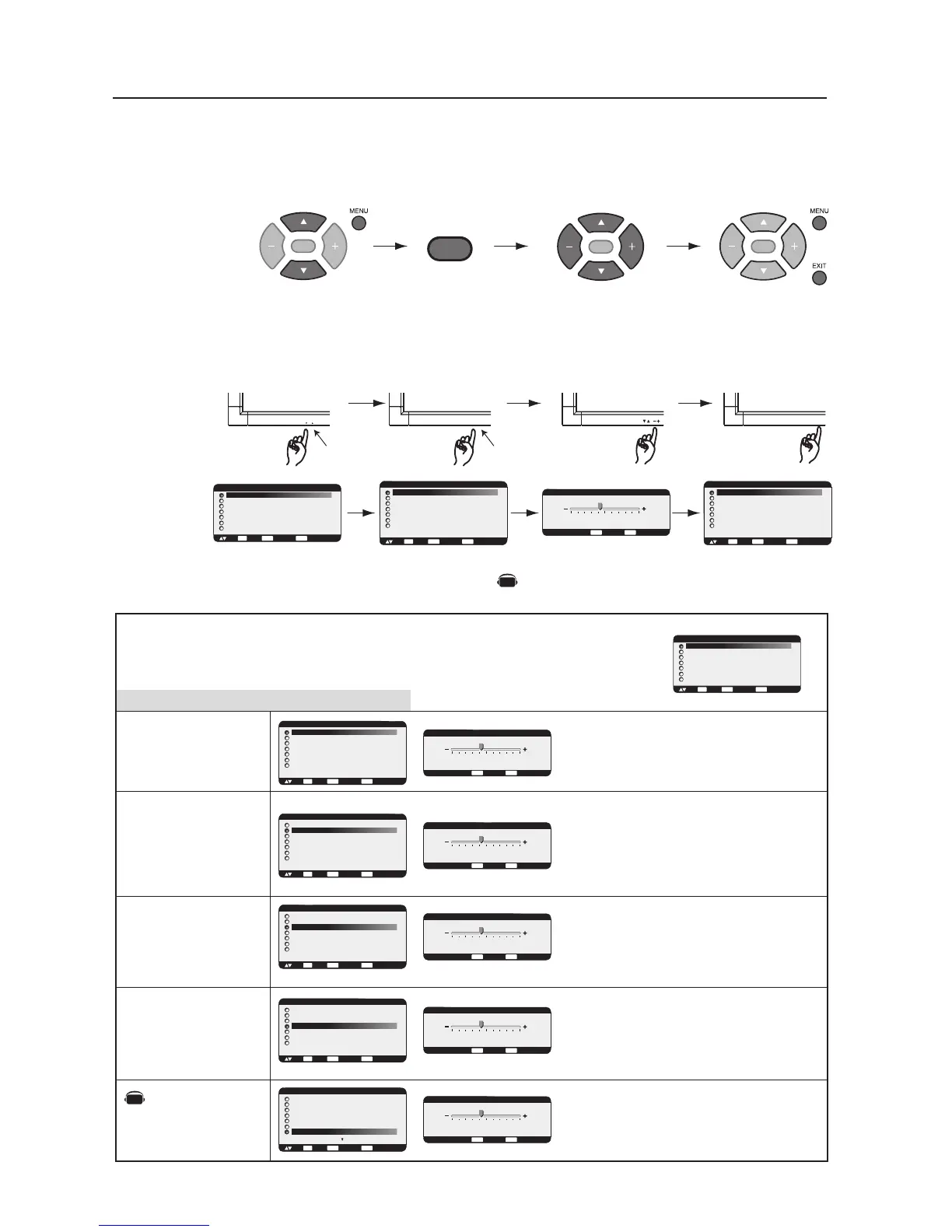

OSM (On-Screen Manager) Controls-Picture
SET
SET
Press MENU button to open
Main-menu
Press UP or DOWN button
to select sub-menu
Press UP or DOWN button to
select
INPUT button
Press the UP, DOWN, PLUS, or
MINUS buttons to select options
and to make adjustments to
settings
Press INPUT button to select
Press INPUT button to
decide
Press EXIT button to
exit
SET
Press the UP, DOWN, PLUS, or
MINUS buttons to select options
and to make adjustments to
settings
Press SET button to select
Press SET button to
decide
Sub-Menu
Main-Menu
Remote Control
Control Panel
OSM screen
Adjusts the overall image and background screen
brightness.
Press + button to increase brightness.
Press - button to decrease brightness.
Adjusts the image brightness in relation to the input
signal.
Press + button to increase contrast.
Press - button to decrease contrast.
NOTE: sRGB picture mode is standard and cannot be
changed.
Adjusts the crispness of what is displayed on the
screen. Can be set to get a distinct (sharp) image or a
soft image as is preferred. Set independently for each
Picture Mode.
Press + button to increase sharpness.
Press - button to decrease sharpness.
Adjusts the image brightness in relation to the
background.
Press + button to increase black level.
Press - button to decrease black level.
NOTE: sRGB picture mode is standard and cannot be
changed.
INPUT
EXIT
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
NOISE REDUCTION
*:INPUT VIDEO
and DVD/HD only
UP or DOWN button
Press MENU or EXIT
button to exit
SET
Adjusts the noise reduction level.
Press + button to increase reduction level.
Press - button to decrease reduction level.
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION
2
ADVANCED OPTIO
N
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION 2
ADVANCED OPTION
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
32
BRIGHTNESS
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
32
BRIGHTNESS
CONTRAST
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
32
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
32
SHARPNESS
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
32
BLACK LEVEL
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
COLOR
BLACK LEVEL
NOISE REDUCTION
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
32
NOISE REDUCTION
NOTE: Items in this OSM menu may change depending on connection type and with the AV unit installed.
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
AV
AV

NEC MultiSync LCD3210 Specifications

General

I/O ports	1 x D-sub 15 pin in/out 5 x BNC 1 x Cinch out 2 x Cinch in
Pixel pitch	0.511 x 0.511 mm
Power requirements	100-120 V/220-240 V; 1.4 A/0.6 A
Vertical scan range	58 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Headphone connectivity	3.5 mm
Operating relative humidity (H-H)	20 - 80 %
Response time	18 ms
Display diagonal	32 \
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	800 mm
Contrast ratio (typical)	600:1
Display number of colors	16.78 million colors
Operating temperature (T-T)	5 - 40 °C
Certification	CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; Ro
RS-232 ports	1
Product color	Silver
Panel mounting interface	600 x 200 mm
Power consumption (typical)	110 W
RMS rated power	14 W
Number of speakers	2

Weight and Dimensions

Depth (with stand)	200 mm
Width (with stand)	789 mm
Height (with stand)	510.3 mm
Weight (with stand)	16400 g
Depth (without stand)	140 mm
Height (without stand)	479 mm
Weight (without stand)	15200 g
