NEC MultiSync LCD3210 User Manual

English-6
Control Panel
DOWN ( ) button
Activates the OSM menu when the OSM menu is turned-off.
Acts as button to move the highlighted area down to select the
adjustment with OSM menu.
EXIT button
Activates the OSM menu when the OSM menu is turned-off.
Acts as EXIT button to move to previous menu in the OSM menu.
Remote control sensor and Power indicator
Receives the signal from the remote control (when using the wire-
less remote control). See page 9.
Glows green when the LCD monitor is in active mode and glows
red when the LCD is in POWER OFF mode. When the LCD is in
power save mode, it will glow both green and red. When SCHED-
ULE is enabled, it will blink green and glow red. See page 19.
When a component failure is detected within the monitor, it will
blink red.
Main Power Switch
Seesaw Switch for the main power on/off.
Control Key Lock Mode
This control completely locks out access to all Control Key func-
tions.
To activate the control key lock function, press both “ “ and
“ “ simultaneously and hold down for three (3) seconds.
To go back to user mode, press both “ “ and “ “ simultane-
ously and hold for three (3) seconds.
POWER button ( )
Switches the power on/off. See page 18.
MUTE button
Switches the audio mute ON/OFF.
INPUT button
Acts as SET button within the OSM menu.
Selects which signal connected to the display is shown. (Toggle
switches between [RGB1], [RGB2], [RGB3], [DVD/HD], or
[VIDEO].)
[DVD/HD] and [VIDEO] inputs are enabled when the AV-unit
option is installed.
PLUS (+) button
Acts as (+) button to increase the adjustment with OSM menu.
Increases the audio output level when the OSM menu is turned
off.
MINUS (-) button
Acts as (-) button to decrease the adjustment with OSM menu.
Decreases the audio output level when the OSM menu is turned
off.
UP ( ) button
Activates the OSM menu when the OSM menu is turned-off.
Acts as button to move the highlighted area up to select the
adjustment with OSM menu.

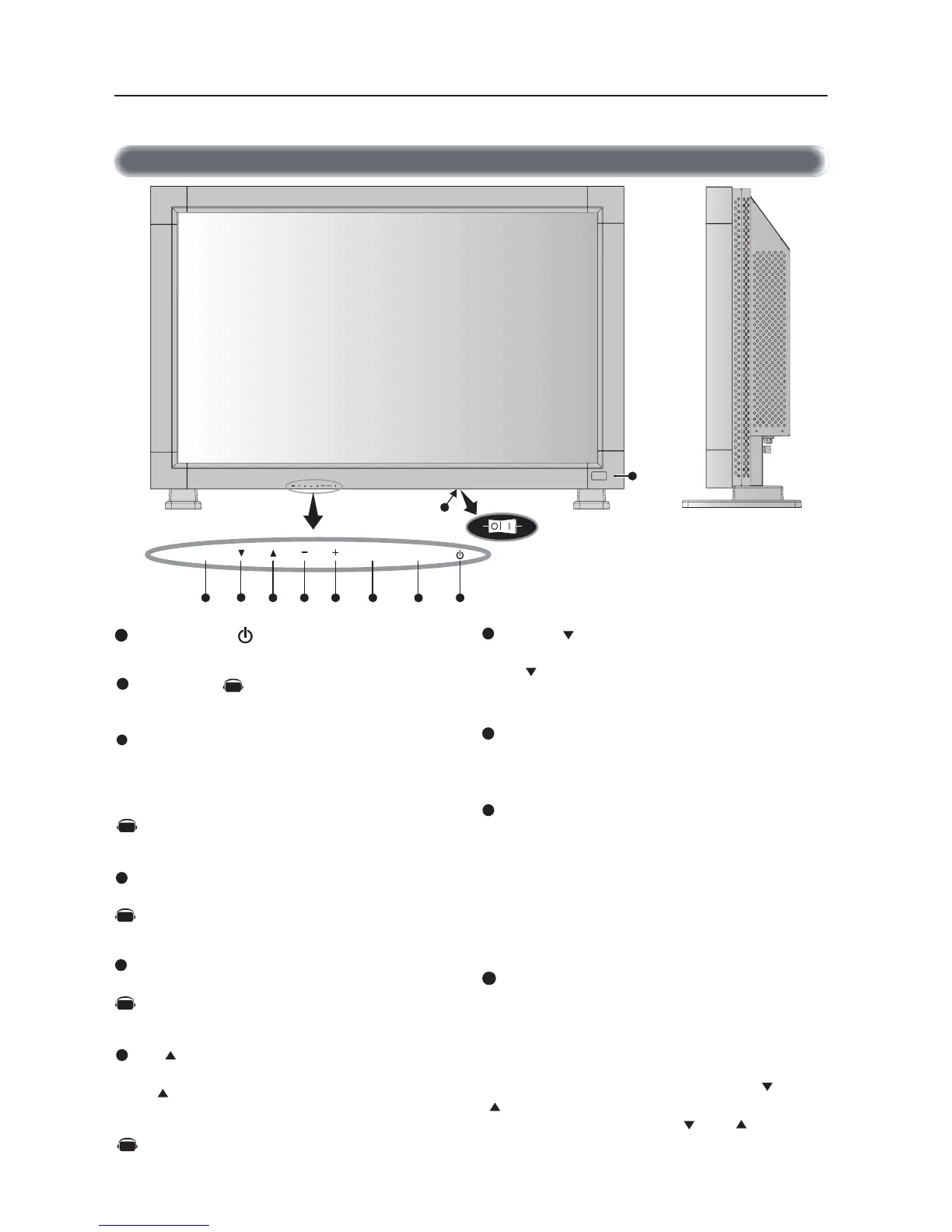

Parts Name and Functions
Button Location
1
2
4
5
6
7
8
9
10
8
1
2
3
4
5
6
7
EXIT MUTE
INPUT
9
10
ONOFF
AV
AV
AV
AV
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
AV
3

NEC MultiSync LCD3210 Specifications

General

I/O ports	1 x D-sub 15 pin in/out 5 x BNC 1 x Cinch out 2 x Cinch in
Pixel pitch	0.511 x 0.511 mm
Power requirements	100-120 V/220-240 V; 1.4 A/0.6 A
Vertical scan range	58 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Headphone connectivity	3.5 mm
Operating relative humidity (H-H)	20 - 80 %
Response time	18 ms
Display diagonal	32 \
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	800 mm
Contrast ratio (typical)	600:1
Display number of colors	16.78 million colors
Operating temperature (T-T)	5 - 40 °C
Certification	CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; Ro
RS-232 ports	1
Product color	Silver
Panel mounting interface	600 x 200 mm
Power consumption (typical)	110 W
RMS rated power	14 W
Number of speakers	2

Weight and Dimensions

Depth (with stand)	200 mm
Width (with stand)	789 mm
Height (with stand)	510.3 mm
Weight (with stand)	16400 g
Depth (without stand)	140 mm
Height (without stand)	479 mm
Weight (without stand)	15200 g
