NEC MultiSync LCD3210 User Manual

English-8

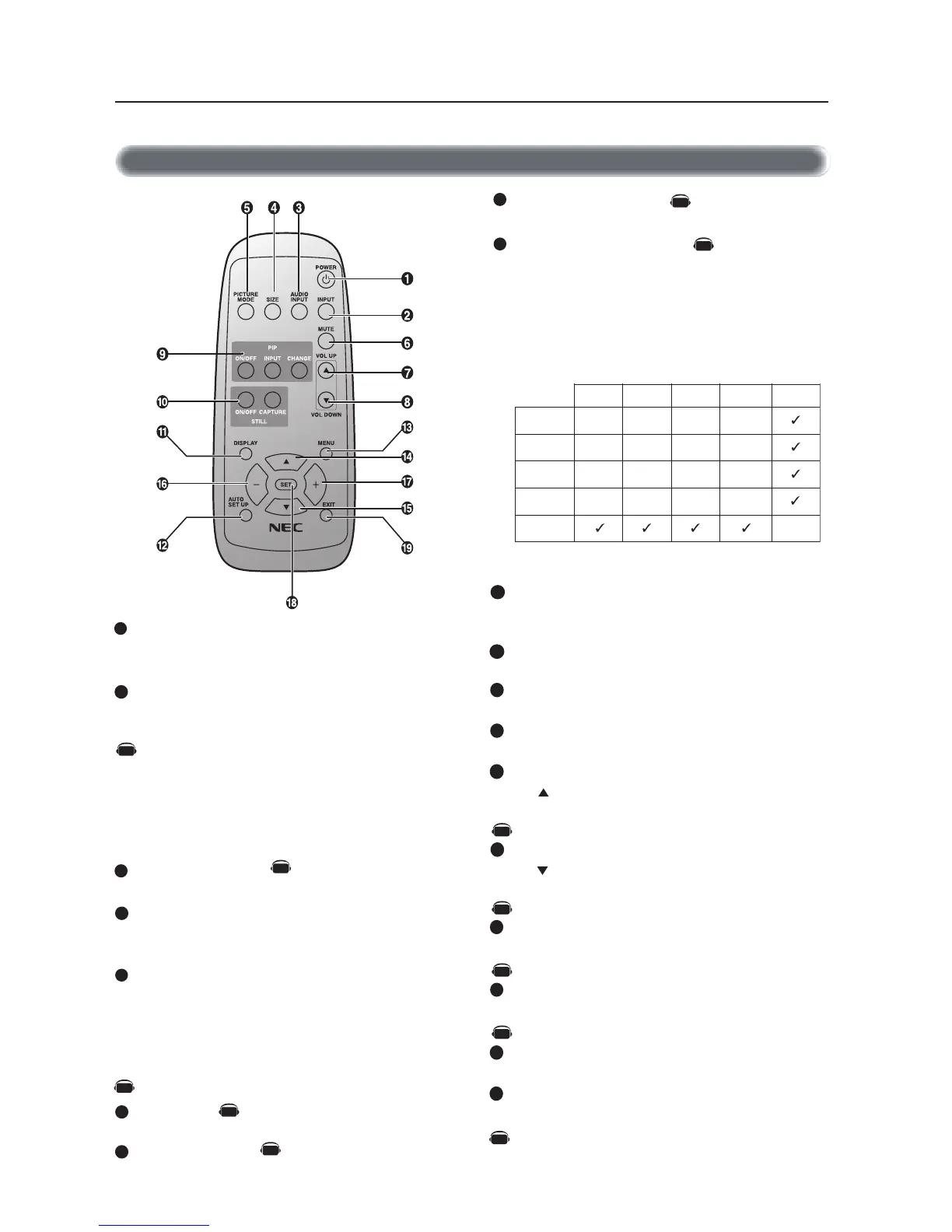

Wireless Remote Control
POWER button
Switches the power on/off.
* If Power Indicator is not glowing, then no controls will work.
INPUT button
Selects from input signal, [RGB1], [RGB2], [RGB3], [DVD/HD],
[VIDEO] and [VIDEO<S>].
[DVD/HD], [VIDEO] and [VIDEO<S>] inputs can be selected
when the AV optional module is installed.
[VIDEO<S>] is enabled by selecting the “SEPARATE” mode
in the OSM or by having the “S VIDEO” cable connected
with the “S VIDEO” signal present and selecting “PRIORITY”
MODE”. See page 26.
AUDIO INPUT button
Selects from input audio signal, [AUDIO1], [AUDIO2], [AUDIO3]
SIZE button
Selects picture size, [FULL], [NORMAL], [WIDE] and [ZOOM].
See page 19.
PICTURE MODE button
Selects from picture mode, [HIGHBRIGHT], [STANDARD],
[sRGB], [CINEMA]. See page 19.
HIGHBRIGHT: for moving image such as DVD
STANDARD: for images (Shipping condition)
sRGB: for text based images
CINEMA: for movies.
MUTE button
To turn on/off the mute function.
VOLUME UP button
Increase the audio output level.
VOLUME DOWN button
Decrease the audio output level.
PIP (Picture In Picture) button
ON/OFF button: PIP ON/OFF.
INPUT button: Select the ‘picture in picture’ input signal.
CHANGE button: Replaces to the main picture and sub
picture.
STILL button
ON/OFF button: To turn on/off the still picture mode.
CAPTURE button: Update the still picture.
DISPLAY button
To turn on/off the Information OSM. See page 19.
AUTO SETUP button
To enter the auto setup menu. See page 23.
MENU button
To turn on/off the menu mode.
UP button
Acts as button to move the highlighted area up to select the
adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves up.
DOWN button
Acts as button to move the highlighted area down to select
the adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves down.
MINUS button decrease
Acts as (-) button to decrease the adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves left.
PLUS button increase
Acts as (+) button to increase the adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves right.
SET button
Acts as SET button with OSM menu.
EXIT button
Turn to previous menu with OSM menu.
Parts Name and Functions -continued
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
RGB3 DVD/HD VIDEO
1BGR
_ _ _
2BGR
_ _ _
3BGR
_ _ _
_ _ _
DH/DVD
_
_
_
_
OEDIV
Sub Picture
Main Picture
Note: The aspect ratio of PIP synchronizes with a setup in the Main Picture.
RGB2RGB1
_
AV
AV
AV
AV
AV
AV
AV
AV
AV
AV
AV
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
AV
REMOTE CONTROLLER RU-M104

NEC MultiSync LCD3210 Specifications

General

I/O ports	1 x D-sub 15 pin in/out 5 x BNC 1 x Cinch out 2 x Cinch in
Pixel pitch	0.511 x 0.511 mm
Power requirements	100-120 V/220-240 V; 1.4 A/0.6 A
Vertical scan range	58 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Headphone connectivity	3.5 mm
Operating relative humidity (H-H)	20 - 80 %
Response time	18 ms
Display diagonal	32 \
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	800 mm
Contrast ratio (typical)	600:1
Display number of colors	16.78 million colors
Operating temperature (T-T)	5 - 40 °C
Certification	CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; Ro
RS-232 ports	1
Product color	Silver
Panel mounting interface	600 x 200 mm
Power consumption (typical)	110 W
RMS rated power	14 W
Number of speakers	2

Weight and Dimensions

Depth (with stand)	200 mm
Width (with stand)	789 mm
Height (with stand)	510.3 mm
Weight (with stand)	16400 g
Depth (without stand)	140 mm
Height (without stand)	479 mm
Weight (without stand)	15200 g
