NEC MultiSync LCD3210 User Manual

English-21
English

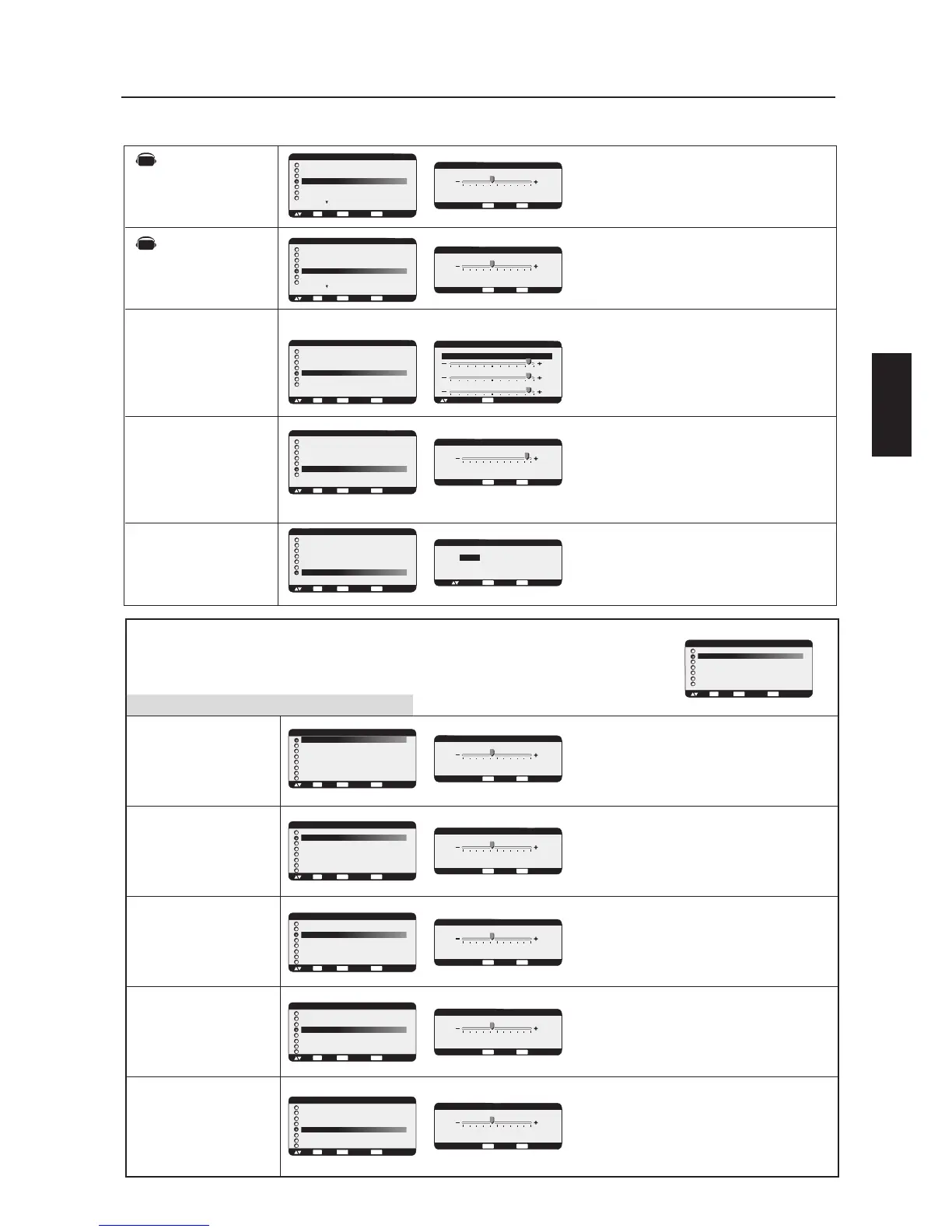

OSM Controls-Screen
Adjusts the color temperature of entire screen.
Choosing a lower color temperature will make the
screen reddish and a higher color temperature make
the screen bluish.
NOTE: sRGB picture mode is standard and cannot be
changed.
Selecting Picture Reset allows you to reset all OSM
settings within the PICTURE menu.
Select "YES" and press "SET" button to restore the
factory settings.
Press "EXIT" button to cancel and Press "EXIT" again to
return the previous menu.
TINT
COLOR
COLOR CONTROL
COLOR
TEMPERATURE
PICTURE RESET
R, G, B : Increases or decreases Red, Green, Blue depending
upon which is selected. The change in color will appear on
screen and the direction (increase or decrease) will be shown
by the color bars.
NOTE: sRGB picture mode is standard and cannot be
changed.
*:INPUT DVD/HD,VIDEO
only
*:INPUT DVD/HD,VIDEO
only
Adjusts the tint of the screen.
Press + button the flesh tone color becomes greenish.
Press - button the flesh tone color becomes purplish.
Adjusts the color depth of the screen.
Press + button to increase color depth.
Press - button to decrease color depth.
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
Sub-Menu
Main-Menu
Controls Horizontal Image position within the display
area of the LCD.
Press + button to move screen to right.
Press - button to move screen to left.
Controls Vertical Image position within the display
area of the LCD.
Press + button to move screen to UP.
Press - button to move screen to DOWN.
Press + button to expand the width of the image on the
screen to the right.
Press - button to narrow the width of the image on the
screen to the left.
Adjusts the visual snow noise on the image.
Adjusts the horizontal size by increasing or decreasing
the setting.
Press + button to expand the width of the image on the
screen.
Press - button to narrow the width of the image on the
screen.
SCREEN
*:INPUT RGB2/3 only
*:INPUT RGB2/3 and
DVD/HD only
*:INPUT RGB1/2/3 only
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
COLOR
BLACK LEVEL
NOISE REDUCTION
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
32
TINT
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
COLOR
BLACK LEVEL
NOISE REDUCTION
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
32
COLOR
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
9600K
COLOR TEMPERATURE
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION
1
CONFIGURATION 2
ADVANCED OPTIO
N
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
0
H POSITION
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
0
V POSITION
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
1782
CLOCK
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
18
CLOCK PHASE
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
1360
H RESOLUTION
*:INPUT RGB1,2,3 only
+ -:ADJ
EXIT
:RETURN
COLOR CONTROL
255
:SEL
PICTURE RESET
EXIT
:RETURN
MENU
:EXIT MENU
NO
YES
:SEL
RED
255
GREEN
255
BLUE
AV
AV

NEC MultiSync LCD3210 Specifications

General

I/O ports	1 x D-sub 15 pin in/out 5 x BNC 1 x Cinch out 2 x Cinch in
Pixel pitch	0.511 x 0.511 mm
Power requirements	100-120 V/220-240 V; 1.4 A/0.6 A
Vertical scan range	58 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
Headphone connectivity	3.5 mm
Operating relative humidity (H-H)	20 - 80 %
Response time	18 ms
Display diagonal	32 \
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	800 mm
Contrast ratio (typical)	600:1
Display number of colors	16.78 million colors
Operating temperature (T-T)	5 - 40 °C
Certification	CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; Ro
RS-232 ports	1
Product color	Silver
Panel mounting interface	600 x 200 mm
Power consumption (typical)	110 W
RMS rated power	14 W
Number of speakers	2

Weight and Dimensions

Depth (with stand)	200 mm
Width (with stand)	789 mm
Height (with stand)	510.3 mm
Weight (with stand)	16400 g
Depth (without stand)	140 mm
Height (without stand)	479 mm
Weight (without stand)	15200 g
