Connecting your Macintosh

computer to your LCD monitor will enable you to display your computer’s screen image. Some video cards

or drivers may not display images correctly.

•

For older Macintosh

computers, use Macintosh cable adapter to connect to your Macintosh’s video port.

• To connect the RGB 3 IN connector (BNC) on the LCD monitor, use the signal cable available separately (mini D-sub 15 pin to

BNC x 5).

• Refer to your Macintosh’s owner’s manual for more information about your computer’s video output requirements and any special

identiﬁcation or conﬁguring that may be required.

• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.

Connecting to a Macintosh

�

Computer

Connections -ontinued

To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the provided RGB signal cable (mini D-sub 15 pin

to mini D-sub 15 pin).

Denotes an AV unit function.

All AV functions are enabled when the AV unit is installed.

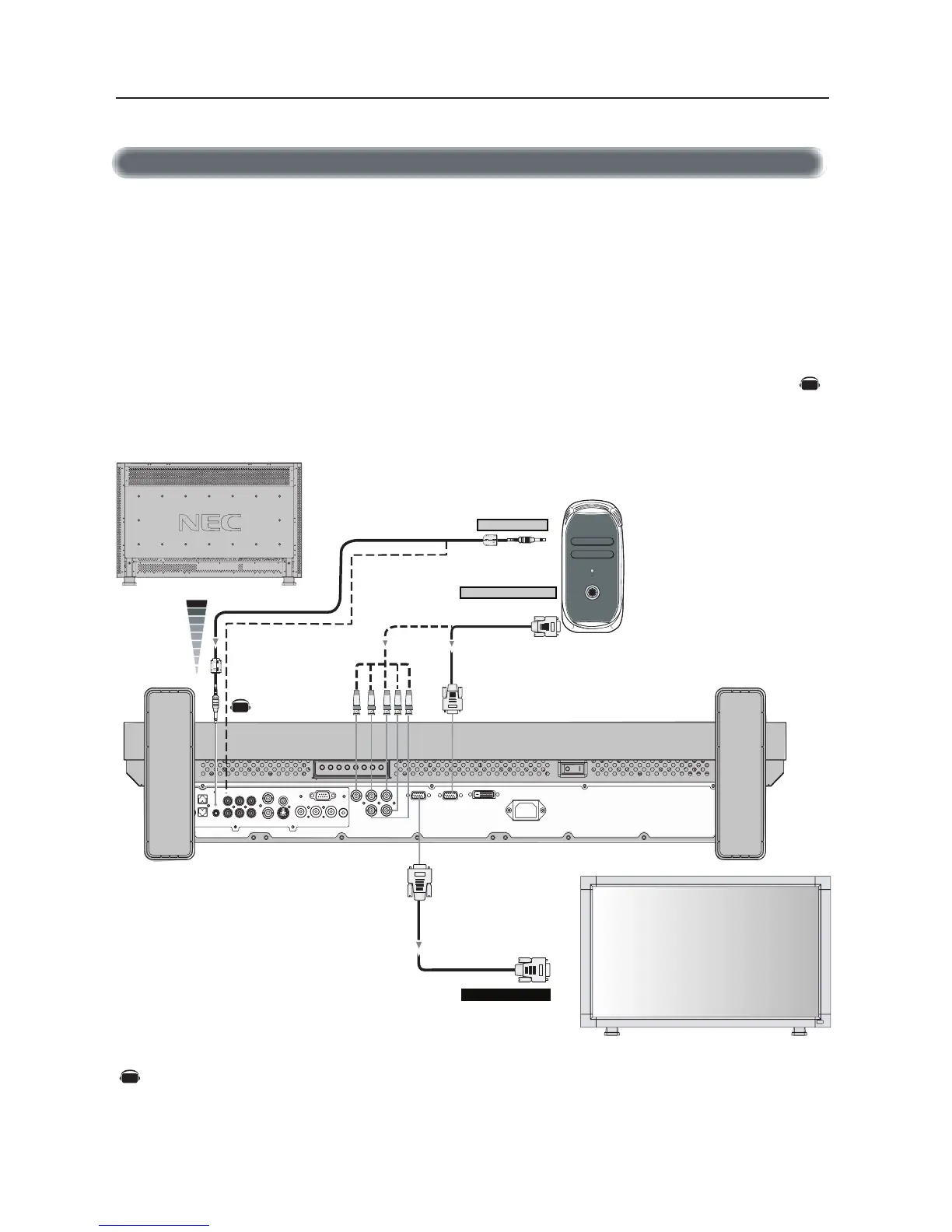

LCD monitor

To audio output

BNC x 5

Mini D-sub

15 pin

To analog RGB output

Mini D-sub 15 pin

Mini D-sub

15 pin

LCD monitor (second monitor)

Mini D-sub 15 pin

To analog RGB input
