Laser light radiation range

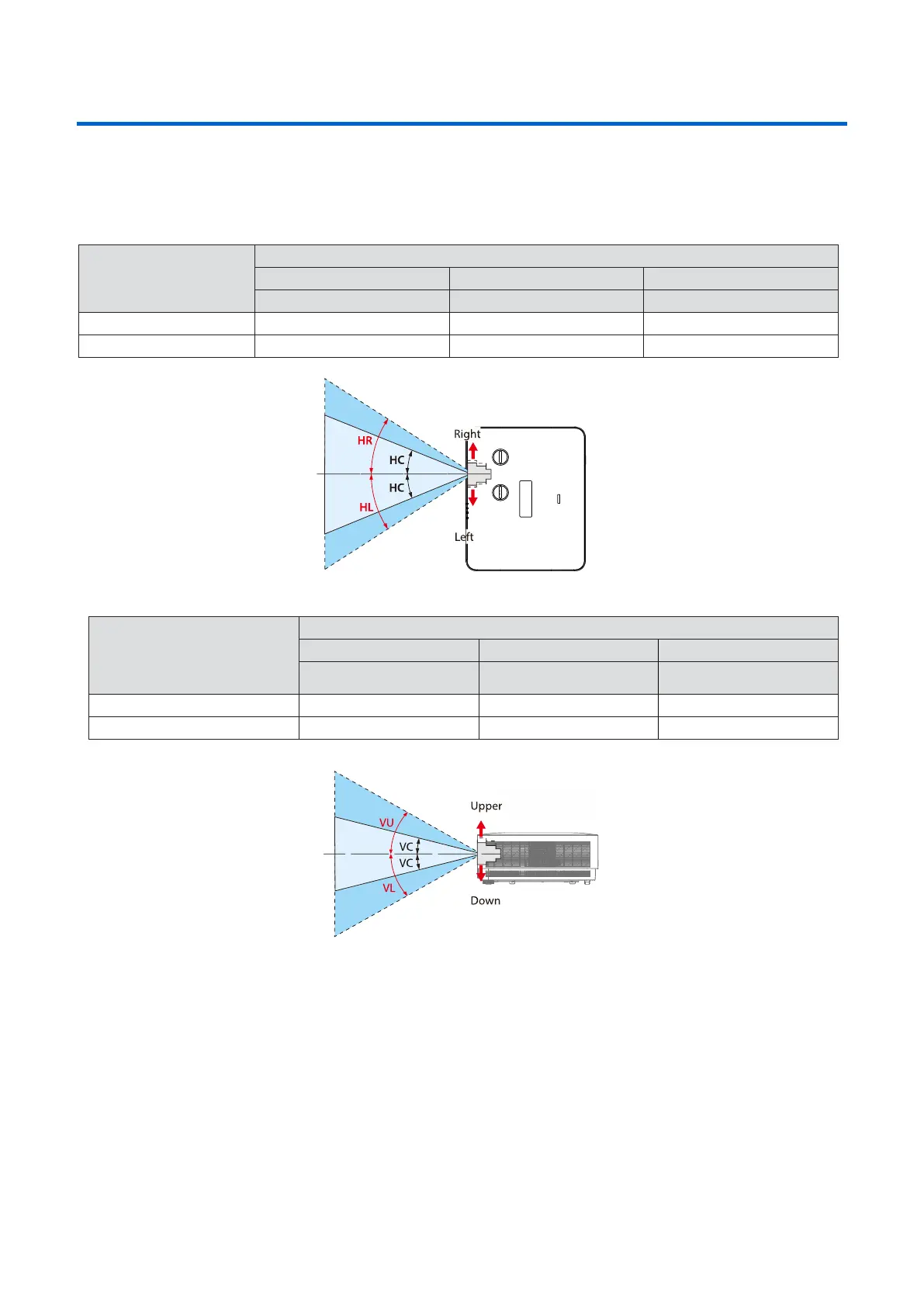

The figure below shows the maximum radiation range of the laser light. Horizontal angle (unit: degree).
Vertical angle (unit: degree)
Zoom
Lens position
Right most
Center (Reference value)
Left most
HR
HC
HL
Wide
32.3
24.3
32.3
Tele
22.7
16.6
22.7
Vertical angle (unit: degree)
Zoom
Lens position
Upper most
Center (Reference value)
Down most
VU
VC
VL
Wide
29.2
14.2
29.2
Tele
20.2
9.5
20.2
