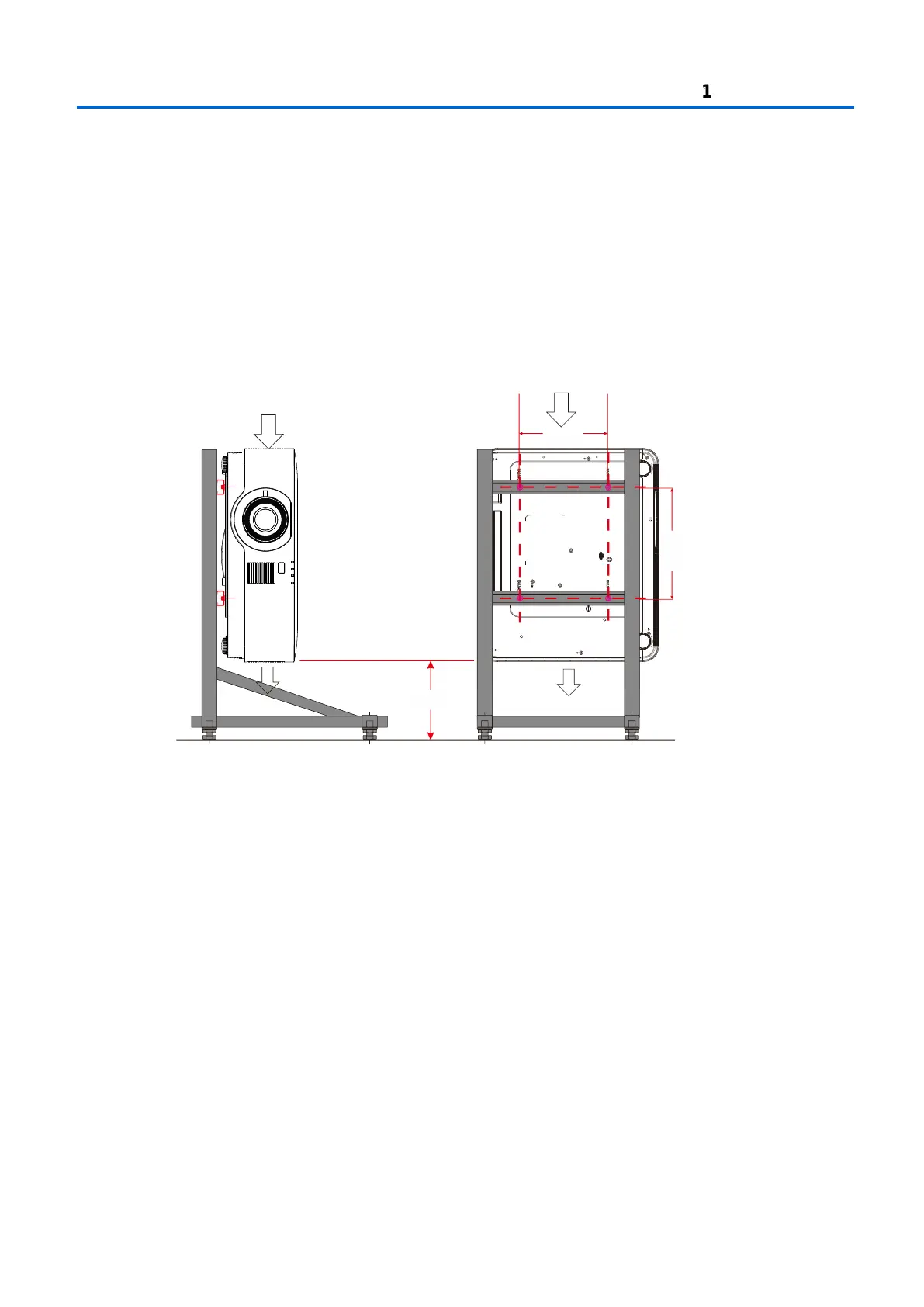

Reference drawings for stand
Please hire an installation service provider (for a fee) for the design and manufacture of a customized stand to be used
for portrait projection. Please ensure that the design complies with the following conditions:
Use the 4 screw holes at the back of the projector to secure it to the stand.
Screw hole center dimension: 250 × 200 mm
Screw hole dimension on the projector: M4 with the maximum depth 12 mm
Horizontal adjustment mechanism (for example, bolts and nuts in 4 places)
Please design the stand so that it does not easily topple over.
The drawing showing the dimensional requirements is not an actual stand design drawing.
