Installation Guide

QX-S5500G Series Ethernet Switches

10. Appendix C Ports and LEDs

10-8

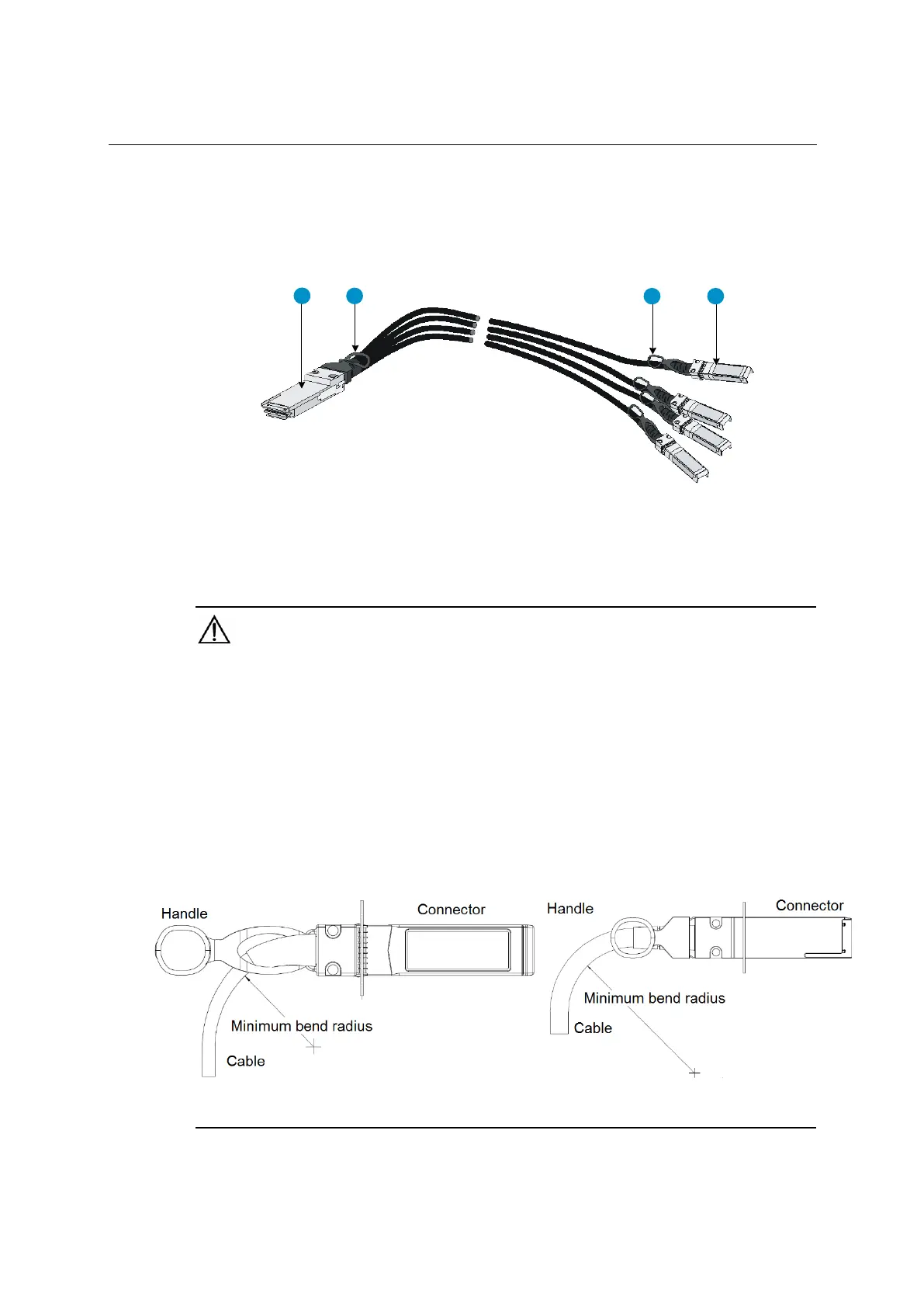

Figure 10-3 40G QSFP+/10G*4 SFP+ copper cable

1 2

3 4

（

1) QSFP+ connector

（

2) QSFP+ handle

（

3) SFP+ handle

（

4) SFP+ connector

CAUTION:

10G SFP+ side minimum bend radius of 40G QSFP+/10G*4 SFP+ copper cable is 35mm.

40G SFP+ side minimum bend radius of 40G QSFP+/10G*4 SFP+ copper cable is 50mm.

When not securing minimum bend radius of a cable, there are damage of a cable and a

possibility that performance decrement causes. Don't bend a cable below the minimum

bend radius.

Figure 10-4 Minimum bend radius of the 10G SFP+ side (the left side) and 40G QSFP+ (the right side) of 40G

QSFP+/10G*4 SFP+ copper cable
