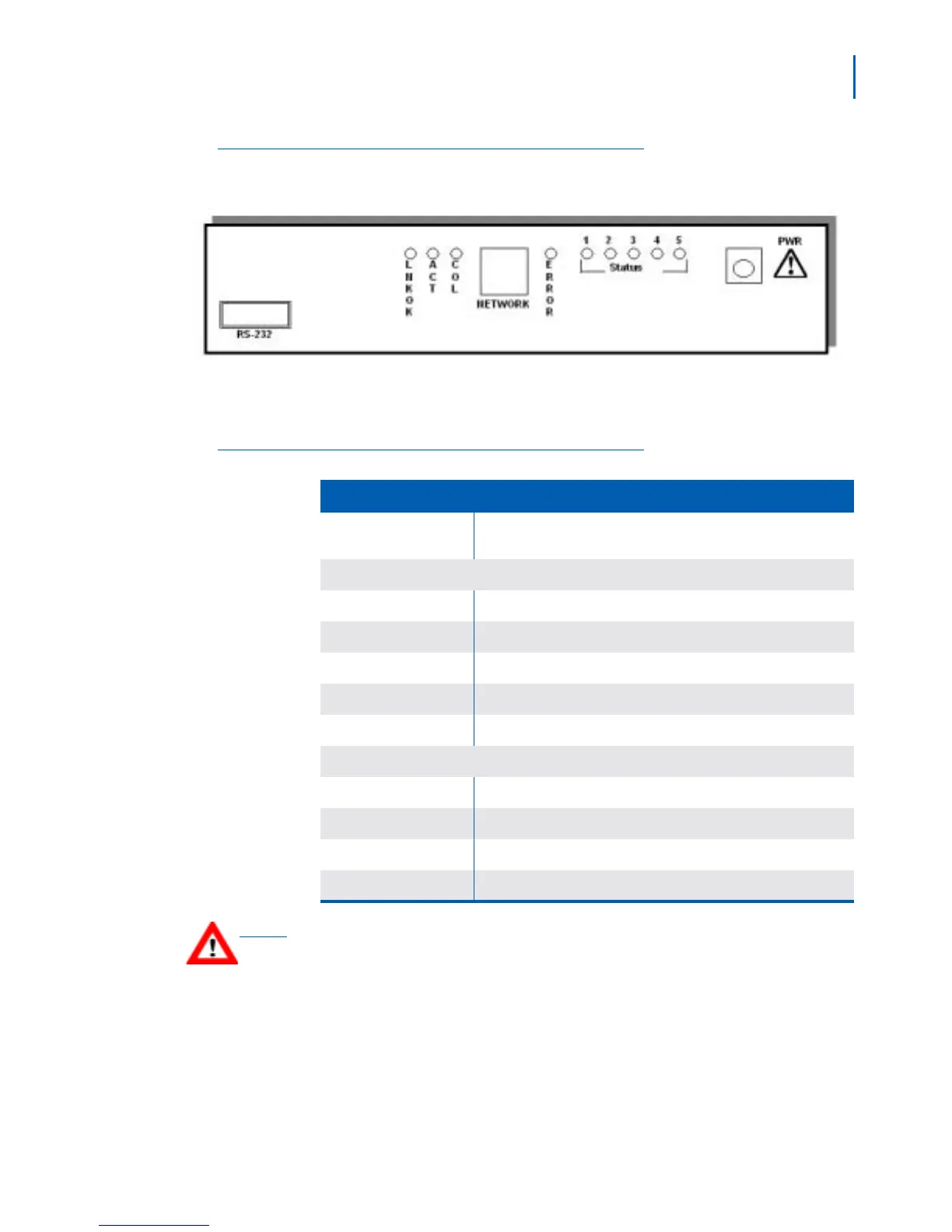

Figure 2-3
SVP Server Front Panel
On-screen elements on the SVP Server Front Panel are described
in
Table 2-4.
Table 2-4 SVP Server Front Panel Features
Feature Descriptions
RS-232 Port
A male DB-9 connector (DTE) used for RS-232 connection to a
terminal, terminal emulator, or modem for system administration.
Link LEDs
LNKOK Lit when there is a network connection.
ACT Lit if there is system activity.
COL Lit if there are network collisions.
NETWORK Connects to wired (Ethernet) LAN.
ERROR LED Lit when the system has detected an error.
STATUS LEDs: Indicate system error messages and status.
1 Heartbeat: indicates gateway is running.
2 Indicates active calls.
3, 4, 5 Currently unused.
PWR (power jack) Connects to the AC adapter supplying power to the system.
CAUTION
Use only the Class II AC Adapter with output 24VDC, 1A, provided by NEC Business
Solutions Ltd.
