LOADING COFFEE
Lift the lid and fill the hopper with coffee, ensuring that the
shutter is fully open (see Fig. 11).

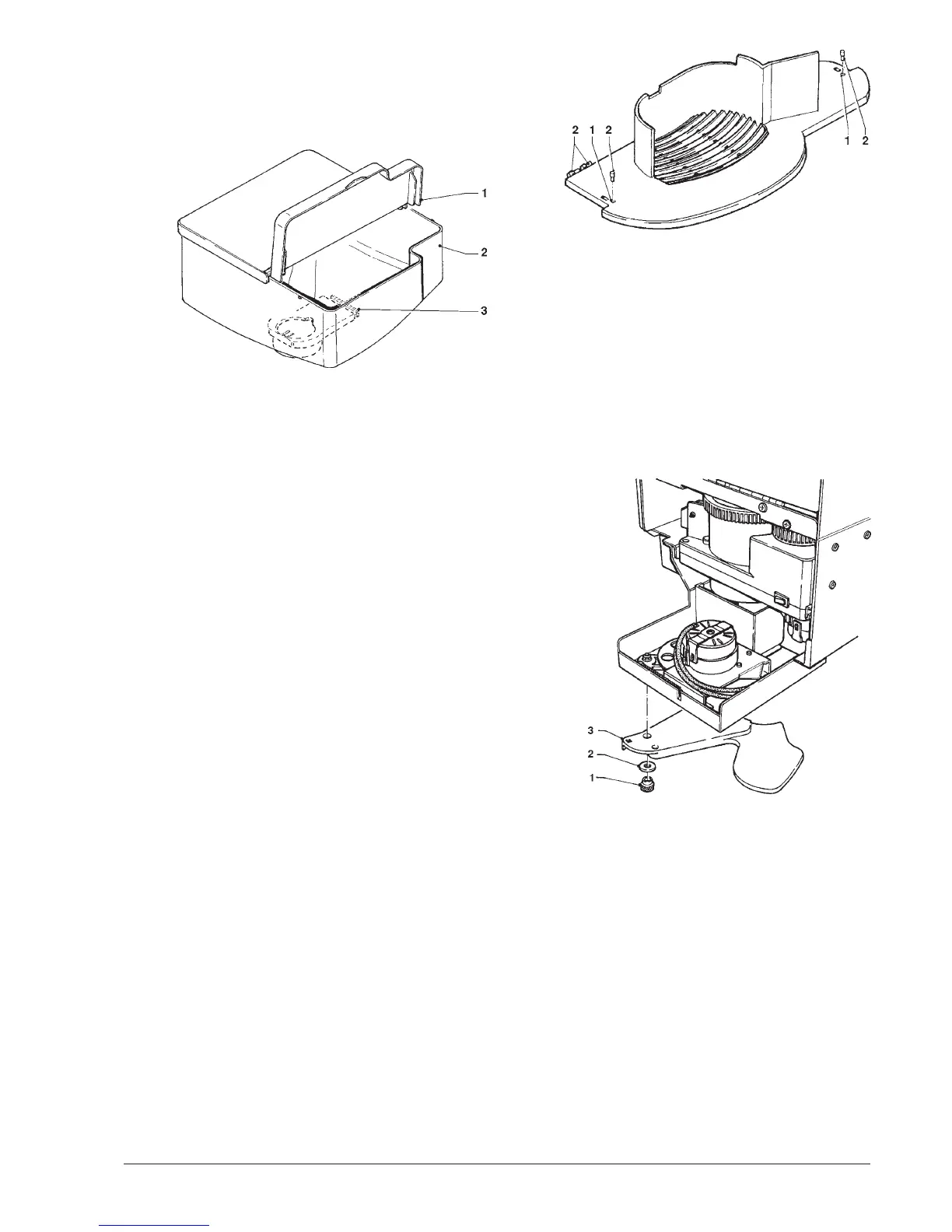

Fig. 11
1 - Lid
2 - Coffee hopper
3 - Shutter
LOADING PRODUCTS AND SUGAR
After lifting their cover, fill each container with the appropri-
ate product, taking care not to compress it to prevent
packing. Make sure the products do not contain any clots.
LOADING STIRRERS
Remove the stirrer weight and insert the stirrers to be
loaded. Remove the paper strip, ensuring that the stirrers
are all placed horizontally.
Replace the stirrer weight.
The stirrers must be burr free and not curved.
CLEANING THE LIQUID WASTE TRAY
The liquid waste tray can be removed easily for emptying
and cleaning.
If the special pins fitted on the container cover are removed
and inserted into the special holes (see Fig. 12), the tray
can be removed only with door open.
For safety reasons, when removing the tray a special
switch installed on the left-hand side will cut off the power
supply from the machine.
Fig. 12
1 - Tray locking holes
2 - Pins
1 - Knurled nut
2 - Spacer washer
3 - Cup shifting arm
Fig. 13
CLEANING THE CUP SHIFTING ARM
The cup shifting arm must be periodically removed and
cleaned. To be able to remove it, completely undo the
knurled nut (see Fig. 13). When reinstalling ensure that the
spacer washer is correctly fitted.
