Necta Brio 250 - Model Configuration; Stirrer Dispenser Configuration; Free-Vend Configuration

© by NECTA VENDING SOLUTIONS SpA
22
0301 162-00

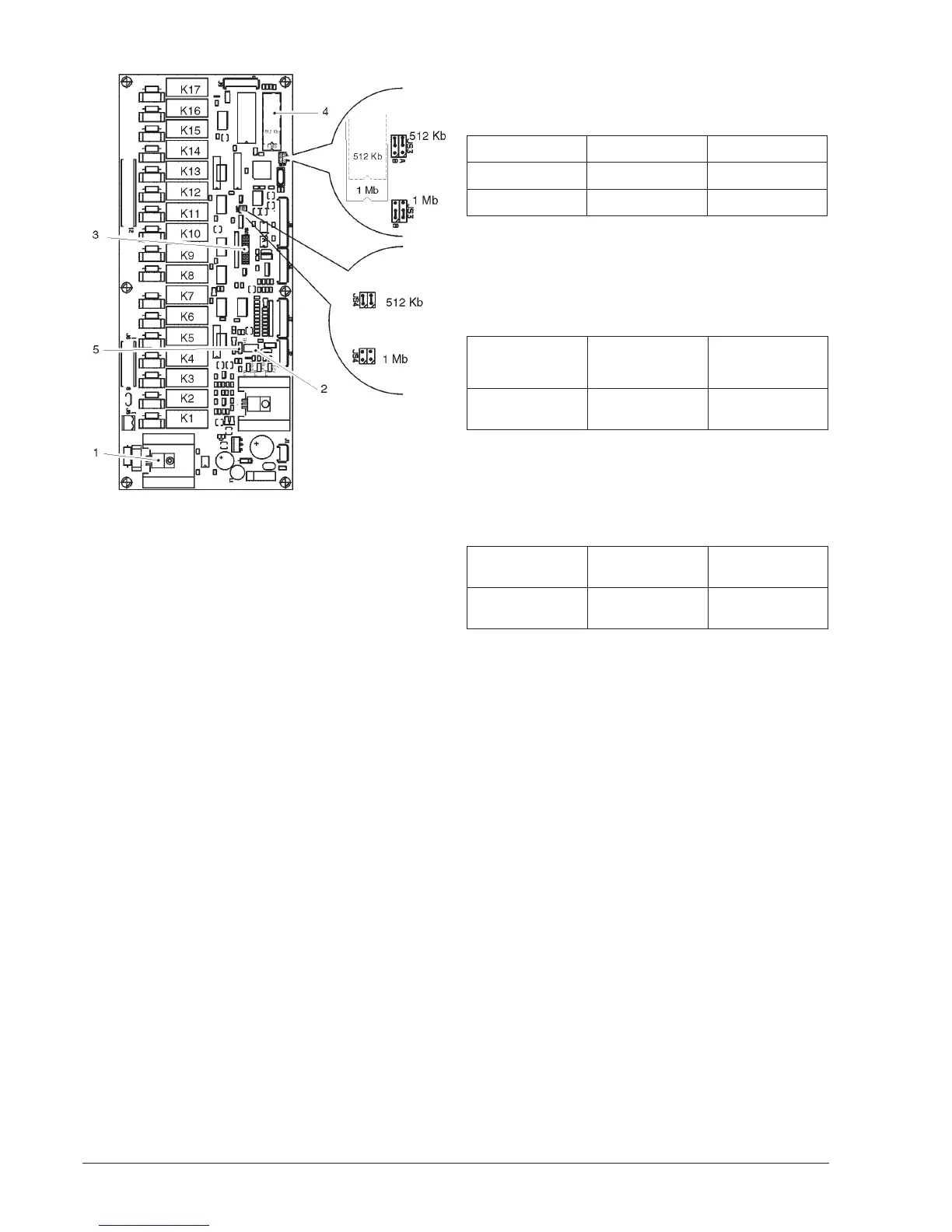

Fig. 22
1 - Boiler heating element TRIAC
2 - Temperature adjustment trimmer
3 - Configuration minidips
4 - EPROM
5 - Jumper: 1-2 Instant versions
2-3 Espresso versions
JS3 - JS4 jumpers for EPROM size
RELAY FUNCTION (see Wiring diagram)
CONTROL BOARD
K1 = ER COFFEE DISPENSING SOLENOID VALVE
K2 = ESC COFFEE RELEASE MAGNET
K3 = MAC GRINDER
K4 = PM PUMP
K5 = M COFFEE UNIT MOTOR
K6 = EV2 INSTANT SOLENOID VALVE 2
K7 = EV1 INSTANT SOLENOID VALVE 1
K8 = MF1 INSTANT SOLENOID VALVE 1
K9 = MD4 INSTANT DOSER DEVICES 4
K10 = MD3 INSTANT DOSER DEVICES 3
K11 = MD2 INSTANT DOSER DEVICES 2
K12 = MD1 INSTANT DOSER DEVICES 1
K13 = MSB CUP RELEASE MOTOR
K14 = MSP STIRRER RELEASE MOTOR
K15 = MSCB CUP COLUMN SHIFT MOTOR
K16 = EIA WATER INLET SOLENOID VALVE
K17 = MF2 INSTANT MIXERS 2
EXPANSION BOARD (model plus only)
K1 = MD5 DECAFFEINATED DOSER DEVICE
LEDOMTNATSNIOSSERPSE
5PIDINIMNOFFO
REPMUJ2-13-2
RERRITS
htiwdesnepsid
deneteewsnu
snoitceles
desnepsidton
deneteewsnuhtiw
snoitceles
2PIDINIMNOFFO
smetsystnemyaPdelbanedelbasid
1PIDINIMNOFFO
MODEL CONFIGURATION
According to the model, minidip 5 and the jumper (see Fig.
21) shall be set as follows:
STIRRER DISPENSER CONFIGURATION
The unsweetened drinks can be dispensed with or without
stirrers by setting minidip 2 to:
FREE VEND CONFIGURATION
It is possible whether or not to use the payment systems by
setting minidip 1 as indicated in the table below:
Important notice:
The machine layout can be changed by means of the
minidips.
Refer to the selection dose table for the available
versions.
