ELECTRIC CONNECTION
The machine is arranged for electrical operation at a
230 V~ single-phase voltage and it is protected by a 15A
fuse.
For connection make sure that the rating will comply with
the mains data, in particular:
- the supply voltage value shall lie within the limits rec-
ommended for the connection points;
- the main switch shall be featured in such a way that it
can support the maximum load required and to ensure
omnipolar disconnection from the mains with an open-
ing gap of the contacts of min. 3 mm.
The switch, the power socket and the correspond-
ing plug shall be located in an accessible position.
The electrical safety of the machine is only ensured
when the machine is correctly and eciently grounded
according to the safety standards in force.
It is necessary to check this fundamental safety
requirement and, in case of doubt, to require pro-
fessionally qualied personnel to check the instal-
lation carefully.
The supply cable is of the type with a xed plug. If neces-
sary, the connection cable (see g. 19) shall be replaced
by qualied personnel by using only cables of the HO5
RN - F or HO5 V V-F or H07 RN-F type, 3x1-1.5 mm2 in
cross-section.
It is forbidden to use adapters, multiple sockets
and/or extensions.
THE MANUFACTURER WILL DISCLAIM ALL RE-
SPONSIBILITY FOR ANY DAMAGE CAUSED BY THE
NON-OBSERVANCE OF THE PRECAUTIONS MEN-
TIONED ABOVE.
paymenT sysTem assemBly
The machine is sold without any payment system.
As a consequence, only the installer will be liable
for any damage that may be caused to the machine
or to things and persons by an incorrect installation
of the payment system.
Mount the payment system you have selected by follow-
ing the instructions and make sure that:
- you have programmed the parameters correctly;
- regulate the reject lever in order to open the selector
completely;
- regulate the coin slide according to the coin mecha-
nism you have assembled.
Bank insTallaTion
The control system of the machine is arranged for the
bank installation with other automatic dispensers by us-
ing special kits.
This will enable the operator to use one single pay-
ment and remote connection system (GSM) for several
machines.
In case of a bank installation, the machine can be con-
gured as a “master”, i.e. as a machine controlling the
second one, or as a “slave”, i.e. as a machine controlled
by the second one.

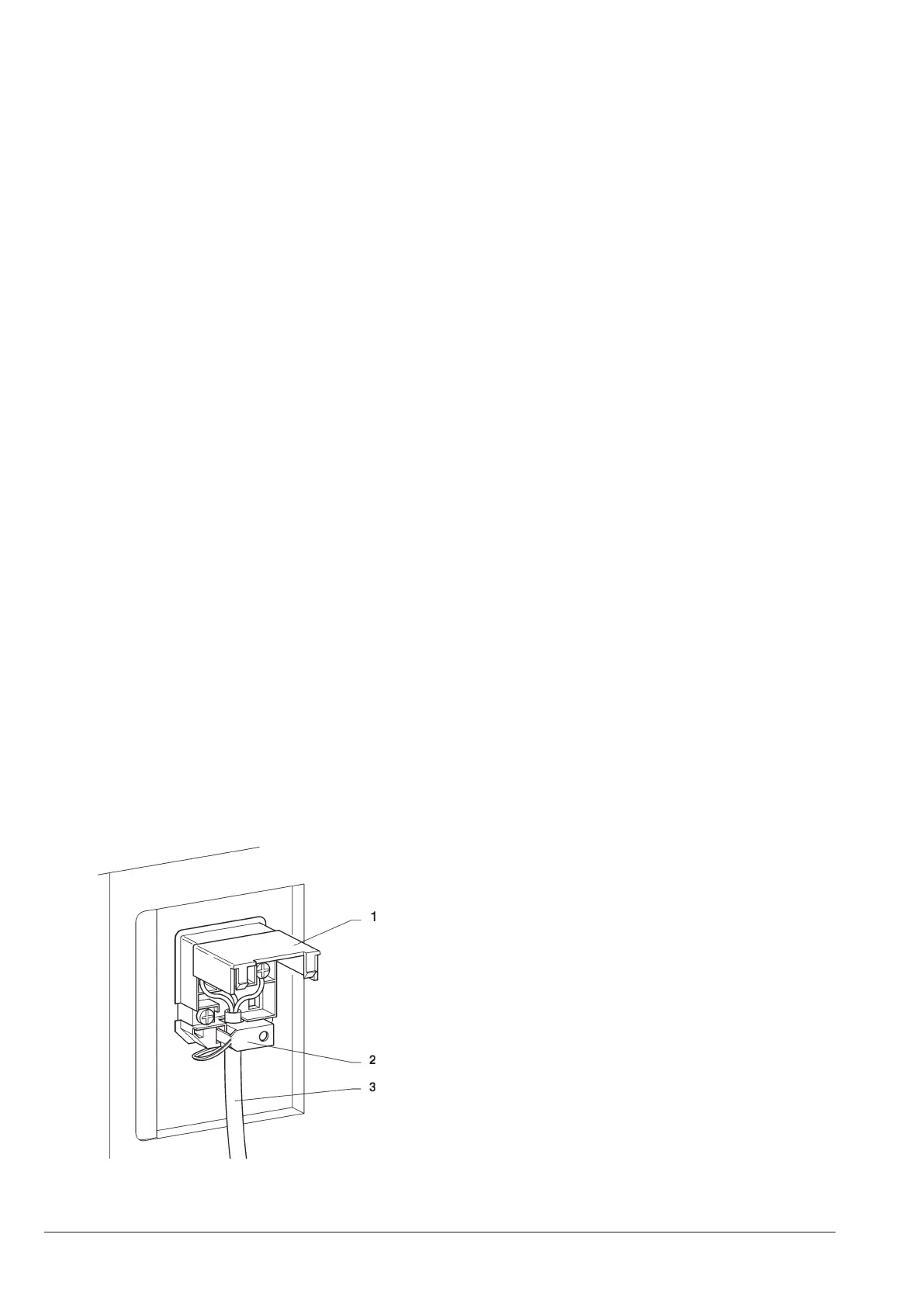

Fig. 19
1- Small lift cover
2- Cable clamp
3- Mains cable
