POSITIONING THE VENDING MACHINE
The machine is not suitable for installation outdoors. It
must be installed in a dry room at a temperature ranging
from 2°C to 32°C. It can not be installed in a room where
water jets are used for cleaning (e.g. large kitchens, etc.).
The machine must be installed near a wall, but in such a
way that the back is min. 4 cm. far from the wall in order
to provide for regular ventilation. It shall never be cov-
ered with pieces of cloth or alike.
The machine shall be arranged to prevent maximum
inclination from exceeding 2°.
If necessary, level it by using the adjustable feet (see g.
16) supplied with the machine.
TECHNICAL FEATURES
Height mm. 1830
Width mm. 650
Depth mm. 760
Overall dim. with open door mm. 1320
Weight Kg 170
Power supply voltage V~ 230
Power supply frequency Hz 50
Installed power W 2500
cup dispenser
The diameter of the upper edge is 70-71 mm. or self-
contained for about 650 cups.
paymenT sysTem
The machine is electrically pre-arranged for systems
with an Executive, MDB or BDV protocol and for the as-
sembly of 24 Vdc validators.
The space is not only arranged to accommodate the
coin mechanism, but also to assemble the most wide-
spread payment systems (optionals).
sales prices
You can set up a programmable dierent price for every
single selection. A sales price that is the same for all
selections is available for the standard setup.
exTernal lighTing
By means of class-1 LEDs.
LEDs are generally protected by transparent panels. If
you remove panels for any reason, the light of the LEDs
may be dangerous if you directly look at it.
energy saving
You can set up the power o of LEDs and/or boilers to
save electric energy during non-use periods.
Jug faciliTies and free vend (opTional)
Use a special key to get up to 9 fresh brew selections
without dispensing a cup to ll in a jug or to get a free
delivery of normal selections.
coin Box
Made of galvanised sheet iron. Cover and lock available
as accessories.
waTer supply
Supplied by the network, the water pressure of which lies
between 0.05 and 0.85 MPa (0.5 and 8.5 bar)
The machine software can manage the water supply
from an internal tank (optional kit).
possiBle adJusTmenTs
Espresso: grinding manual
(optional) self-regulating
volumetric coee and water dose.
Instant: Time-based coee, instant and water
doses.
Temperature: Adjustable via software.

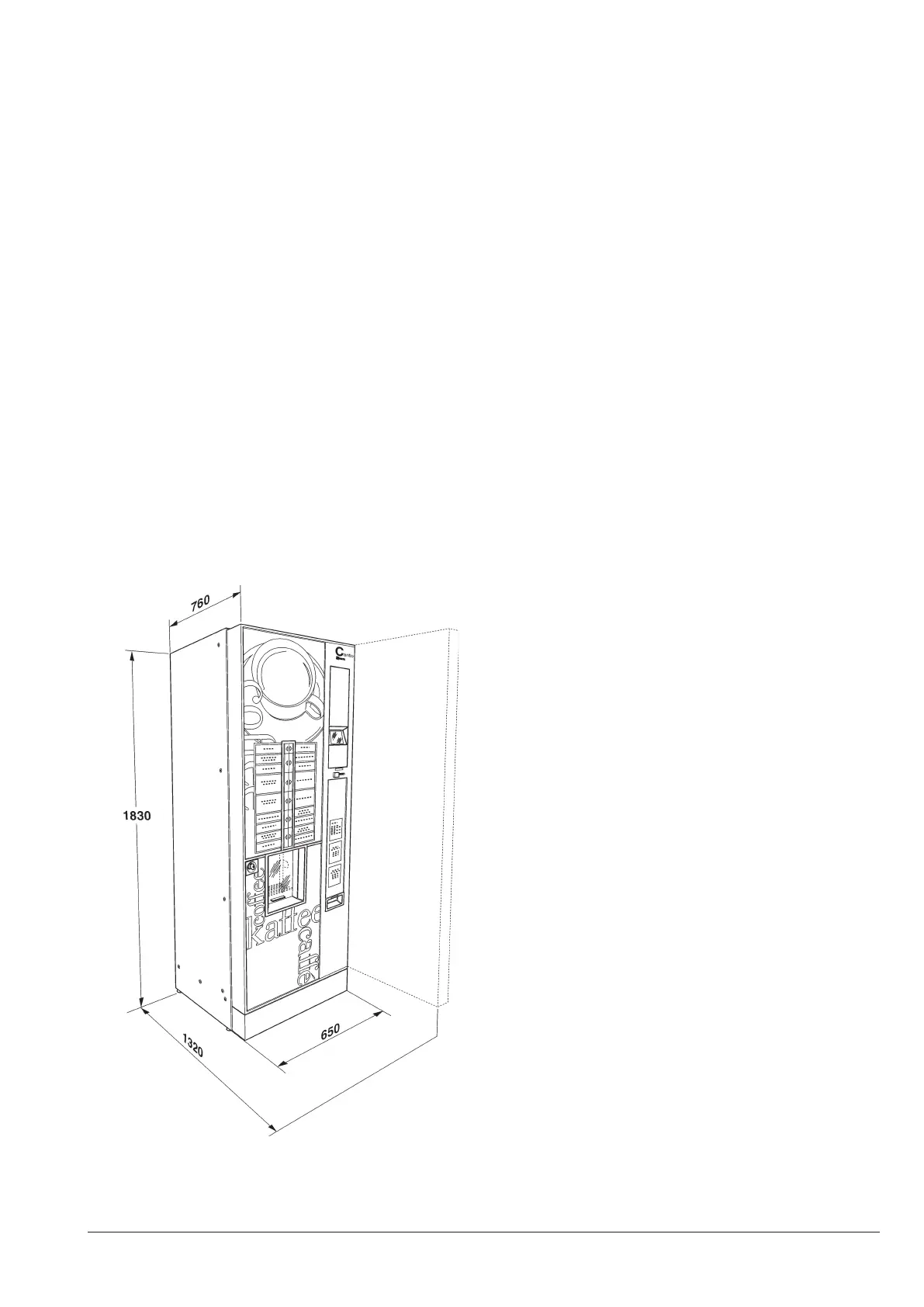

Fig. 2
