© by N&W GLOBAL VENDING S.p.A. 16 10 2009 3325 - 00
OPERATION
COMPARTMENT COVER
The machine is complete with a cup shift arm that can
keep the dispensing nozzles very close to the drink, thus
improving its quality and reducing to a minimum the pos-
sibility of making the dispensing area dirty. The system is
also complete with a shutter closing the cup passage to
provide for separation from the outside.
For instant drinks you can set up a wait time (from zero
to 2000 c/s) after the end of delivery, at the expiry of
which the shutter will close. The end-of-delivery sound
signal is supplied.
A microswitch signals the machine the position of the
cup shift arm
CUP GUIDING DEVICE
A cup guiding device is supplied with the machine. it
shall be mounted only if the type of cup in use is not
regularly falling into the shift arm.
To mount the device, just extract the conveying ring
secured by means of a screw and mount the device onto
the ring, just as it is shown by g. 20.
CUP SENSOR
Some models are equipped with a cup sensor intended
to detect the presence of any object that may be placed
between the reex reector and the sensor itself.
The sensor is provided with two LEDS intended to signal
the state:
- The green LED on indicates that the sensor is supplied
- The orange LED on indicates that sensor is detecting
an object
For a correct operation it is necessary to keep the emit-
ter and the reex reector in front of it clean.

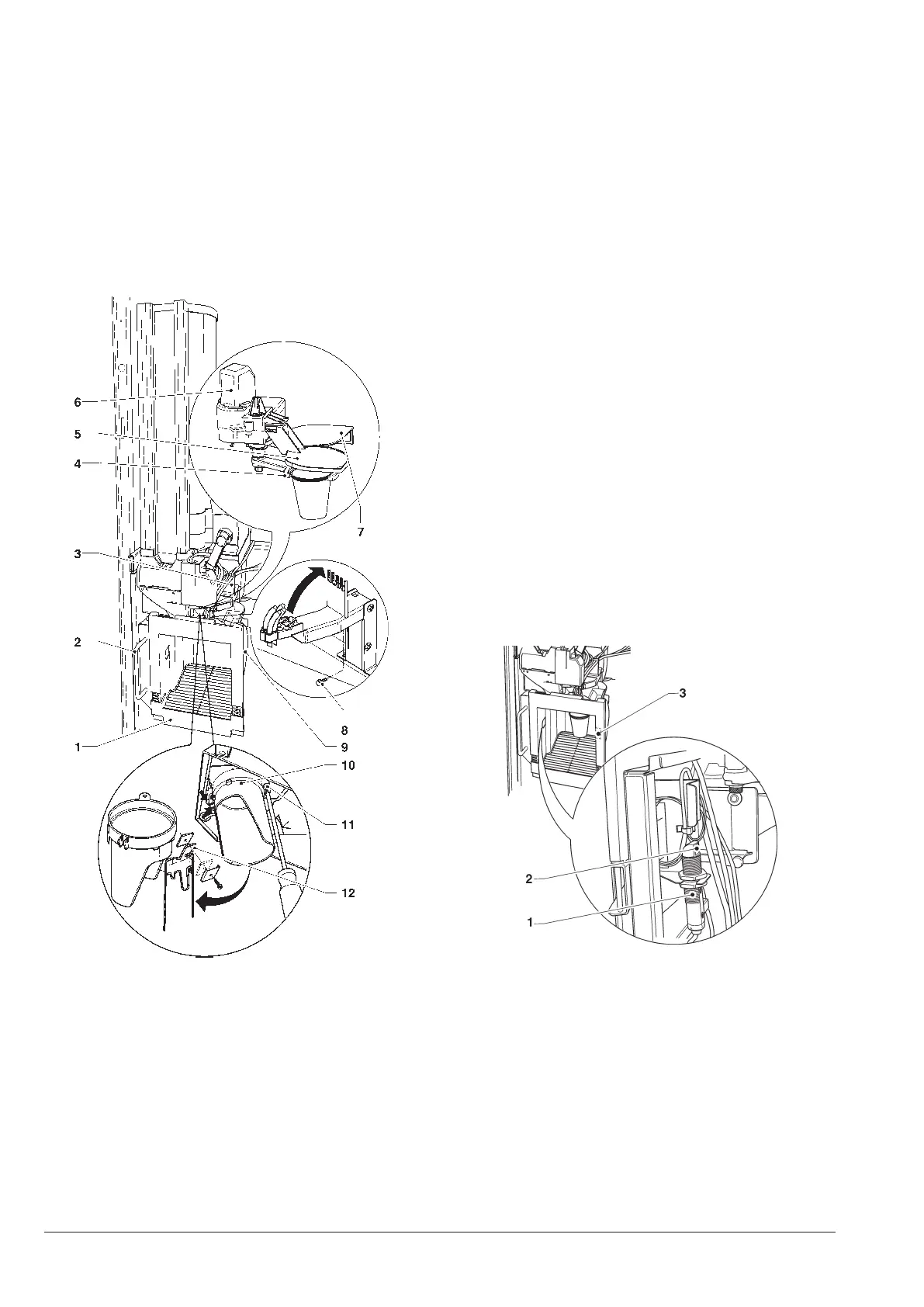

Fig. 21
1- Cup sensor
2- Emitter
3- Reflex reflector
Fig. 20
1- Dispensing compartment
2- Extraction handle
3- Dispensing tube support
4- Cup shift arm
5- Mobile drink dispensing cover
6- Lever drive ratio-motor
7- Mobile cup dispensing cover
8- Nozzle fastening knurl
9- Compartment retainer knurls
10- Conveying ring
11- Ring fastening screw
12- Cup guide
