Necta Canto Plus Espresso - Page 69

RS232 SERIAL PORT
SALIM POWER SUPPLY UNIT BOARD
SLED LED BOARD
SUC C.P.U. BOARD
PL WASHING BUTTON
PPO “PRIMING” BUTTON
PST STATISTICS BUTTON
PTB CUPS SHIFTER BUTTON

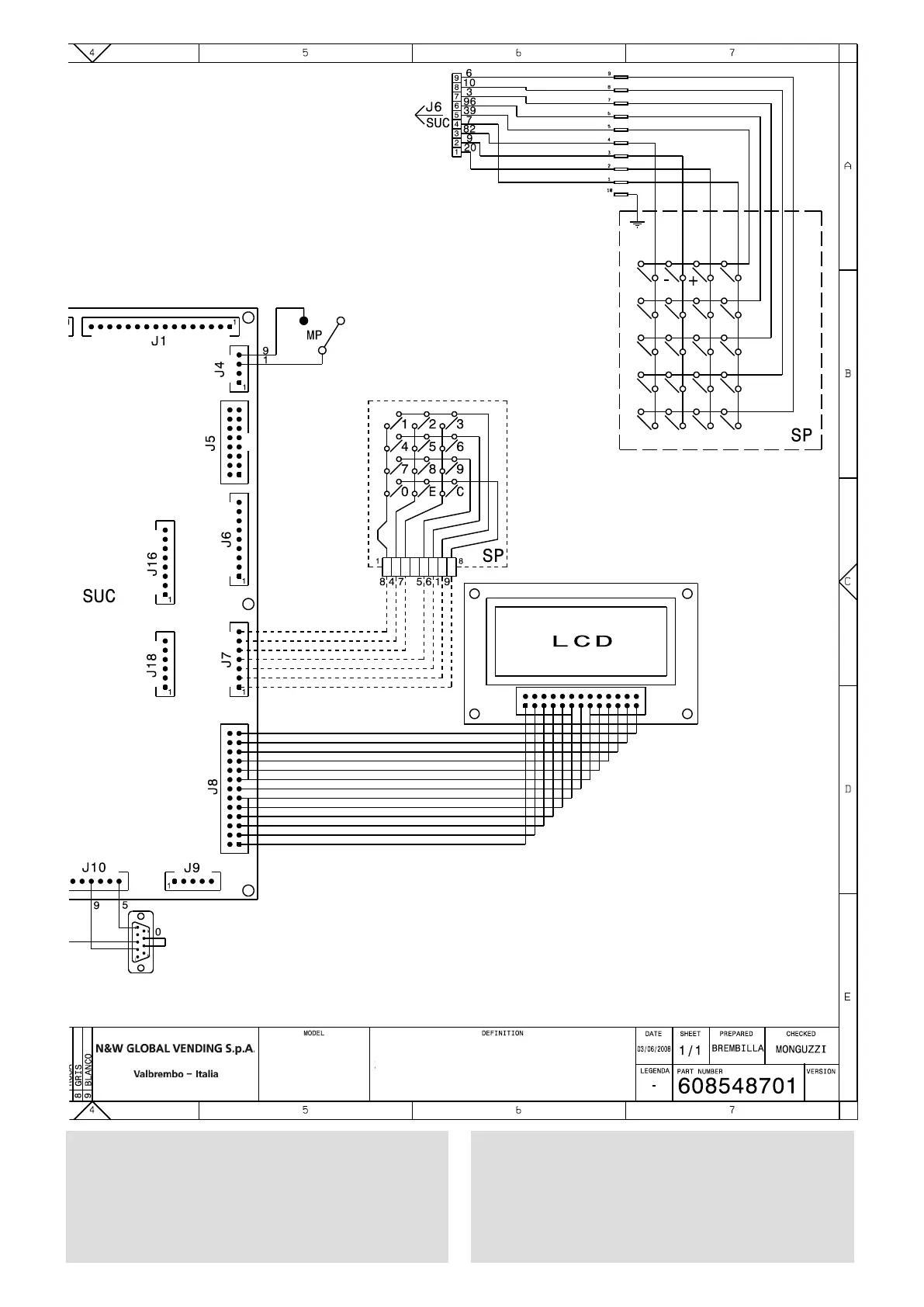

SCHEMA ELETTRICO - WIRING DIAGRAM
Porta - Door
Canto
TZ
