NW Global Vending – TECHNICAL MANUAL

This document was produced by MARK AC for the exclusive use of the technical personnel in the after-sales service.

. No part of this document may be divulged to a third party or reproduced partially or entirely without the prior permission of NW GLOBAL VENDING

New dispenser “KORO” 07/10/2005 page 18 / 42

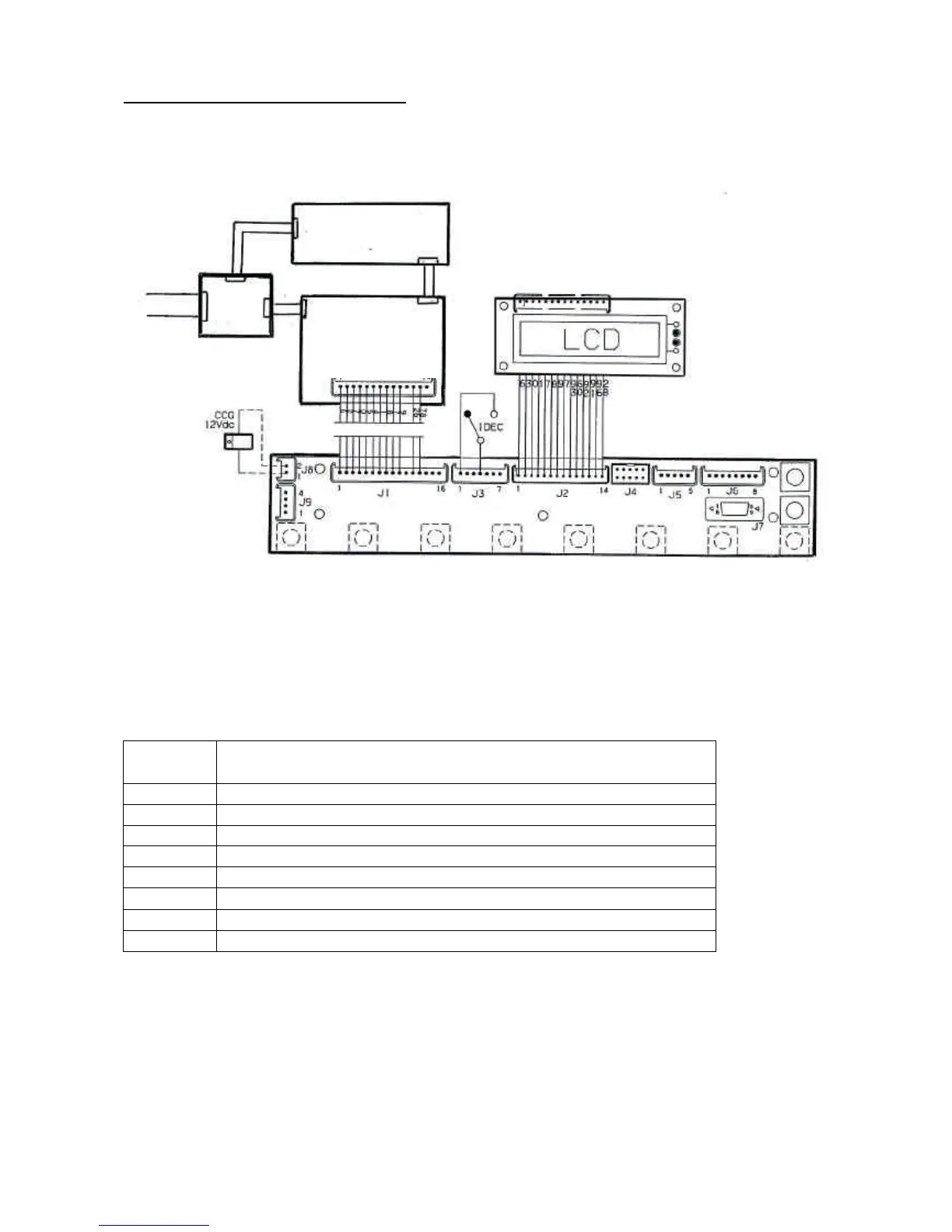

BOARD CONNECTION DIAGRAM

Signal DESCRIPTION

SAL

Power supply card

SM FB

Sigma brewer control board

Actuation and control board

CCG

Mechanical general counter

SM 1

Push-button and display control card

LCD

Liquid crystal display

IDEC

Decaf. coffee door switch

NB: The above listed codes are indicated in the wiring diagrams and on information sheets supplied with the machine.

SM FB

Actuation

J 14

J10

P46

SAL

J12

230 V

12 V

24 V

Necta Koro Service Manual

Other manuals for Necta Koro
