16 - SIGMA BREWER CONTROL BOARD
This board, located at the back of the machine, is
additional to the actuation board and controls the
SIGMA BREWER unit function only for the FB version.
(see photo without protective casing)
It processes the information from the brewer unit and
controls its functions.
The board also controls the dispensing of fresh product
and the flow diverter solenoid valve from
spout/external nozzle.
The 24 VAC voltage necessary for operating the board
is supplied by the transformer, protected by a 800 mAT
fuse on the primary winding and by a 3.15 AT fuse on
the secondary winding; the voltage is rectified and
stabilised directly by the board.
- The green LED (7) indicates the presence of +5 V;
- The green LED (8) indicates the presence of 34 V
DC variable;
- The green LED (9) indicates the presence of 34 V
DC.
1 - To Sigma brewer unit
2 - Not used
3 - MDFB and EVDEV
4 - Board power supply 24Vac
5 - Not used
6 - Not used
7 - Green LED +5V
8 - Green LED 34Vdc variable
9 - Green LED 34 Vdc
10 - Tray detection micro-switch
11 - Tray detection micro-switch
12 - Can-bus with actuation board
13 - Can-bus with actuation board

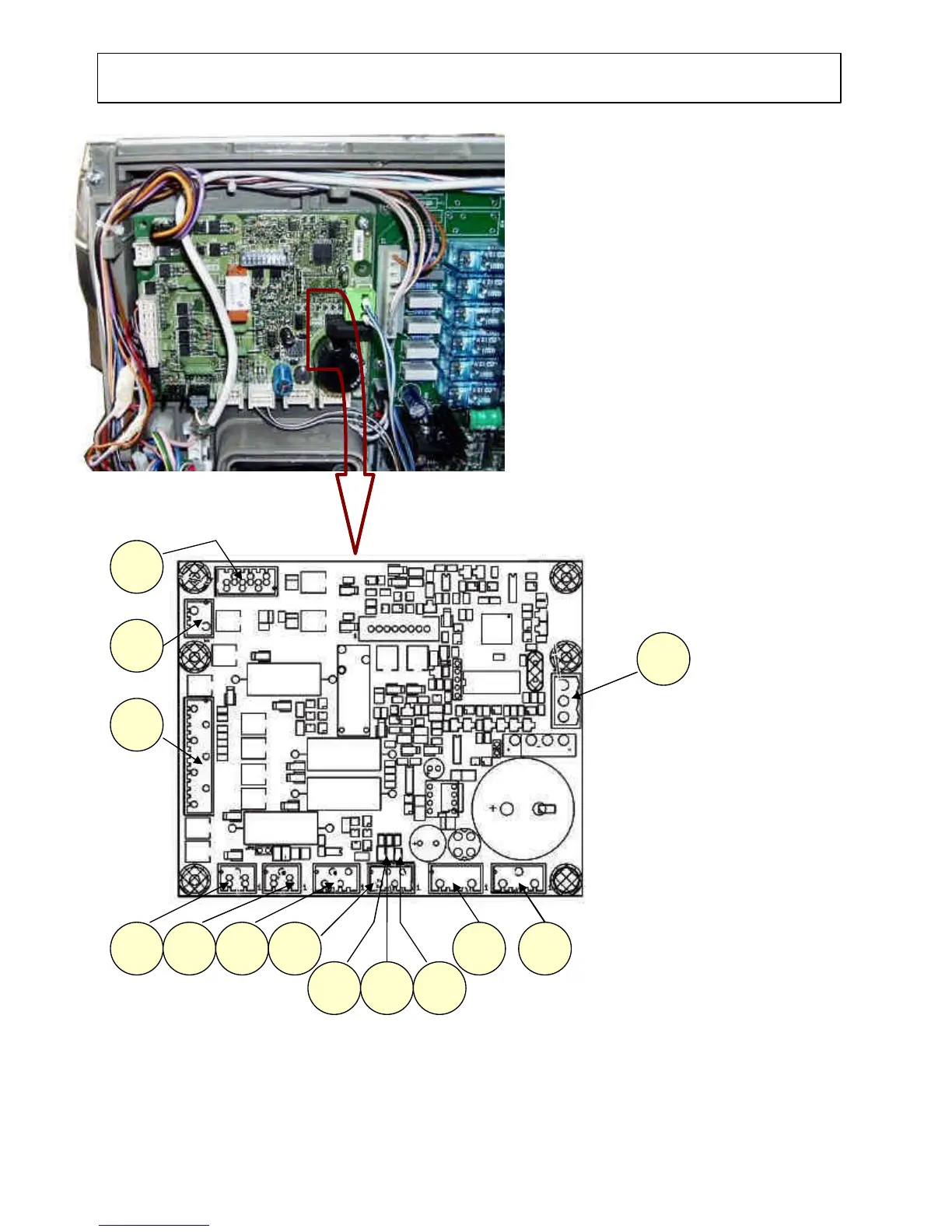

DETAIL OF REAR SECTION WITHOUT PROTECTIVE CASING
