NW Global Vending TECHNICAL MANUAL
This document was produced by MARK AC for the exclusive use of the technical personnel in the after-sales service.
. No part of this document may be divulged to a third party or reproduced partially or entirely without the prior permission of NW GLOBAL VENDING
. All rights reserved.
New dispenser “KORO” 07/10/2005 page 20 / 42

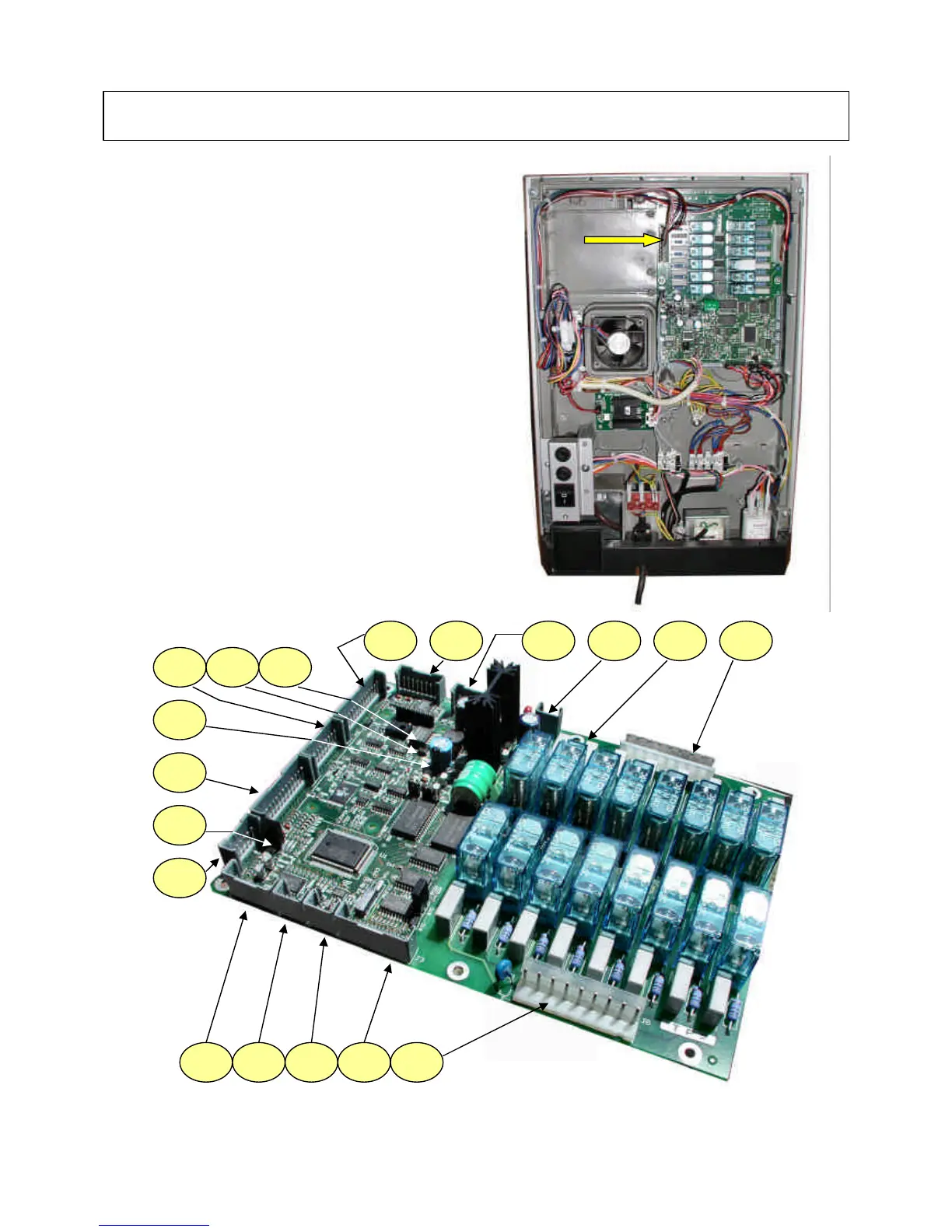

15 - ACTUATION BOARD - CONFIGURATIONS
ACTUATION BOARD
This board, placed at the back of the machine, (see Fig. 29)
processes the information from the push-button card and
from the payment system; it also controls the actuations, the
input signals and the boiler board.
The 15 VAC voltage necessary for operating the board is
supplied by the transformer, protected by a 125 mAT fuse on
the primary winding and by a 1.25 AT fuse on the secondary
winding; the voltage is rectified and stabilised directly by the
board.
This board houses the Flash EPROM. The control software of
the board is installed directly (via RS232) in the
microprocessor.
- The red LED (7) indicates the operating status of the
boiler heating element;
- The red LED (9) for resetting the CPU glows during the
board reset;
- The green LED (11) blinking indicates that the
microprocessor is working correctly;
- The yellow LED (12) indicates the presence of 12 V DC.
5
4
3
2
1
7
8
9
10
11
12
13
6
14
15
16
17
18
