New dispenser “KORO” 07/10/2005 page 31 / 42
In According to new market requirements, it was necessary to design new solutions using quick fastening
without any screws, to allow easy access for maintenance, as well as quick changes to the layout by means of
preassembled modules.
23 – DOSER DEVICES AND POWDER PRODUCT
CONTAINERS
Standards components are used, already adopted in
other applications, but in a new support and with
newly designed specific powder containers,
comprising also the mixer assembly.
The system is modular and of the same width as a
powder container.
It was designed for quick and easy removal as
required by the particular type of machine.

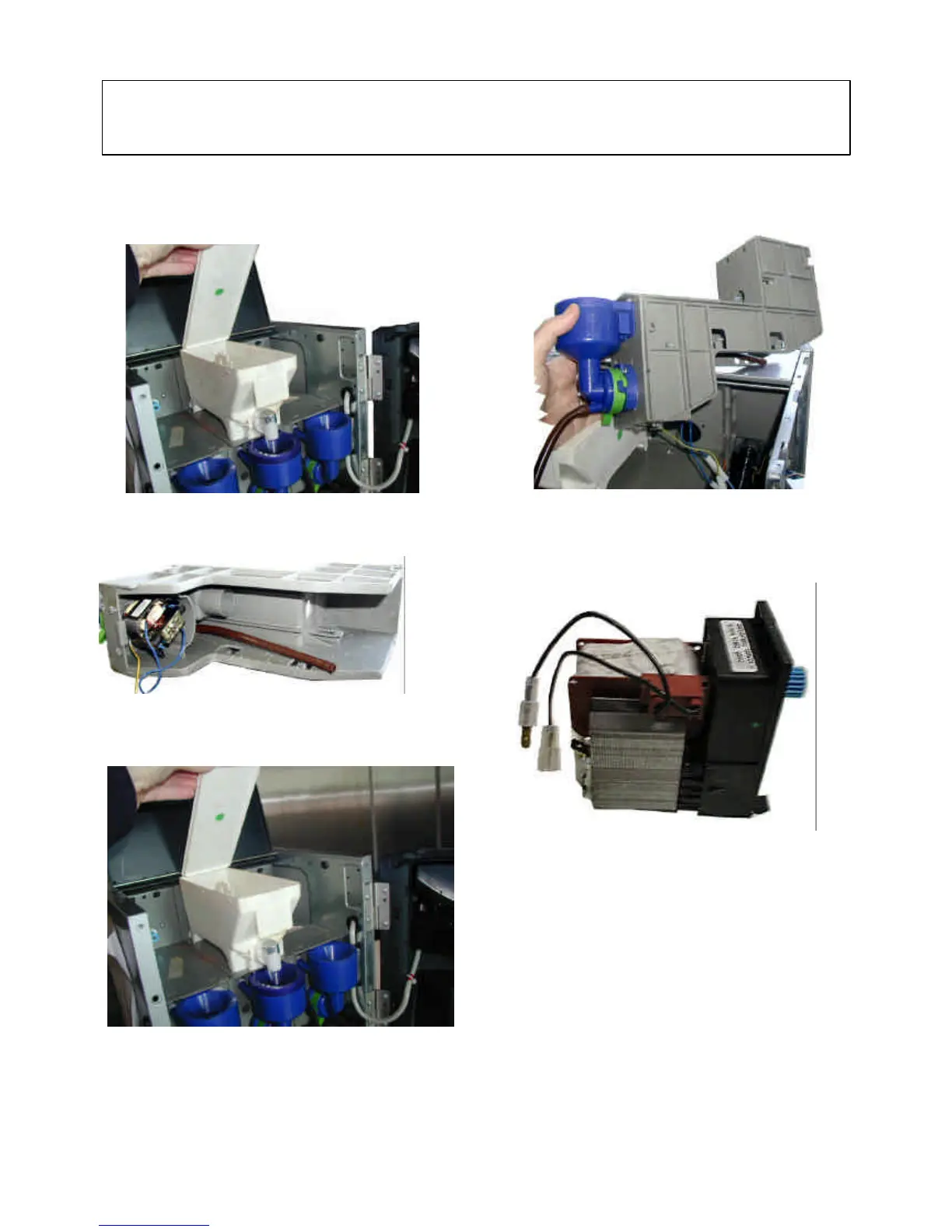

INSTANT PRODUCT CONTAINER OPEN AND
BEING REMOVED
MIXER RATIOMOTOR ASSEMBLY
VIEWED FROM BELOW
MIXER RATIOMOTOR ASSEMBLY
BEING REMOVED FROM ITS SEAT
RATIOMOTOR REMOVED FROM ITS SEAT
INSTANT PRODUCT CONTAINER OPEN
AND BEING REMOVED
