Facility-code
Constant facility-code (or site-code) value. Max. 65,535 (16 bits).
ID-number
Select to output the ID-number complete, left aligned or right aligned.
When left or right aligned specify the ID-length and offset in bits.
Convert BCD to binary
Enable to convert the BCD (decimal) ID-number to a binary value.
For example ID-number 987 = hex 3DB = b'11 1101 1011'.
The conversion will reduce the amount of ID-number bits.
Conversion is only possible if ID-number before conversion is max 80 bits.
When the ID-number is not in decimal, the result may be unexpected.
Suffix
Constant suffix value. Max. 65,535 (16 bits).
Example Wiegand configuration
The configuration shown below will generate a Wiegand 26-bit message with facility-code 10. The ID-number uses the
16 least significant bits (right aligned).
Mobile ID Raw ID64 B03BF925E6F04D34 ID-number 0x4D34 = 19764

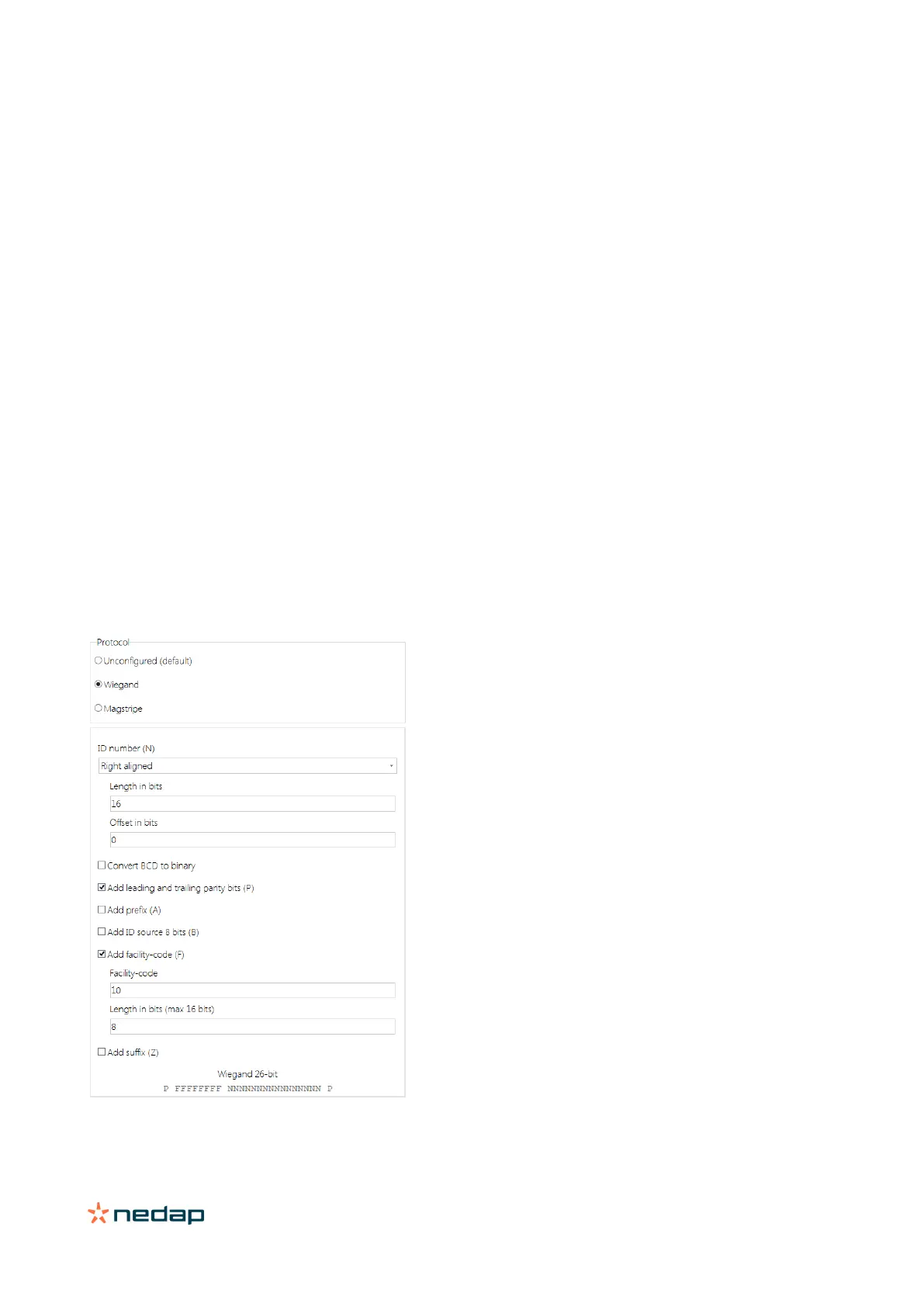

Figure 14: Example Wiegand 26-bit configuration
