Nederman HV Control Panel EX Series - Configuration of Analogue Inputs; Commissioning Report

HV Control PanelEN
38
ThenalconguraoncanbesavedasauserMACROinscreen380-MACROandreported
inthecommissioningreport.
6.11 Conguraon of analogue inputs
ThePLChastwoanalogueinputs0-10V.
FortheHVControlPanelEXseries,theanalogueA1.0isusedforacurrentsensor.
TheanalogueAI1canbeusedforavacuumsensor-40...0kPa@0..10V.

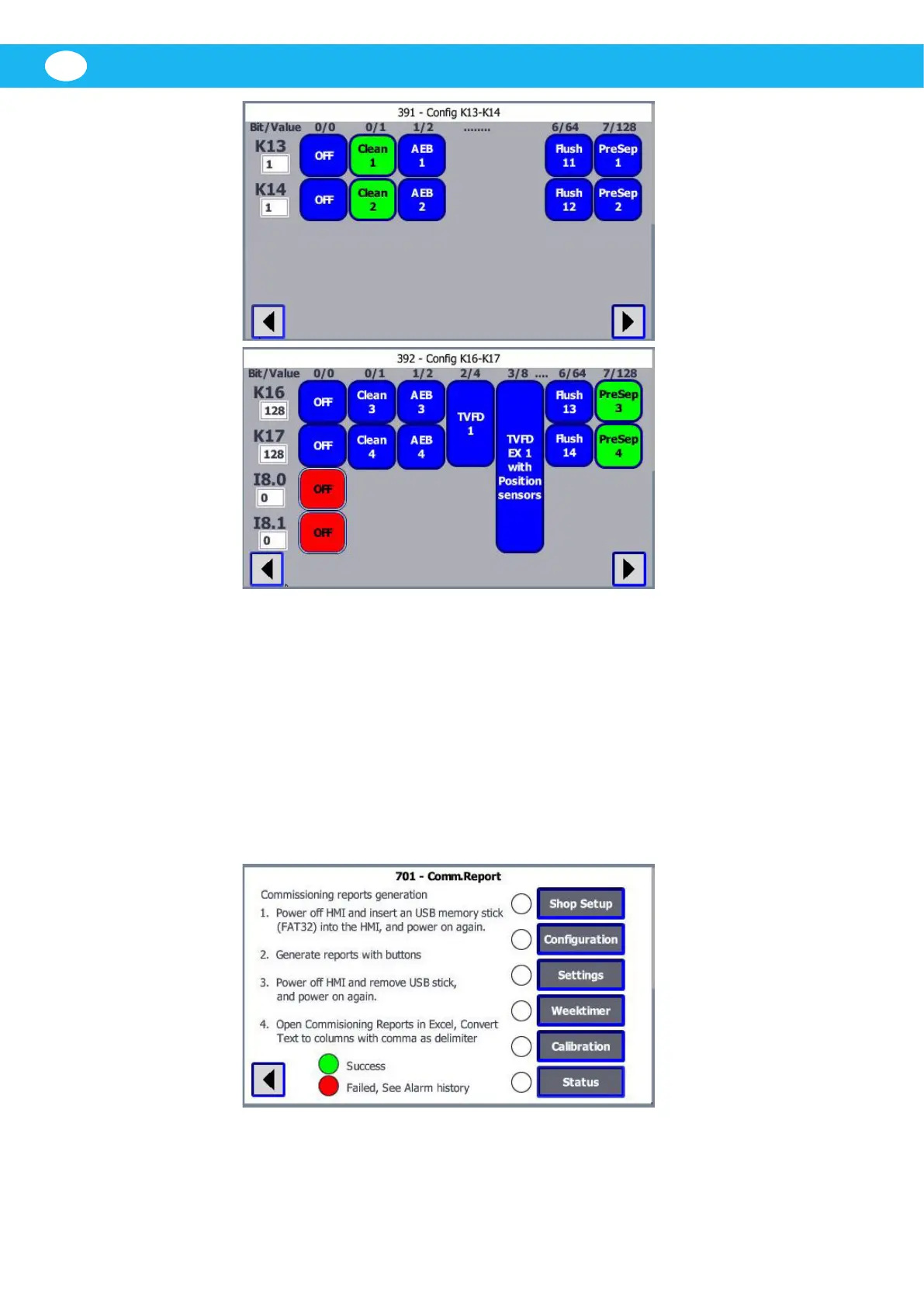

6.12 Commissioning report
Whenasystemisinstalledandcommissioned,makeacommissioningreport,which
includesallsengs.Eitherwritedownallofthesengsortransferacopyofthesengs
fromtheHMItoaUSBmemorysck.
