Neoway N11 - Specifications; Figure 1-1 N11 Block Diagram; Table 1-1 N11 Specifications

N11
Hardware User Guide
Copyright © Neoway Technology Co., Ltd
3

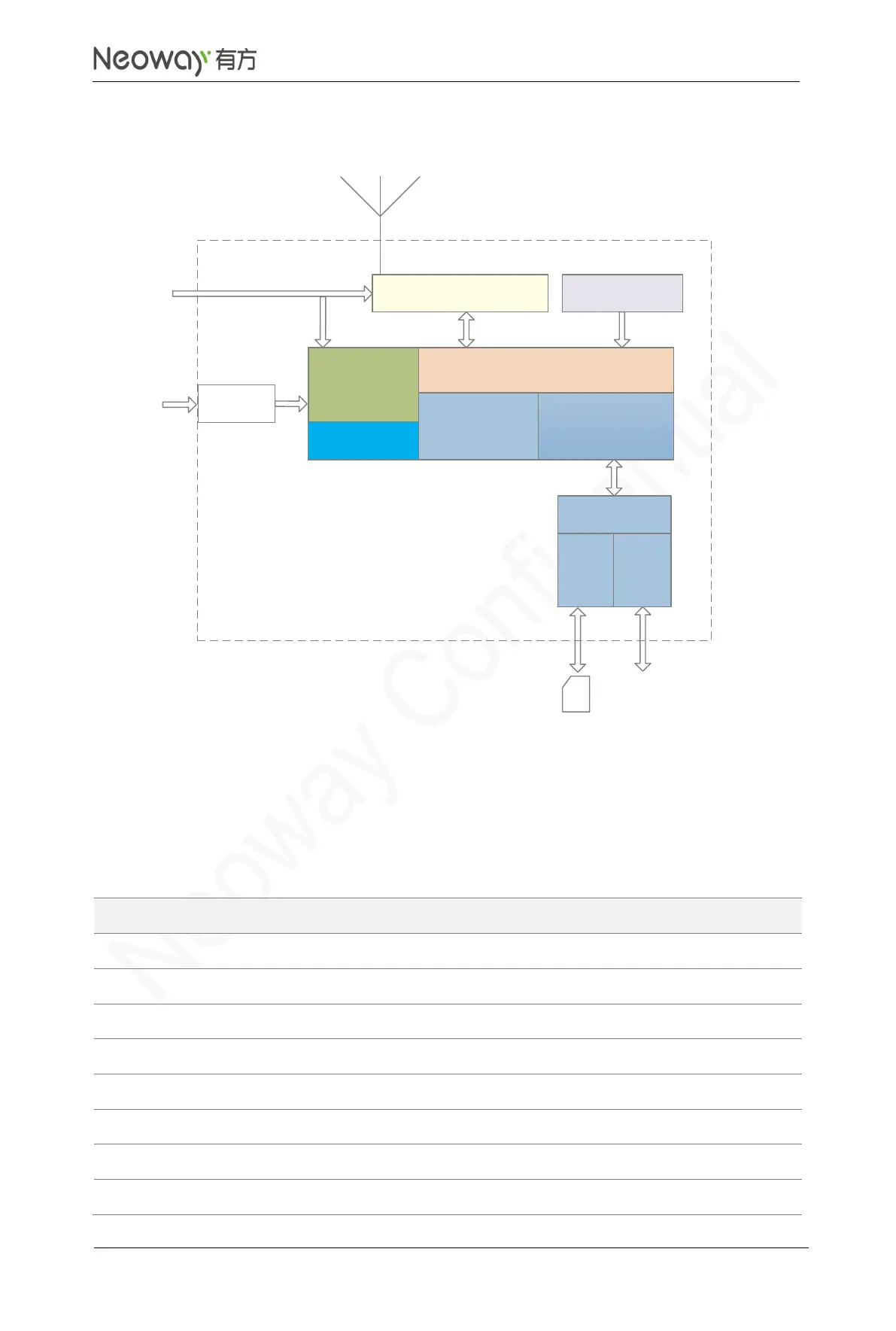

Figure 1-1 N11 Block Diagram
ON/OFF
Power
Manager
Flash
Analog
Baseband
Digital
Baseband
RF Front-end-module
26MHz
Crystal
Digital
Iterface
SIM UART
SIM
VBAT
RF transceiver
1.3 Specifications
Table 1-1 N11 Specifications
Specifications
Description
Dimensions
(15.8±0.1) mm x (13.8±0.1) mm x (2.5±0.2) mm (H x W x D)
Weight
1.3 g
Package
20-pin LGA
Operating Temperature
-40 ºC to +85 ºC
Operating Voltage
3.4 V to 4.3 V (3.9 V is recommended)
Peak Current
Max 2.0 A
Operating Current (Idle)
11 mA
Current in Sleep Mode
⚫ < 2.5 mA (on live network)
