7 Mounting N11 onto Application Board
N11 is introduced in 20-pin LGA package. This chapter describes N21 foot print, recommended PCB
design and SMT information to guide users how to mount the module onto application PCB board.
7.1 Bottom Dimensions

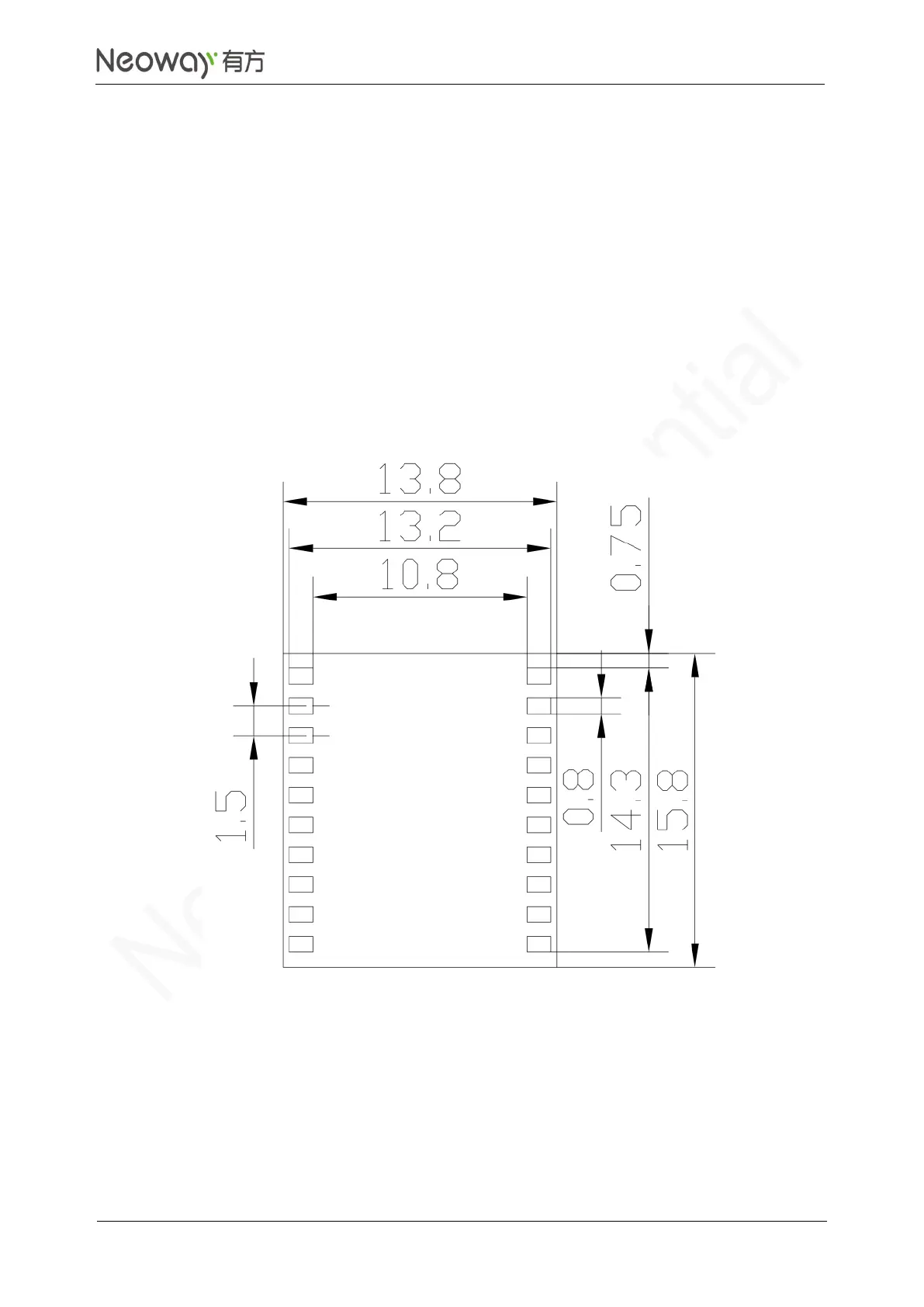

Figure 7-1 N11 bottom dimensions (Unit: mm)
