AP1.3 Channel types and Signal processing

AP1-22

AP1.3.2 Signal Processing

1. Signal processing Flow for Each Channel

Messages are processed on each channel as below.

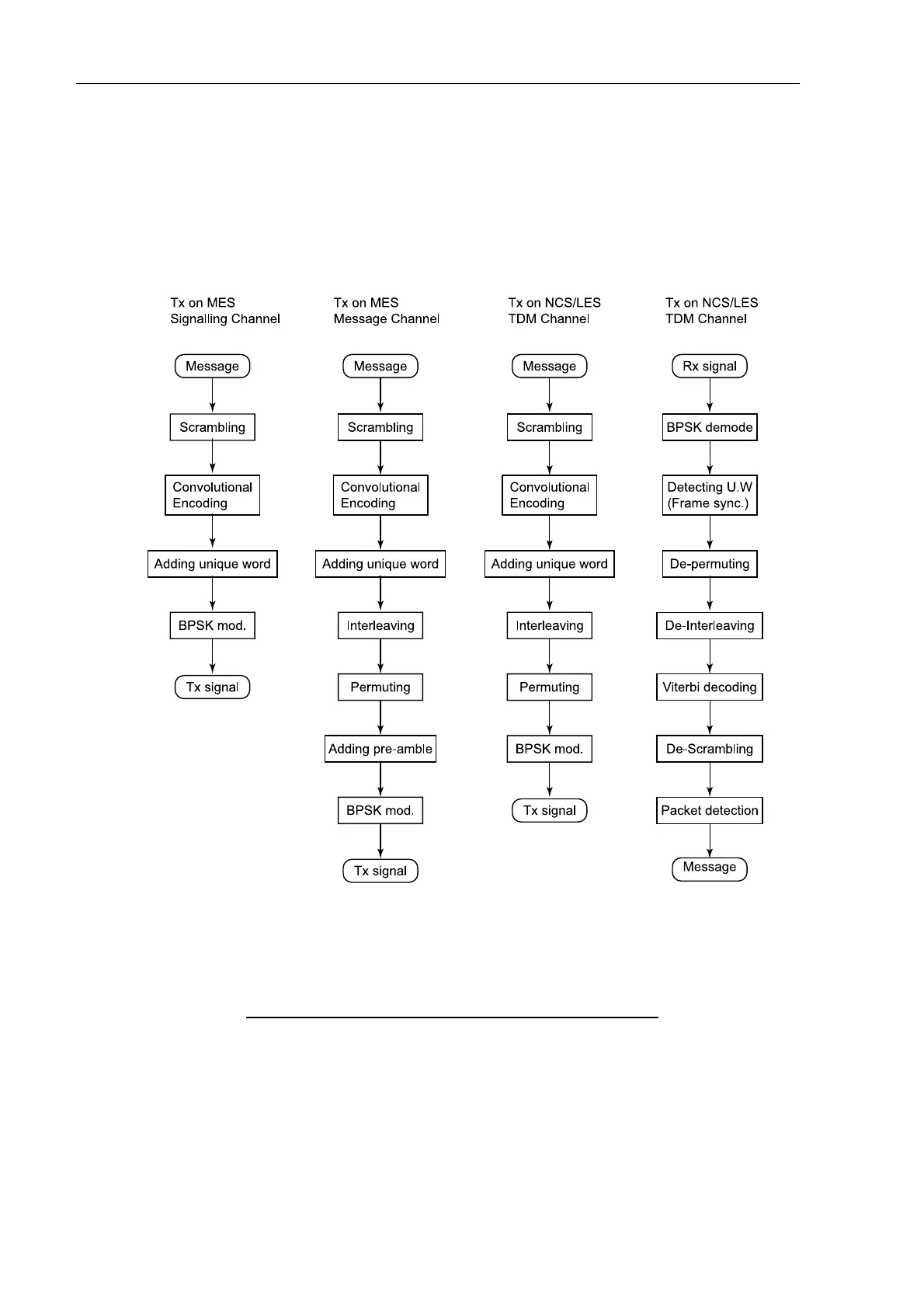

Fig. AP1.3.5 Signal processing Flow for Each Channel
