APPROVED
CHECKED
DRAWN
DWG. NO.
TITLE
2002.12.26
2002.12.26
2002.12.26

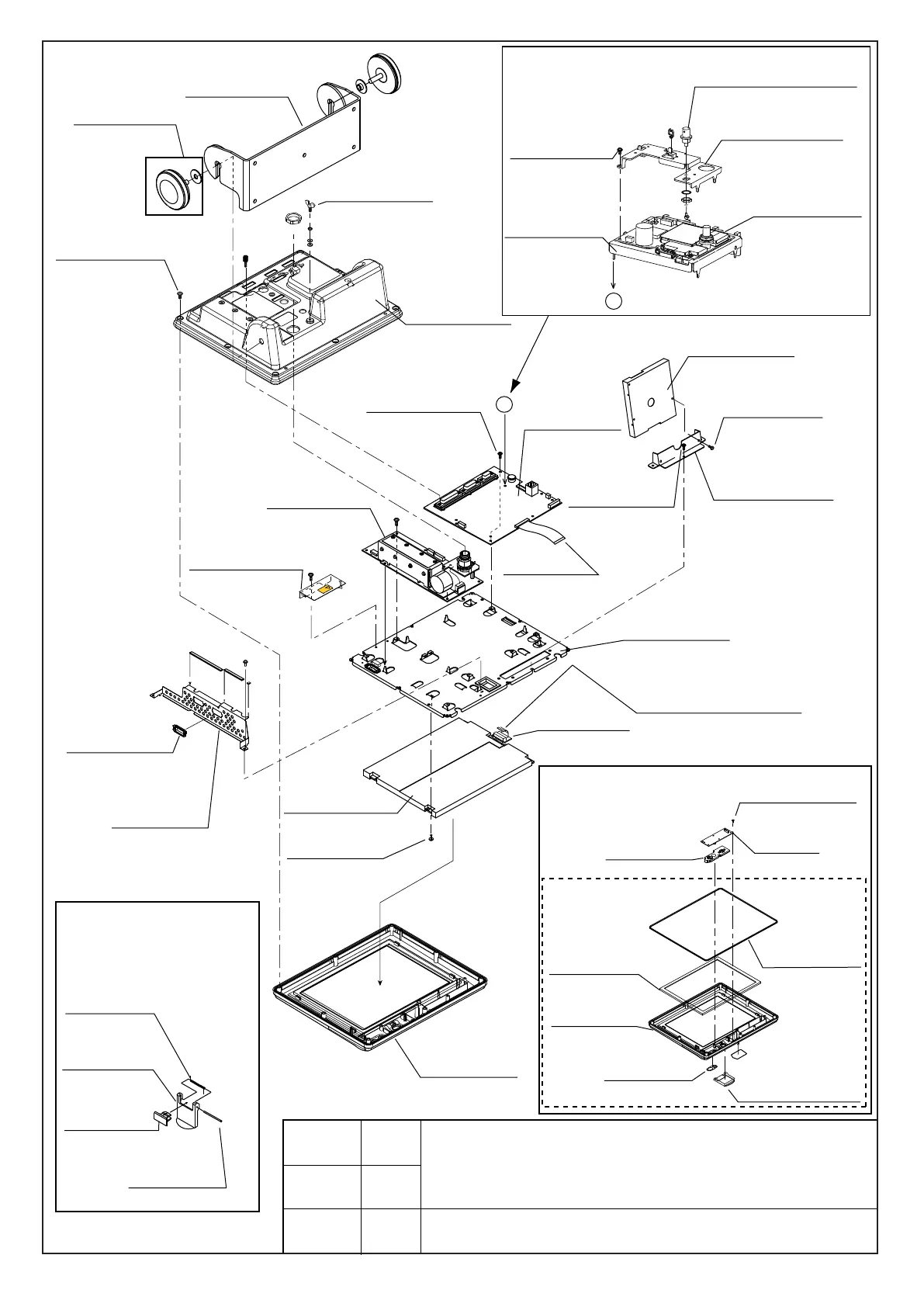

IC-215
TERMINAL UNIT
C5635-E01-A
CHASSIS
16‑018‑3101
(100‑297‑693)
.
(004‑439‑110)
INVERTERCOVER
16‑018‑3205
(100‑297‑760)
PANELASSY.
FDFIXINGPLATE
16‑018‑3102
(100‑297‑701)
FDD
JU‑226A032FC
SCREW
3X8
(000‑803‑253)
SCREW
M2.5X5
(000‑809‑433)
COVER
16‑018‑3501
(100‑297‑813)
WINGBOLT
M4X10
(000‑862‑516)
SCREW
M3X8
(000‑881‑960)
SQUAREBUSH
SB1909‑F
(000‑126‑024)
SHIELDFOAM
16‑018‑3103
(100‑297‑712)
TERM/CPUPCB
16P0209
(004‑439‑300)
FLATCABLE
SMCD26X110AD‑P1.0‑S4
BRACKETASSY.
(004‑439‑230)
KNOBASSY.
(004‑439‑650)
LCD
NL6448BC33‑46
MCNPCB
16P0226
(004‑439‑220)
(FPC)
CABLE
SML2CD30X40BD8P0.5S4
SCREW
3X8
(000‑867‑533)
SPRING
05‑085‑1013
LID
05‑085‑1011
SHFTHOLDER
05‑085‑1012
PIN
05‑085‑1014
SWPCB
16P0212
SCREW
3X8
RUBBERKEY
16‑018‑3005
PWSHEET
16‑018‑3002
PANELGASKET
16‑018‑3003
FILTER
16‑018‑3004
PANELASSY.
(004‑439‑090)
PANELASSY.
(004‑439‑640)
PANEL
16‑018‑3001
DESTRESSCOVER
ASSY.
SCREW
3X8
(000‑804‑539)
RFCON/CPUPCB
16P0208A
(004‑439‑680)
RFCHASSIS
16‑018‑3401
(100‑297‑790)
CONNECTORBOARD
16‑018‑3402
(100‑297‑801)
CONNECTORASSY.
H.FL‑LP‑BNC‑BJL=60
SCREW
M3X8
(000‑881‑404)
A
A
RFCHASSISASSY.
DESTRESSCOVERASSY.
(005‑950‑570)
Nera C
D - 1
