Nera Inmarsat-c - Page 52

3.1 Terminal unit, IC-215
3-2
[
KEY BOARD
]

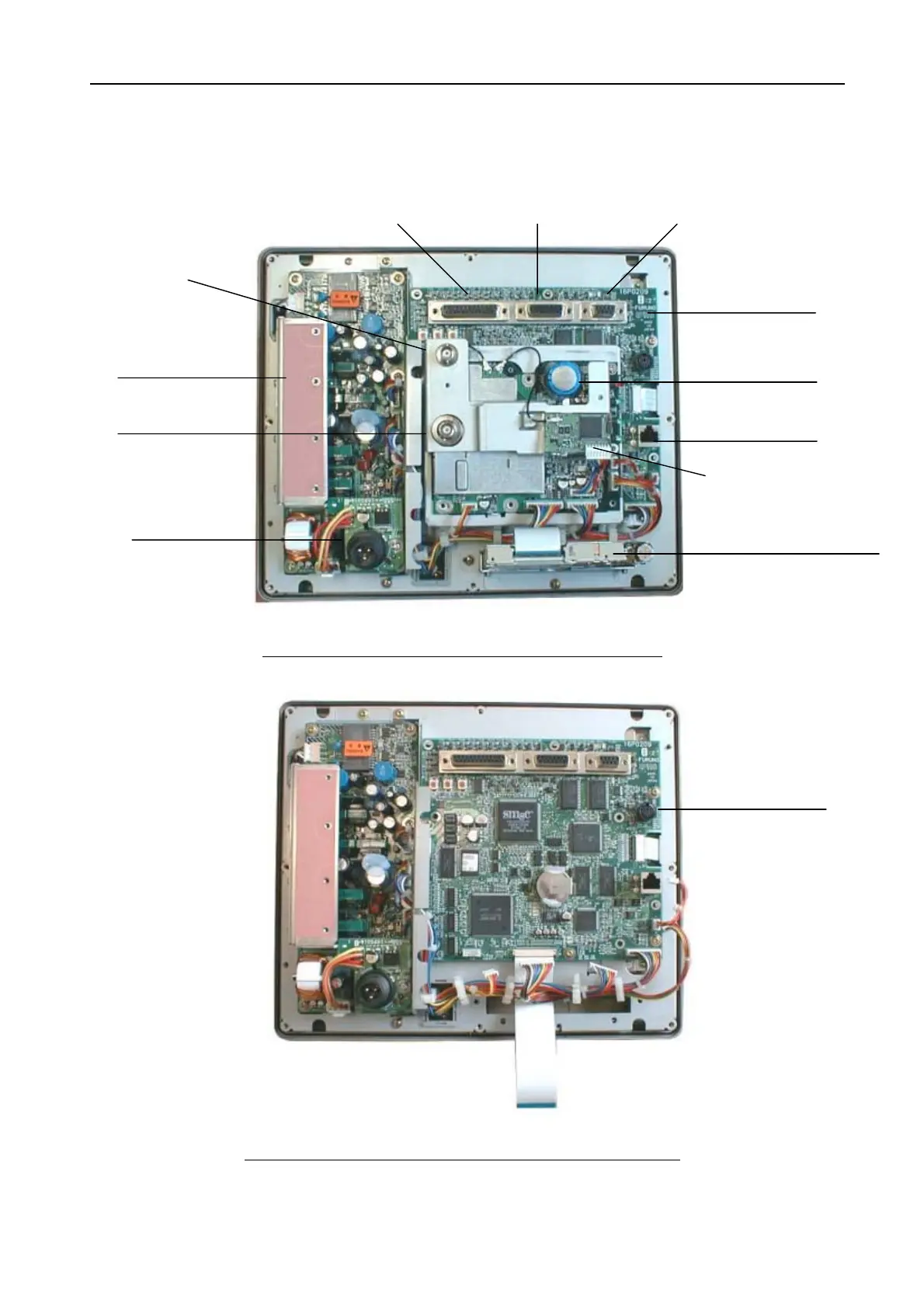

Fig.3.1.3 Boards in Terminal unit with cover removed
Fig.3.1.4 Terminal unit with RF CON/CPU board removed
PWR board
(16P0211)
PWR C
(16P0214)
RF CON/CPU board
(16P0208A)
FDD
(JU-226A032FCK2149)
TERM CPU board
(16P0209)
[
DTE
]
[JUNCTION]
[PRINTER]
[D-GPS]
(L-band)
[ANT]
[LAN]
(10BASE-T)
INT GPS (Option)
(GN-79)
