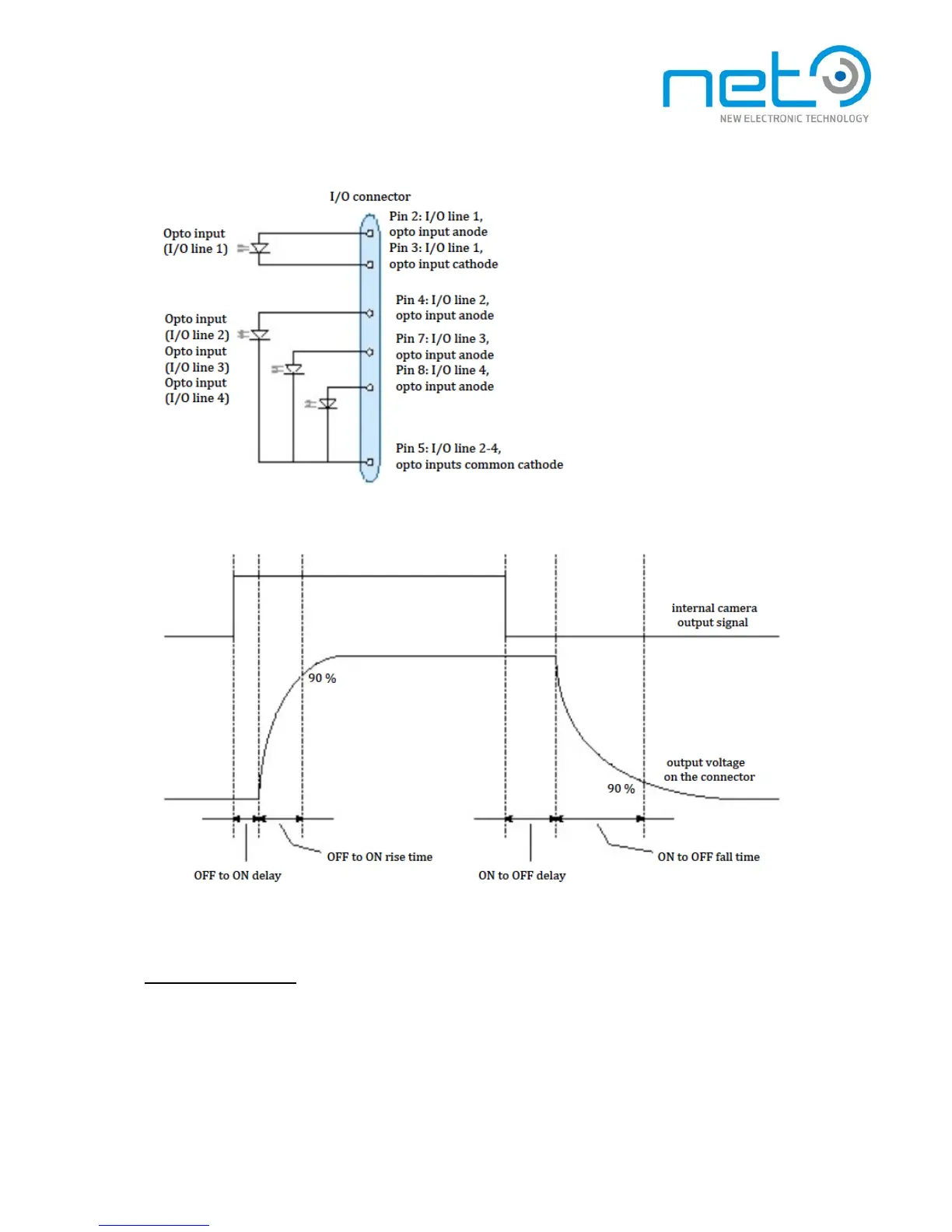

Diagram of the internal optocoupler inputs connections
CORSIGHT output optocoupler timing diagram
Optocoupler outputs
The CO RISGHT camera is equipped with four optically isolated output lines. One output opto-
coupler is fully independent, the other three are connected with a common collector (S ec tio n “ I/O
connector”) due to limited number of pins on the I/O connector.
After power up, the optocoupler outputs are in high impedance state and they remain in that
state until reconfigured from the software interface. Whenever the optocoupler output is discon-
