6.1 Signaling Groups
The SG is the first place an incoming call will reach the UX2000. The Signaling group will direct the call to
the Routing Table as shown below:

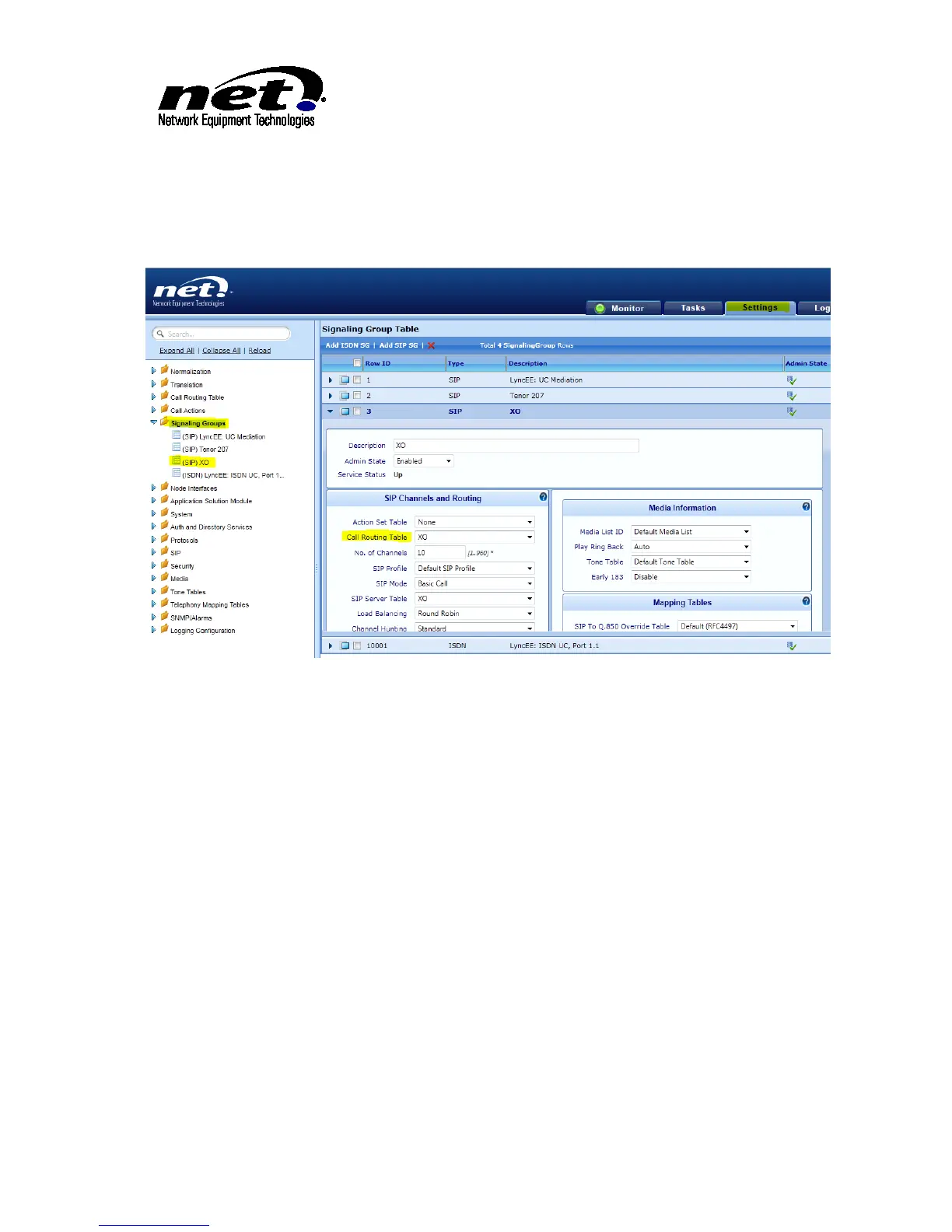

Figure 21 Signaling Group
6.2 Call Routing Table
The Call Routing Table will send the Called and Calling Party information elements to a Translation Table
so that they can be modified if required to match the destination systems format. Once the translations
have been completed the Route Table will then route the call to the applicable SG for the destination
system.
