NetApp DS224C Service Guide

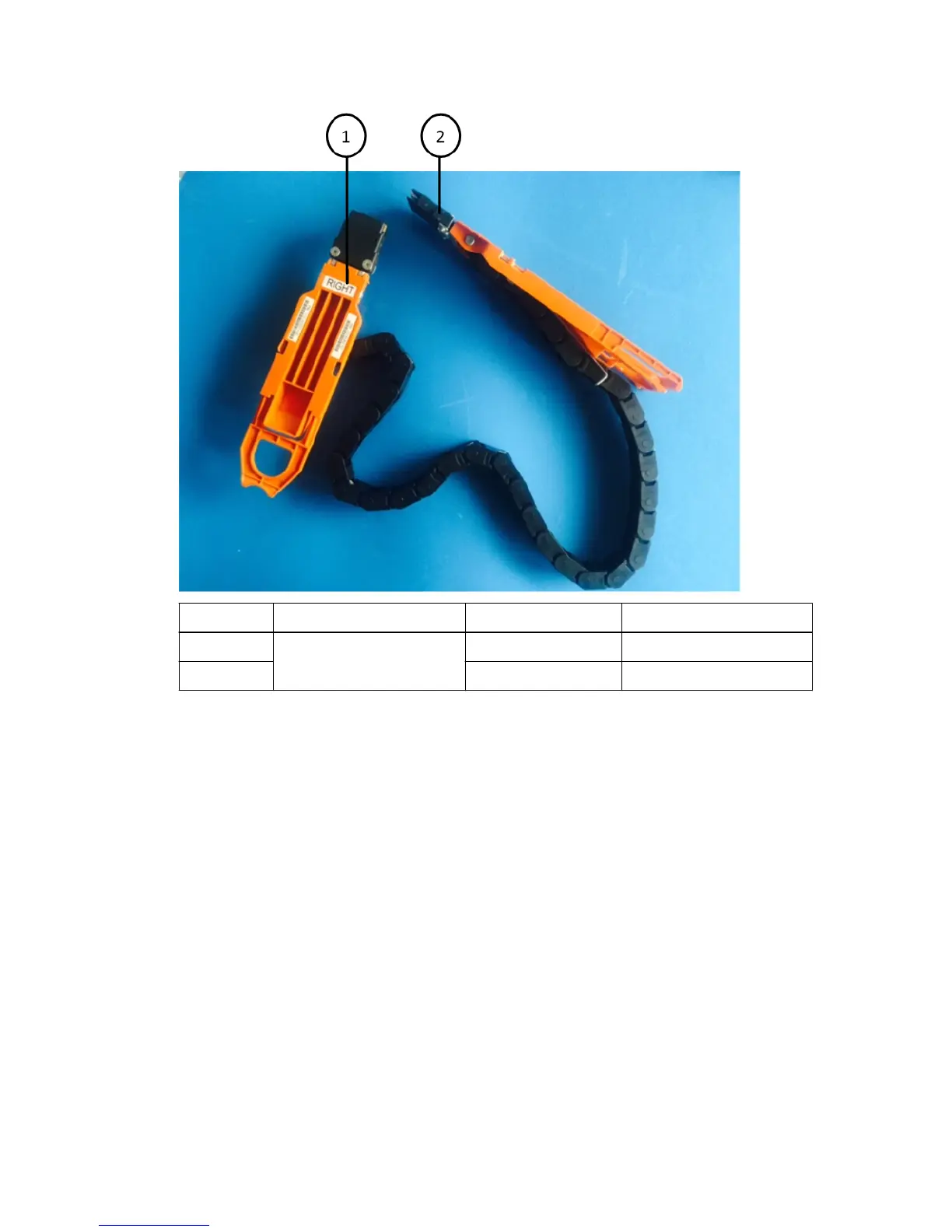

Callout Cable chain Connector Connects to
1 Right Horizontal Drive drawer
2 Vertical Midplane
Steps
1. Follow these steps to attach the left cable chain:
a. Locate the horizontal and vertical connectors on the left cable chain and the corresponding
horizontal and vertical brackets inside the enclosure.
b. Align both cable chain connectors with their corresponding brackets.
c. Slide the cable chain's horizontal connector under the guide rail on the horizontal bracket, and
push it in as far as it can go.
The figure shows the guide rail on the left side for the second drive drawer in the enclosure.
Replacing a drive drawer in a DS460C disk shelf |
33

NetApp DS224C Specifications

General

Form Factor	2U
Drive Bays	24
Drive Type	2.5-inch SAS
Maximum Raw Capacity	368 TB
Connectivity	12 Gbps SAS
Power Supply	Redundant power supplies
Cooling	Redundant fans
Storage Type	HDD and SSD
Compatibility	NetApp FAS and AFF systems
