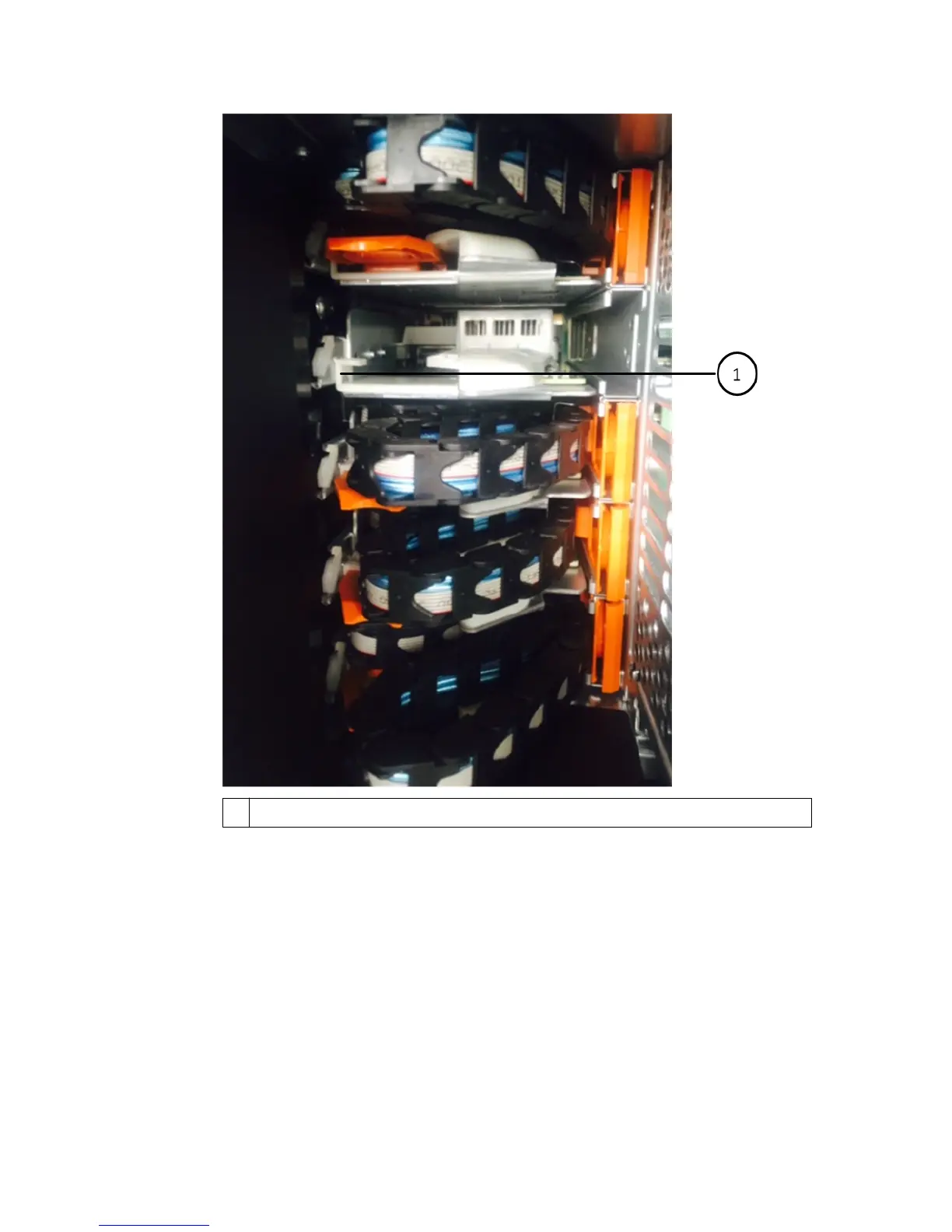

1 Guide rail
Caution: Risk of equipment malfunction — Make sure to slide the connector underneath
the guide rail on the bracket. If the connector rests on the top of the guide rail, problems
might occur when the system runs.
d. Slide the vertical connector on the left cable chain into the vertical bracket.
e. After you have reconnected both ends of the cable chain, carefully pull on the cable chain to
verify that both connectors are latched.
Attention: Risk of equipment malfunction — If the connectors are not latched, the cable
chain might come loose during drawer operation.
2. Reinstall the left fan module.
3. Follow these steps to reattach the right cable chain:
a. Locate the horizontal and vertical connectors on the cable chain and their corresponding
horizontal and vertical brackets inside the enclosure.
34
| Service Guide for DS460C, DS224C and DS212C Disk Shelves
