NETGEAR 7550 User Manual

Business HSI Basic Installation
NETGEAR 7550
Technical Reference Guide v2.0
8
Physical Connections
Overview
The connections section of this document describes the physical
connections required prior to configuration of a NETGEAR 7550
gateway.

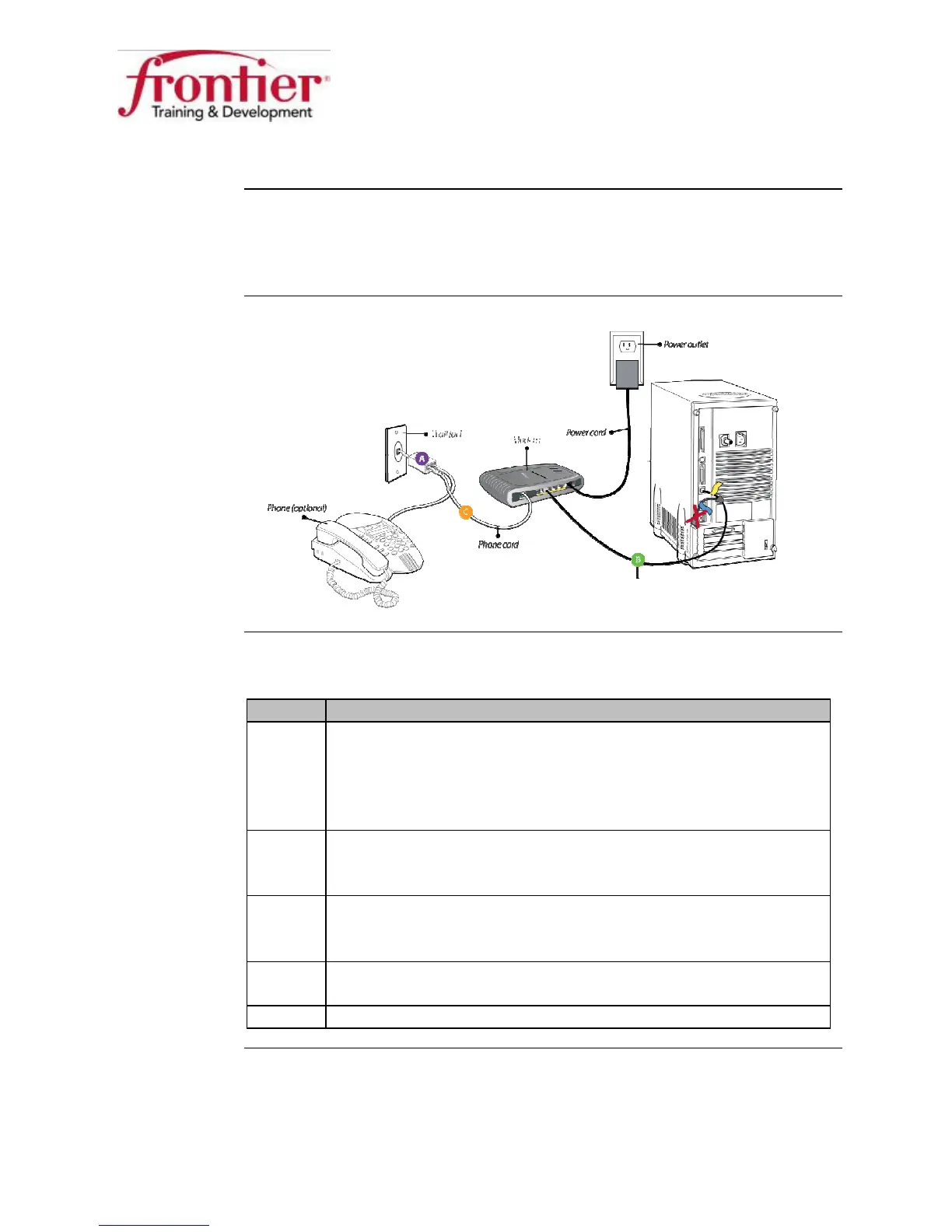

Connection
diagram
Connect the
gateway
Follow these steps to properly connect the gateway prior to configuration:
Step Action
1
Install microfilters (A)
on all of the occupied phone jacks or
run a dedicated line directly to the phone jack from the NID.
Note: Microfilters vary. Use a phone line splitter with a single-
port microfilter or a dual-port microfilter (as shown).
2
Connect the Ethernet cable (B)
between the computer and
gateway.
3
Connect the RJ
-
11 phone cable (C)
between the phone jack (or
unfiltered side of microfilter) and gateway.
4
Connect power
to the gateway.
5
Continue to the next section
Ethernet cable

NETGEAR 7550 Specifications

General

Model Number	7550
Category	Modem
DSL Standards	ADSL 2+
Wireless Standard	802.11n
Wireless Speed	Up to 300 Mbps
LAN Ports	4
Device Type	Modem
Security	WPA, WPA2
Firewall	SPI
