NETGEAR EAX12 User Manual

Side panel
The side panel of the extender provides a WPS button, Reset button, and Ethernet port.

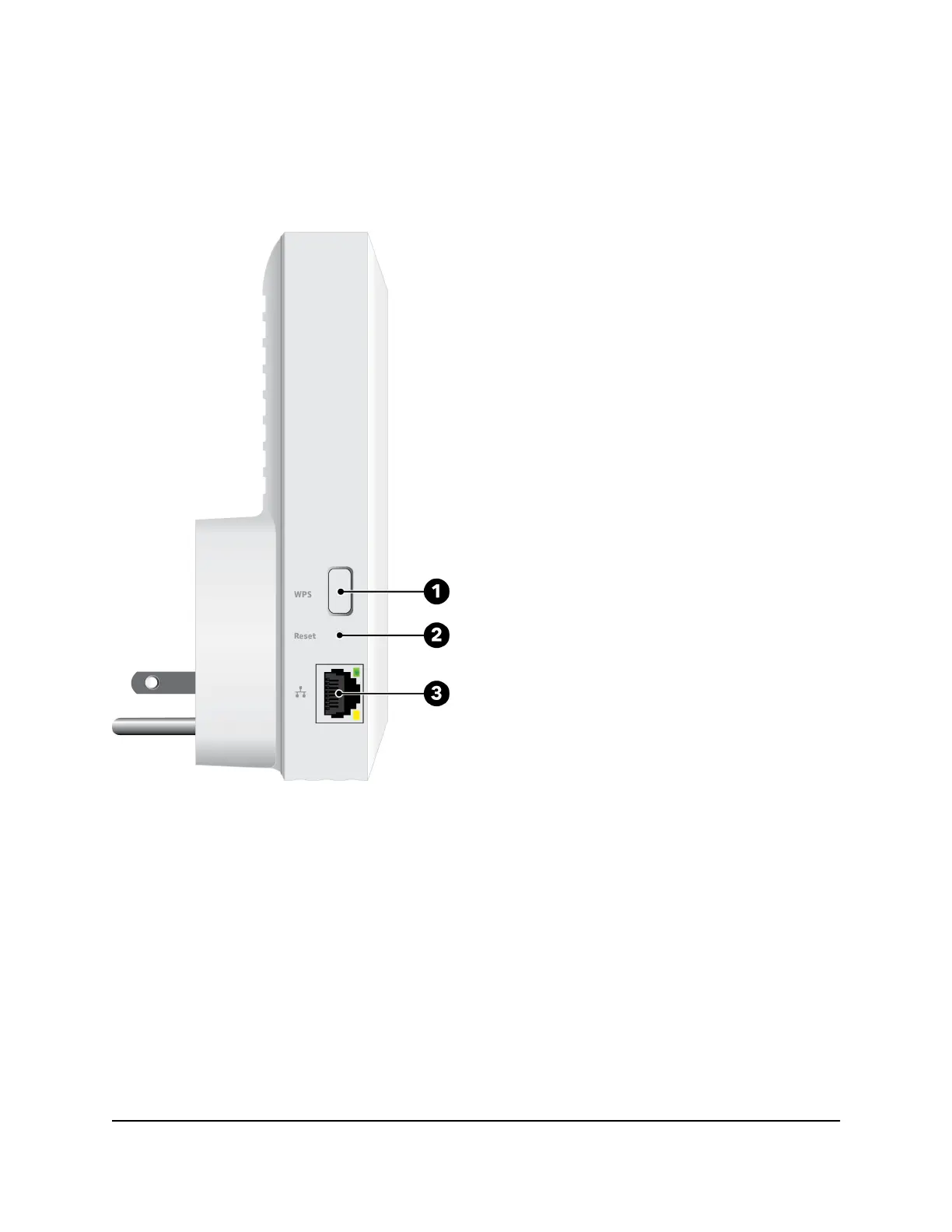

Figure 3. Back panel
The side panel contains the following components:
1. WPS button. Pressing the WPS button allows the extender to connect to your existing
WiFi network through WPS. You can also connect WPS-enabled devices to the
extender using the WPS button.
2. Reset button. Pressing this button resets the extender. If the Reset button is pressed
for at least seven seconds, the Power LED blinks amber, and the extender returns
to its factory settings.
3. Ethernet port. Use an Ethernet cable to connect the Gigabit Ethernet RJ-45 LAN
port to a device that has a LAN Ethernet port.
User Manual9Overview
AX1600 4-Stream WiFi 6 Mesh Extender

NETGEAR EAX12 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	400 Mbit/s
Security algorithms	128-bit AES, WPA3-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE)	No
Placement	Wall
Product color	White
Housing material	Plastic
Antenna type	Internal
Antennas quantity	2
Number of products included	1 pc(s)
Package type	Box
Processor frequency	880 MHz
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	52.3 mm
Width	68.4 mm
Height	149 mm
Weight	490 g
