S350 Series 24-Port (PoE+) and 48-Port Gigabit Ethernet Smart Managed Pro Switches
Configure Switching User Manual121

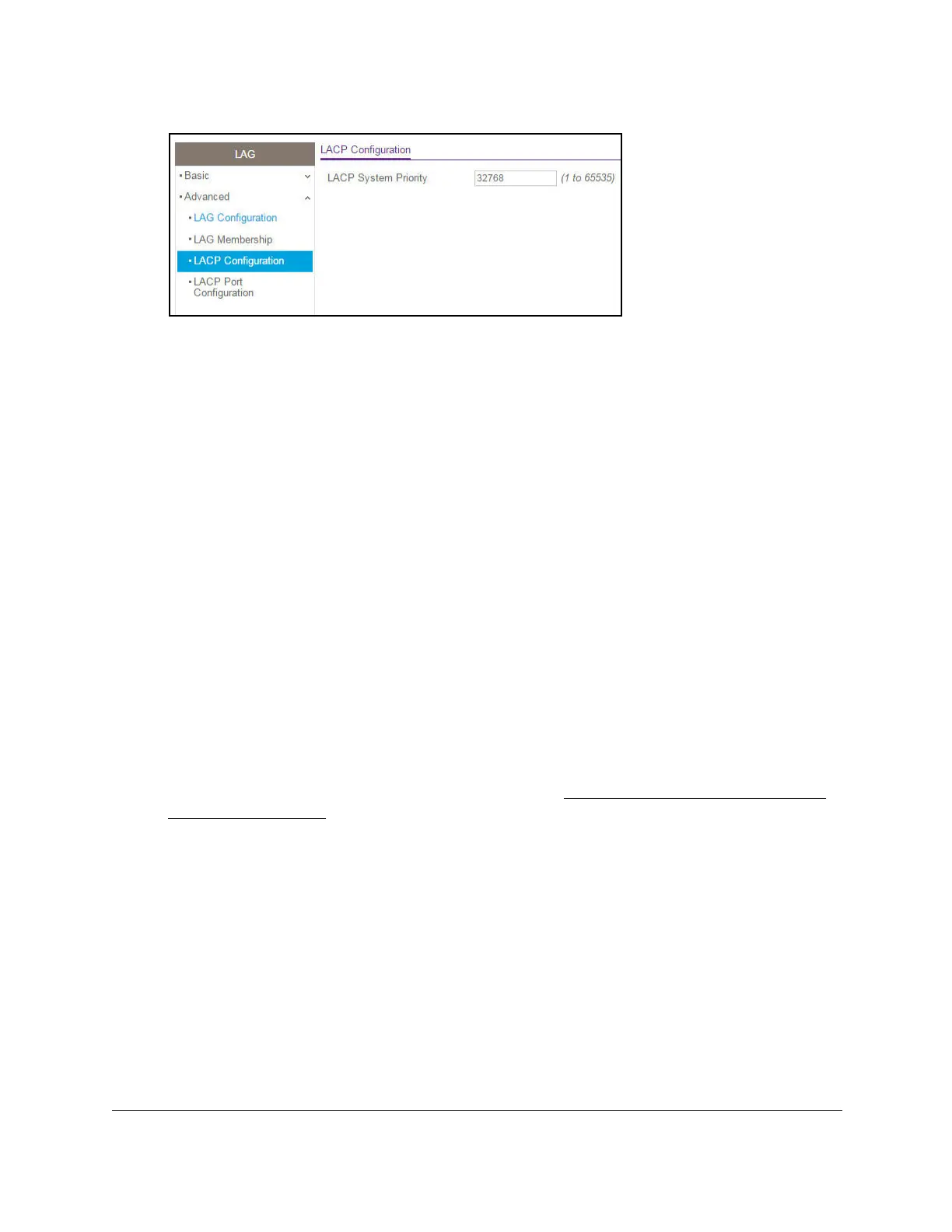

6. In the LACP System Priority field, specify the switch’s link aggregation priority relative to
the devices at the other ends of the links on which link aggregation is enabled.
A higher value indicates a lower priority. You can change the setting globally by
specifying a priority from 1 to 65535. The default value is 32768.
7. Click the Apply button.
Y
our settings are saved.
Set the LACP Port Priority Settings
The LACP port configuration page is used to configure the LACP priority value for the selected
port and the administrative LACP time-out value.
To configure LACP port priority settings:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see
Discover or Change the Switch IP
Address on page 12.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is
password.
The System Information page displays.
5. Select Switching> LAG >
Advanced > LACP Port Configuration.
