Configure Quality of Service
170
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2
10. From the Assign Queue menu, select the queue to which packets of this policy class must
be assigned.
This is an integer value in the range 0 to 7.

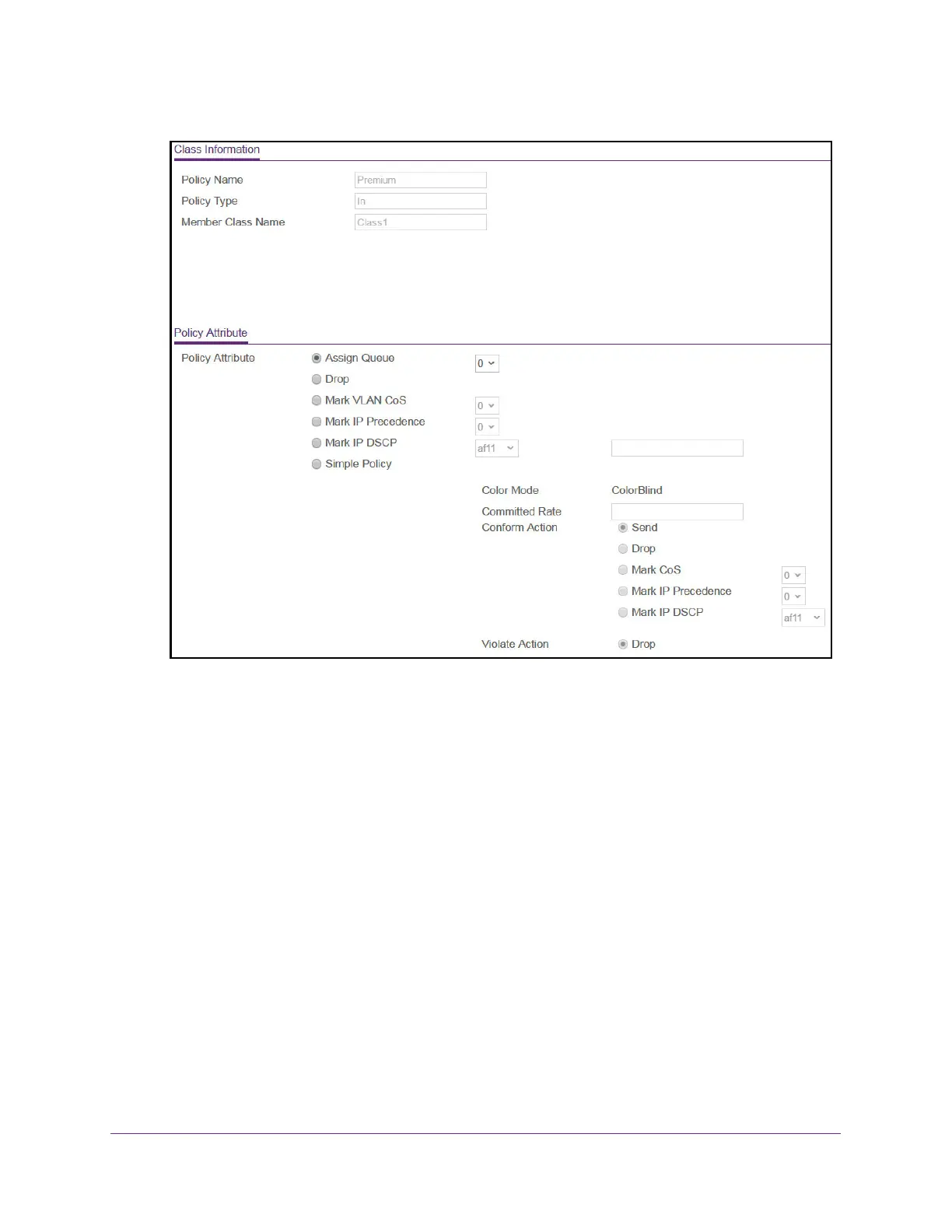

11. Configure the policy attributes:
• Drop. Select this radio button to require each inbound packet to be dropped.
• Mark VLAN CoS. Select this radio button to specify the VLAN priority, which you must
select from the menu. The VLAN priority is expressed as an integer value in the range
from 0 to 7.
• Mark IP Precedence. Select this radio button to require packets to be marked with an
IP precedence value before being forwarded. You must select an IP precedence
value from 0 to 7 from the menu.
• Mark IP DSCP. Select this radio button to require packet to be marked with an IP
DSCP keyword code, which you must select from the menu. The menu includes
Other as a selection, which lets you enter an IP DSCP value from 0 to 63. The DSCP
value is defined as the high-order 6 bits of the Service Type octet in the IP header.
• Simple Policy. Select this radio button to define the traffic policing style for the class.
A simple policy uses a single data rate and burst size, resulting in one of two
outcomes: conform or violate. You must define the policy as described in the next
step.
