Chapter 2
Physical Description
This chapter describes the hardware features of the NETGEAR GS748T Gigabit Smart Switch.
Topics include:
• Front and back panels
• 10/100/1000 Mbps auto-sensing RJ-45 ports
• SFP GBIC Module bay
• LED descriptions
• Reset button
• Factory defaults button
Front and Back Panels

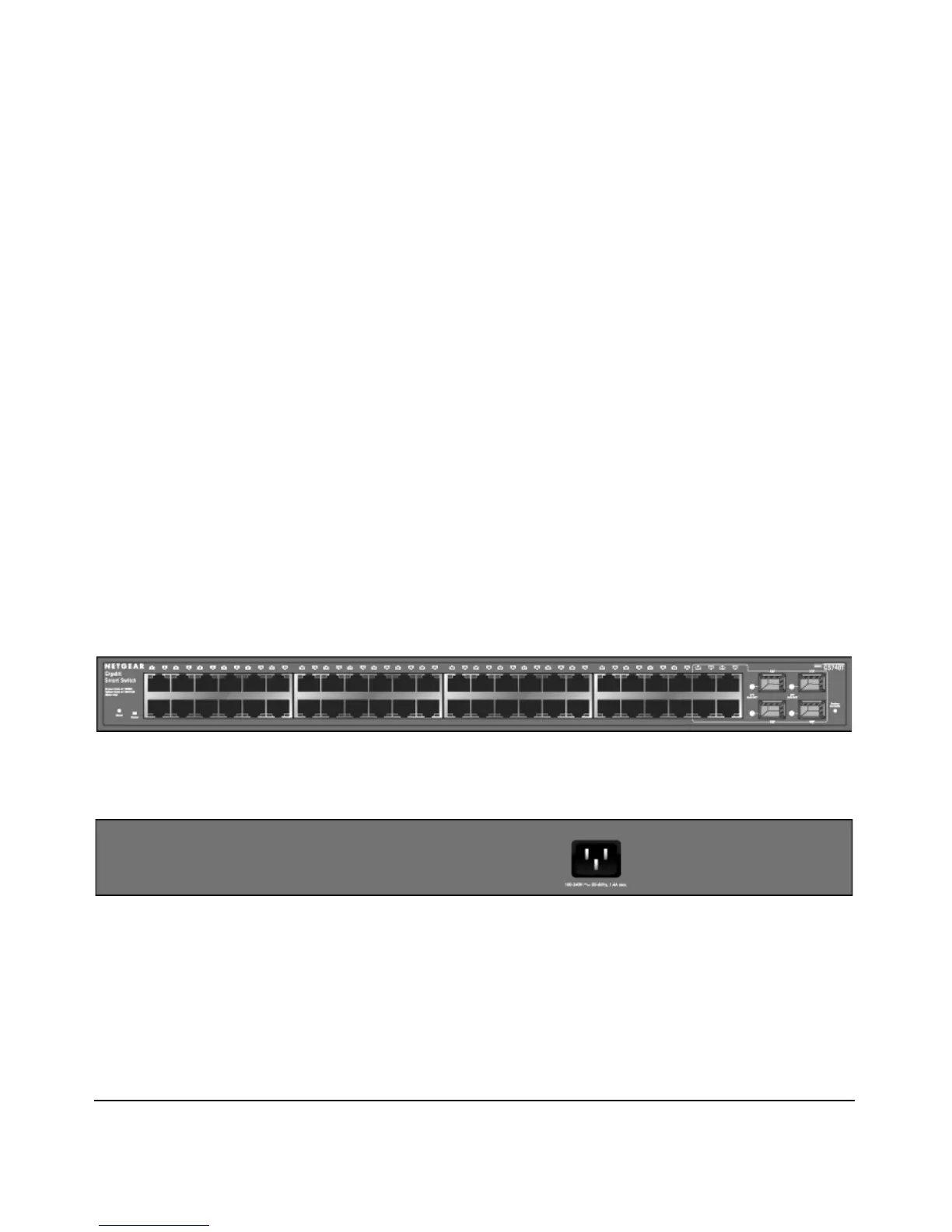

Figure 2-1 and Figure 2-2 show the key components on the front and back panels of the
NETGEAR GS748T Gigabit Smart Switch.
The front panel contains RJ-45 jacks with LEDs and 4 SFP GBIC module bays. The rear panel has
a standard AC power receptacle for accommodating the supplied power cord.
Figure 2-1
Figure 2-2
